OMRON A6H4102 DIP Switch
This ultra-low profile surface-mount DIP switch features a tape-sealed design with 4 poles, a contact rating of 25mA at 24VDC, and withstands 1,000 mechanical and electrical operations. Designed for high-density PCB mounting, it operates within temperatures from -40°C to 85°C and has an enclosure rating equivalent to IP40. It offers reliable performance in compact electronic applications, with optional washable models supporting moisture resistance. Its reduced mounting space by 63% makes it ideal for miniaturized circuits requiring precise manual configuration.
OMRON A6H4102 DIP Switch Specifications:
- Switching Capacity: 26 mA at 24 VDC
- Electrical Life: 1,000 operations minimum
- Mechanical Life: 1,000 operations minimum
- Operating Temperature: -40°C to 85°C
- Enclosure Rating: IP40 equivalent
- Contact Resistance: 200 mΩ max. (initial)
- Insulation Resistance: 100 MΩ min. at 100 VDC
- Dielectric Strength: 300 VAC for 1 min between terminals
- Mounting Style: Surface-mount, SMT
- Dimensions (Width): 8.85 mm for 6 poles, 11.39 mm for 8 poles, 13.93 mm for 10 poles
- Application: PCB manual configuration, compact electronic devices
- RoHS Compliant: Yes
- Sealed Tape: Available for washable models

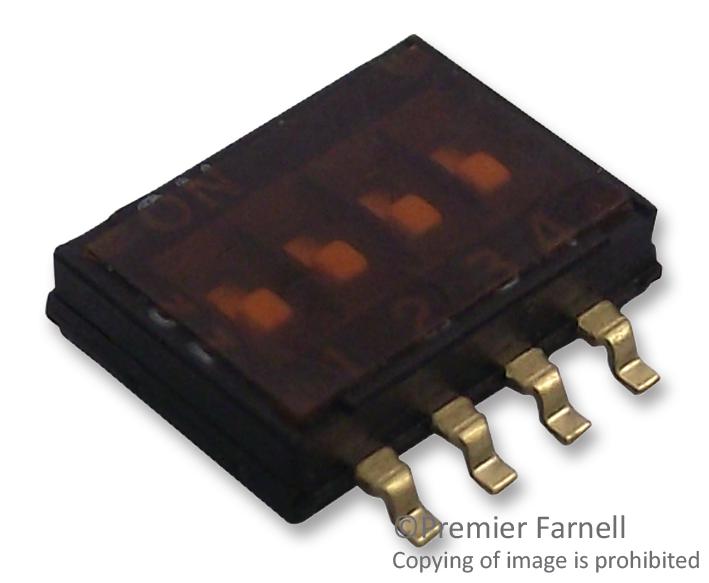

Buy the Omron Series A6H DIP Switch: 4-Pole Surface Mount Compact Switch
Experience reliable manual configuration with the Omron A6H DIP switch. Its ultra-low profile design ensures minimal PCB footprint while offering robust performance for high-density electronic applications. Suitable for SMT mounting, with models supporting washing, it provides consistent contact ratings of 25mA at 24VDC and durability of 1,000 operations. Perfect for compact circuit boards in industrial, automation, or consumer electronics, this switch ensures easy installation, long-term stability, and compliance with RoHS standards for environmentally conscious manufacturing.
Get Omron A6H4102 today—built for precision, compact design, and long-lasting reliability in electronic assemblies.
Frequently Asked Questions
Where can I buy OMRON A6H4102?
You can click on the BUY or RFQ button to purchase A6H4102 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A6H4102?
You can download the A6H4102 datasheet or visit the OMRON website for support.
Who is the manufacturer of A6H4102?
OMRON
