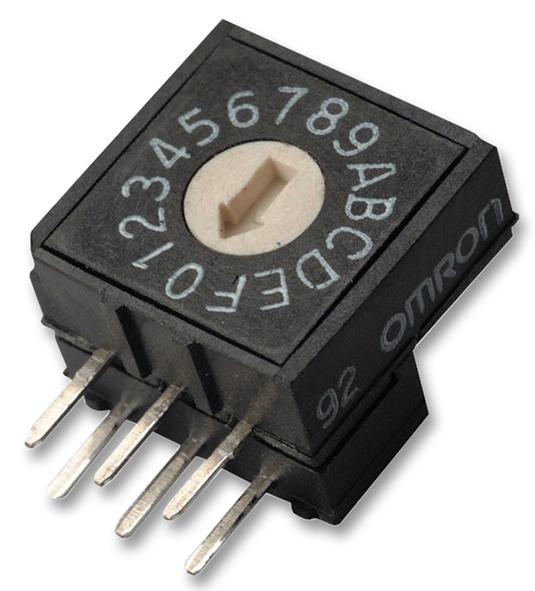

OMRON A6RV162RF Rotary Control Switch
The rotary dip switch offers versatile switching options with multiple positions, ideal for electronic control and programming. It features sealed construction with an O-ring that prevents dust ingress, ensuring reliability. Designed with a variety of terminal arrangements, including flat and extended-shaft models, it supports different circuit configurations. Rated for operation between -25°C to 80°C, this switch has an insulation resistance of minimum 100 MQ at 250 VDC and an electrical life of 5,000 steps. Suitable for precise electronic applications requiring robust and reliable switching.
OMRON A6RV162RF Rotary Control Switch Specifications:
- Ratings/Characteristics Output Codes
- Rating D5 mA at 24 VDC
- Ambient operating temperature: -25° to 80°C
- Operating Humidity: 35% to 95%
- Insulation Resistance: Minimum 100 MQ at 250 VDC
- Contact Resistance: Maximum 200 mΩ (initial)
- Dielectric Strength: 250 VAC for 1 minute
- Electrical Life: 5,000 steps minimum
- Operating Torque: Max. 1.96 x 10⁻⁶ Nm
- Weight: 4x1 top-actuated: 0.64 g, 3x3 top-actuated: 0.62 g, 4x1 side-actuated: 0.8 g, 3x3 side-actuated: 0.83 g
- Models include top-actuated, side-actuated, flat, and extended-shaft types
- Physical dimensions vary; typical dimensions include approximately 19 mm height, terminal arrangements of 4x1 or 3x3
- RoHS compliant
Buy the Buy Omron Rotary DIP Switch Part Number A6RV162RF Online
Purchase the Omron Rotary DIP Switch SeriesA6RV162RF online now to benefit from high-quality, durable switching components perfect for control systems and electronic devices. With sealed construction and multiple configurations, these switches ensure reliable operation in various environments. Their versatility supports different terminal arrangements and extended-shaft options, making them suitable for precise electronic control and programming. Enjoy fast, secure delivery and elevate your project’s performance with trusted Omron quality, designed for industrial and technical applications.
Order your Omron SeriesA6RV162RF rotary dip switch today and enhance your electronic projects with reliable and versatile switching solutions.
