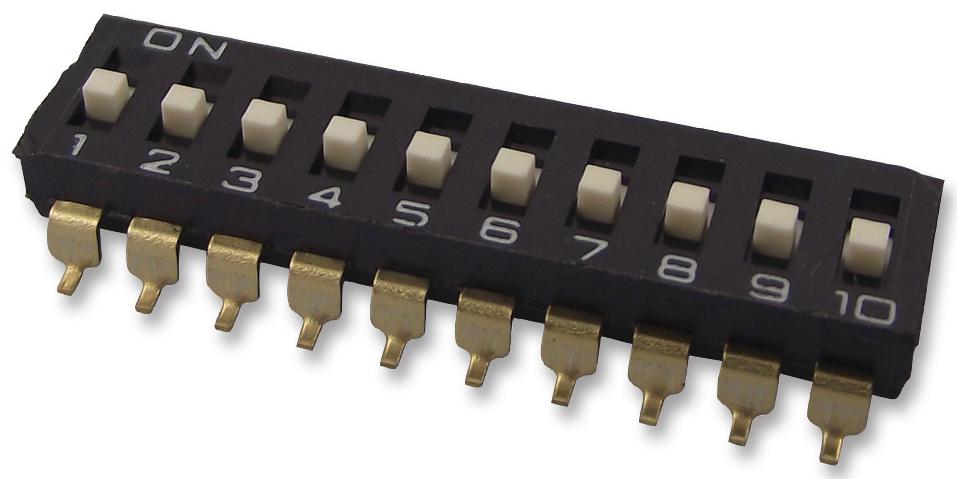

OMRON A6S0104H DIP switch
The A6S-H series is a reliable DIP switch designed for configuring electronic devices, featuring multiple poles and actuator types. It offers enhanced solder heat resistance up to 260°C, making it suitable for reflow soldering. The switches provide high durability, with mechanical and electrical life cycles of 1,000 operations. Available in flat and raised actuator styles, the switches are RoHS compliant, with sealed models for washability. Ideal for circuit board configuration, they feature precise dimensions, high insulation resistance, and contact resistance specifications for stable operation in various industrial applications.
OMRON A6S0104H DIP switch Specifications:
- Switching capacity: 25 mA at 24 VDC, 10 YA at 3.5 VDC
- Ambient operating temperature: -20°C to 70°C, 60% R.H.
- Insulation resistance: 100 MQ min. at 250 VDC
- Contact resistance: 200 mΩ max.
- Dielectric strength: 500 VAC for 1 min.
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: 300 m/s² min. (approx. 30G)
- Mechanical life: 1,000 operations
- Electrical life: 1,000 operations
- Operating force: 0.29 N min. (30 gf)
- Dimensions vary with model, typical pole dimensions from 3.48 mm to 26.34 mm
- Weight: 0.25 g to 0.87 g depending on poles
- Soldering temperature: 260°C max. for reflow, manual at 350°C for 3s
- Sealed and washable models available with seal tape, RoHS compliant.
Buy the Omron A6S-H – Reliable DIP Switches for Industrial Applications
Experience the reliability of Omron DIP switches with the A6S-H series, offering multiple poles, sealed options, and enhanced heat resistance up to 260°C. Designed for durable and precise circuit configuration, these switches are RoHS compliant and suitable for reflow soldering. Whether for industrial electronics or device manufacturing, order online to benefit from quick delivery, competitive pricing, and technical support. Equip your projects with proven quality DIP switches for consistent and secure operation in demanding environments.
Order your Omron Series A6S-H DIP Switch today and enhance your circuit configurations with dependable and heat-resistant switches designed for industrial use.
Frequently Asked Questions
Where can I buy OMRON A6S0104H?
You can click on the BUY or RFQ button to purchase A6S0104H from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A6S0104H?
You can download the A6S0104H datasheet or visit the OMRON website for support.
Who is the manufacturer of A6S0104H?
OMRON
