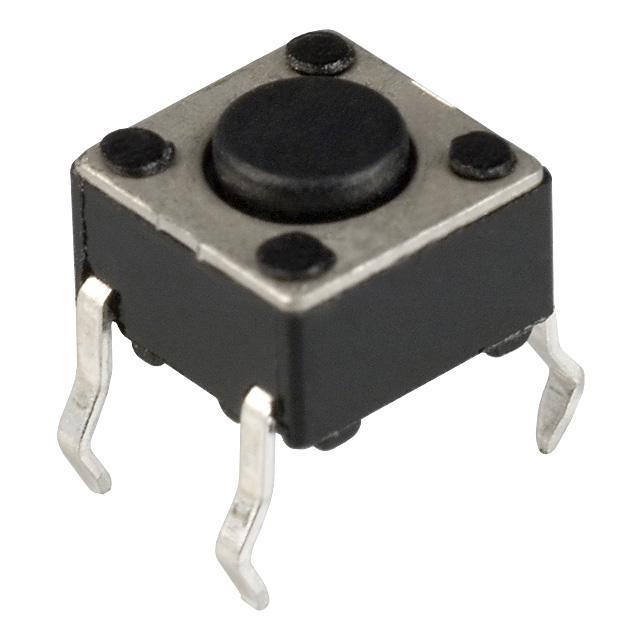

OMRON B3F1020 Tactile Switch
This 6x6 mm tactile switch provides reliable tactile feedback with a 100 g operating force, designed for PCB mounting. Its compact size makes it suitable for electronic devices such as communication equipment, measuring instruments, TVs, and VCRs. The switch features gold-plated contact models to enhance contact reliability and resistance to corrosive environments. Available in tape-packed units in multiple configurations, including with or without ground terminals, it offers high durability with an extended mechanical and electrical service life, ideal for space-constrained and high-reliability applications.
OMRON B3F1020 Tactile Switch Specifications:
- Size: 6x6 mm
- Switch height: 4.3 mm
- Operating force: 100 g
- Contact resistance: 100 mΩ max.
- Insulation resistance: 100 MΩ min.
- Dielectric strength: 500 VAC for 1 min
- Bounce time: 5 ms max.
- Vibration resistance: 10-55 Hz, 1.5 mm amplitude, 30-60 sec
- Shock resistance: Approx. 100 G
- Temperature range: -25°C to 70°C
- Contact form: SPST-NO
- Switching capacity: 5 to 24 VDC, 50 mA
- Life expectancy: 1,000,000 operations minimum
- Material: Gold-plated contacts, thermoplastic body
- Package: Taped radial, 1000 units per box
- RoHS compliant
Buy the Omron Series B3F Tactile Switch: B3F1020
Buy the Omron Series B3F tactile switch in 6x6 mm size with 100 g operating force online today. Featuring gold-plated contacts for enhanced reliability, resistance to corrosion, and long life. Perfect for PCB mounting in communication devices, measurement instruments, and consumer electronics. Ensure your projects' durability and performance with this compact, high-quality tactile switch. Available in tape packaging of 1,000 units, it guarantees quick, efficient procurement and seamless integration into your assembly process.
Order your Omron Series B3F tactile switch with 6x6 mm size and gold-plated contacts today and ensure reliable performance in your electronic projects.
