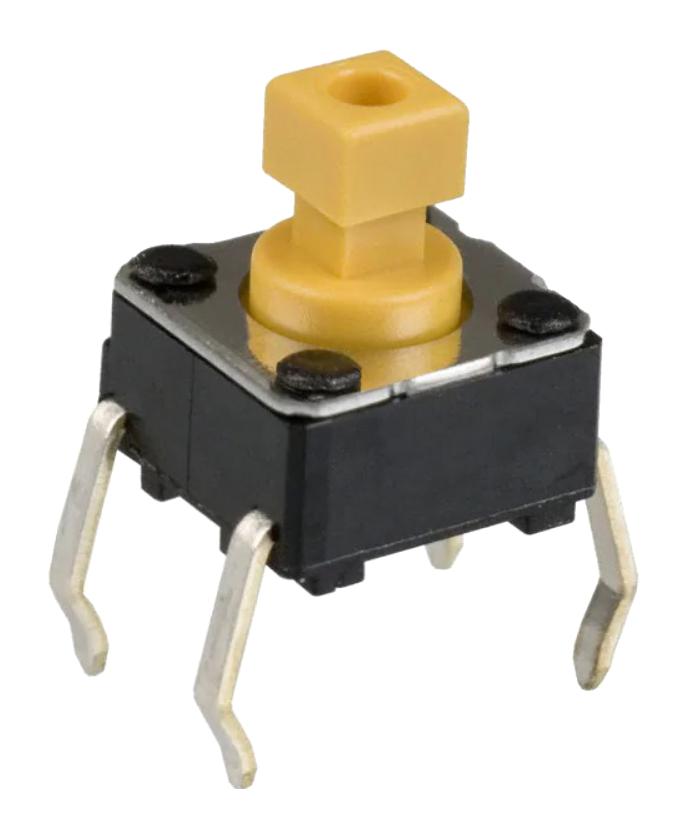

OMRON B3F1052 Tactile Switch
This tactile switch is designed for PCB mounting with vertical operation, featuring dimensions of 6x6 mm and an operating force of 150 gf. It offers high reliability and long service life, suitable for various electronic devices like communication equipment, measuring instruments, and consumer electronics. Gold-plated models are available for enhanced contact reliability, resistance to corrosive environments, and improved insulation. The switch is RoHS compliant, with a compact design ideal for space-constrained applications. It comes in different types including standard, high-force, and with various plunger heights, ensuring versatile integration into electronic products.
OMRON B3F1052 Tactile Switch Specifications:
- Dimensions: 6 x 6 mm
- Switch height: 4.3 mm or 5.0 mm
- Operating force: 150 g (high-force models available at 260 g)
- Contact Resistance: 100 mΩ max at rated 1 mA, 5 VDC
- Dielectric Strength: 500 VAC for 1 min
- Insulation Resistance: 100 MΩ min at 250 VDC
- Bounce Time: 5 ms max
- Operating temperature: -25°C to +70°C
- Humidity: 35% to 85% RH at 5–35°C
- Life expectancy: 300,000 operations min for high-force models
- Material: Copper alloy contacts, gold plating available
- RoHS Compliant
- Mounting: PCB surface mount
- Taped radial packaging, in units of 1,000 switches
- Water-wash cannot be used
Buy the Buy Omron Tactile Switch Part Number B3F1052 Online
Order the Omron B3F1052 tactile switch online to ensure reliable, long-lasting performance for your electronic applications. With compact 6x6mm size and 150 gf operating force, this switch offers excellent durability and space efficiency. Ideal for PCB mounting, it features high contact reliability with options for gold plating, and long service life. Suitable for communication, measurement, and consumer electronics, it provides a dependable switch solution for demanding environments. Purchase now for quick delivery and professional quality assured.
Get Omron B3F1052 today—built for precision and long-lasting durability in electronic control systems.
Frequently Asked Questions
Where can I buy OMRON B3F1052?
You can click on the BUY or RFQ button to purchase B3F1052 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part B3F1052?
You can download the B3F1052 datasheet or visit the OMRON website for support.
Who is the manufacturer of B3F1052?
OMRON
