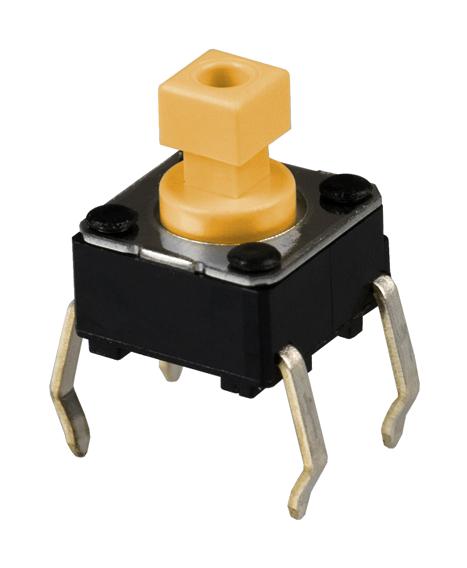

OMRON B3F1055 Tactile Switch
This compact 6x6 mm tactile switch operates vertically with a force of 260 grams-force, ideal for PC board mounting applications. It offers long service life with mechanical and electrical durability, making it suitable for audio, communication, and electronic devices. Variants include gold-plated models for enhanced reliability and resistance to corrosion, with different height and force options. The switch is available in taped radial packaging for automated insertion and adheres to RoHS standards, ensuring environmental safety and compliance.
OMRON B3F1055 Tactile Switch Specifications:
- Dimensions: 6x6 mm
- Switch Height: 4.3 mm or 5.0 mm depending on model
- Operating Force: 100 g, 150 g, 260 g options
- Contact Resistance: 100 mΩ max.
- Switching Capacity: 1 to 50 mA, 5 to 24 VDC resistive load
- Contact Form: SPST-NO
- Insulation Resistance: 100 MΩ min. at 250 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Bounce Time: 5 ms max.
- Vibration Resistance: Failure at 10 to 55 Hz, 1.5 mm amplitude
- Shock Resistance: 100 G approx.
- Ambient Operating Temperature: -25°C to 70°C
- Humidity: 35% to 85% RH
- Durability: Up to 10 million operations depending on model
- RoHS Compliant
- Support for surface mounting with terminals arranged for PCB soldering
- Taped radial packaging, quantities of 1,000 switches per box
Buy the Omron B3F1055 – Reliable Tactile Switch for Industrial Applications
Purchase the Omron tactile switch B3F1055 online today and benefit from its long service life, high reliability, and compact 6x6 mm design. Ideal for PCBs in various electronic devices, it offers consistent performance under harsh conditions. With available high-force variants and RoHS compliance, this switch ensures durability and safety. Easy to mount using taped radial packaging, and suitable for mass production, it guarantees high quality and efficient assembly, making it the perfect choice for engineers and manufacturers seeking dependable tactile switches for demanding environments.
Buy Omron B3F1055 now and experience unmatched reliability and performance in electronic and industrial applications.
Frequently Asked Questions
Where can I buy OMRON B3F1055?
You can click on the BUY or RFQ button to purchase B3F1055 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part B3F1055?
You can download the B3F1055 datasheet or visit the OMRON website for support.
Who is the manufacturer of B3F1055?
OMRON
