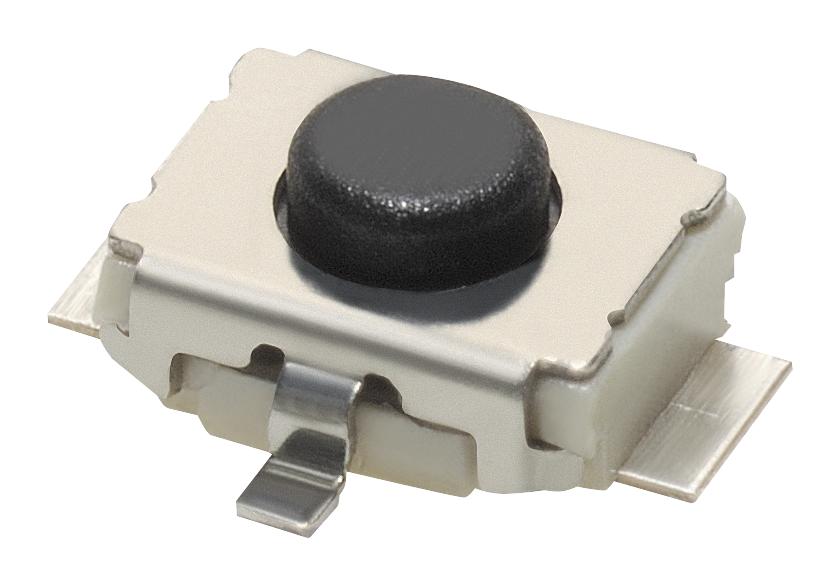

OMRON B3U1100PB Tactile Switch
This ultra-small surface-mount tactile switch is designed for high-density electronic devices, featuring a compact size of 3 x 2.5 mm and a vertical operation mechanism. It provides reliable tactile feedback with an operating force of 153 grams-force, ensuring consistent performance in mobile equipment, PCBs, and other electronic assemblies. Dust-proof construction enhances its durability in dusty environments. It supports resistive loads from 1 to 50 mA at 5 to 12 VDC, with a long life expectancy of over 200,000 operations. RoHS compliant and suitable for surface mounting, it can be used in various space-constrained electronic applications.
OMRON B3U1100PB Tactile Switch Specifications:
- Dimensions: 3 x 2.5 mm (H), compact surface-mount design
- Contact form: SPST-NO
- Switching capacity: 1 to 50 mA, 5 to 12 VDC (resistive load)
- Contact resistance: 100 mΩ max. at 1 mA, 5 VDC
- Insulation resistance: 100 MΩ min. at 100 VDC
- Dielectric strength: 250 VAC, 50/60 Hz for 1 min
- Bounce time: 5 ms max.
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: 1,000 m/s² max.
- Life expectancy: 200,000+ operations
- Operating temperature: -25°C to 70°C
- Operating force: 153 g
- Weight: approximately 0.022 g
- RoHS compliant, dust-proof construction, surface mounted, suitable for high-density PCB mounting
Buy the Omron Series B3U Tactile Switch: B3U1100PB
Order the Omron B3U1100PB tactile switch online today and experience reliable, high-performance switching with a compact and durable design. Perfect for space-constrained electronic applications, this surface-mount switch ensures precise tactile feedback and excellent durability over extensive use. Easy to install, RoHS compliant, and dust-proof, it is ideal for mobile devices, PCB assemblies, and high-density electronic circuits. Purchase now to secure a high-quality component that offers long-term performance and reliability for your electronic projects.
Get Omron B3U1100PB today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy OMRON B3U1100PB?
You can click on the BUY or RFQ button to purchase B3U1100PB from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part B3U1100PB?
You can download the B3U1100PB datasheet or visit the OMRON website for support.
Who is the manufacturer of B3U1100PB?
OMRON
