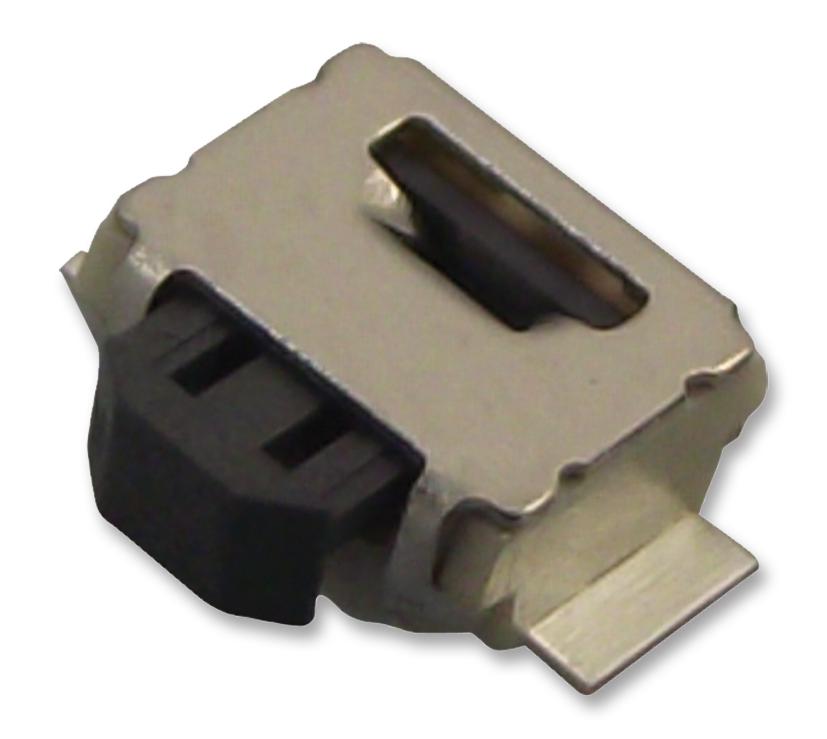

OMRON B3U3100P Tactile Switch
This ultra-small surface-mount tactile switch is designed for high-density PCB mounting in mobile devices and electronic equipment. It features dust-proof construction for high reliability in dusty environments, with models available that include ground terminals for static protection. The switch operates with a force of 162 grams-force and measures 3 x 2.5 mm, offering excellent durability with a minimum of 100,000 operations. Its compact size and reliable performance make it ideal for space-constrained high-density electronic applications. RoHS compliant and suitable for various industrial and consumer electronics.
OMRON B3U3100P Tactile Switch Specifications:
- Dimensions: 3 x 2.5 mm (H x Wx D)
- Operating force: 162 grams-force
- Contact form: SPST-NO
- Switching capacity: 1 to 50 mA, 5 to 12 VDC
- Contact resistance: 100 mΩ max (at 1 mA, 5 VDC)
- Insulation resistance: 100 MΩ min (at 100 VDC)
- Dielectric strength: 250 VAC for 1 min
- Bounce time: 5 ms max
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: 1,000 m/s² max
- Life expectancy: 100,000 operations min.
- Ambient temperature: -25°C to 70°C
- Humidity: 35% to 85%
- Weight: Approximately 0.022 g
- RoHS compliant
- Construction: Dust-proof, surface mounted
- Models available with ground terminals for static electricity protection
Buy the Buy Omron Tactile Switch Part Number B3U3100P Online
Purchase the Omron B3U3100P ultra-small tactile switch online today to enhance your electronic projects. Its compact size, dust-proof design, and static protection options make it ideal for high-density PCB mounting in portable and mobile devices. With a durable operating lifecycle of at least 100,000 cycles, RoHS compliance, and reliable operation in harsh environments, this switch delivers dependable performance for consumer electronics, industrial equipment, and compact control systems. Order now and upgrade your product's reliability and space efficiency.
Order your Omron Series B3U3100P dust-proof tactile switch today and ensure reliable performance in space-constrained electronic designs.
Frequently Asked Questions
Where can I buy OMRON B3U3100P?
You can click on the BUY or RFQ button to purchase B3U3100P from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part B3U3100P?
You can download the B3U3100P datasheet or visit the OMRON website for support.
Who is the manufacturer of B3U3100P?
OMRON
