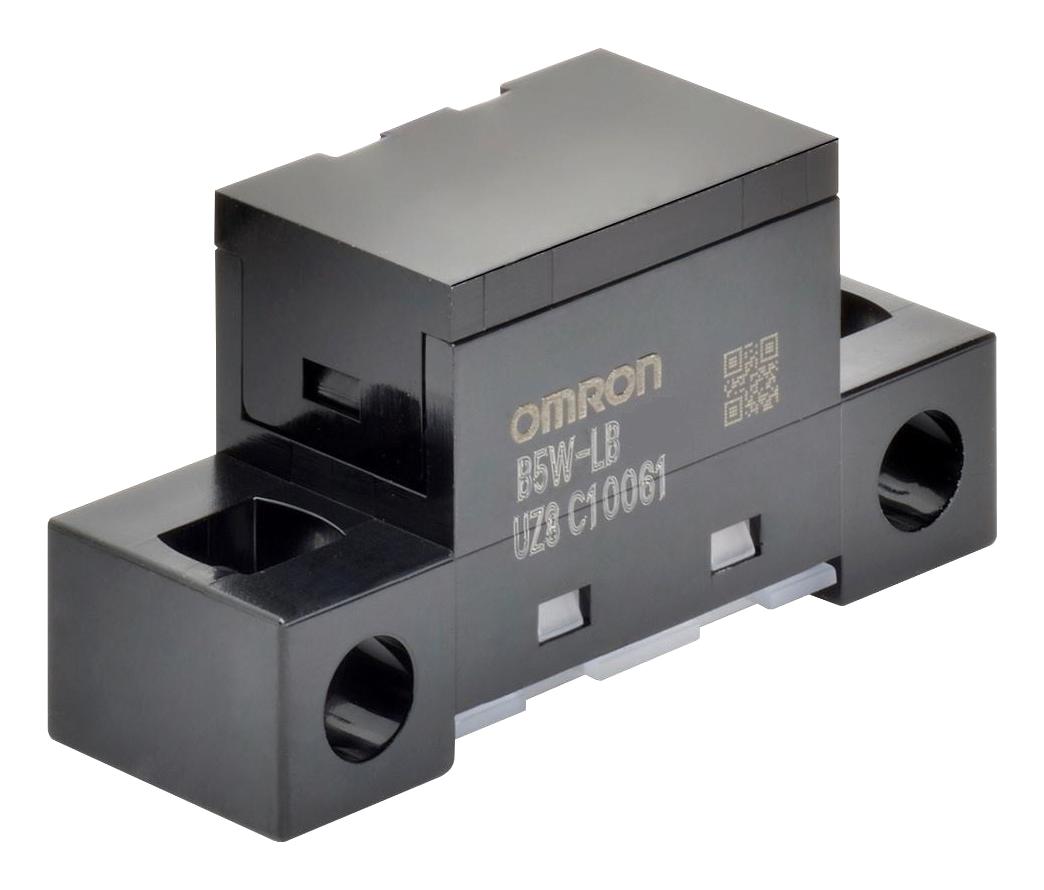

OMRON B5WLB11141 Reflective Photoelectric Sensor
The product is a reflective photoelectric sensor designed for object detection using infrared light. It features a GaAlAs infrared LED emitter, a Si photo circuit receiver, and an epoxy resin case. Suitable for industrial applications, it operates on a 24V DC power supply with a maximum of 26.4V, supports light-ON detection mode, and has an open collector NPN output. It measures approximately 68mm x 42mm, with a sensing distance range of 8mm to 20mm depending on background, and includes terminal connections for easy wiring. The sensor is built for stable operation in a variety of environments, with robust protective ratings and measures to reduce noise interference.
OMRON B5WLB11141 Reflective Photoelectric Sensor Specifications:
- Sensing Distance: 8mm to 20mm depending on background
- Operation Mode: Light-ON
- Power Supply Voltage: DC 26.4V (max), 24V typical
- Current Consumption: About 15mA without incident, up to 50mA peak with incident
- Output: NPN open collector, voltage 0.8V min (low), Vout max 0.32V (at 10mA)
- Response Time: Approx. 1ms
- Ambient Temperature: -10°C to +60°C
- Case Material: Epoxy resin, Lens: PMMA, Cover: Polycarbonate
- Size: Approx. 68mm length x 42mm width
- Outputs: 3 terminals, connector GHS-TBT (J.S.T.)
- Protection: IP50, not resistant to water or dust
- Rating: Max. 26.4V DC, Output Power 75mW, Max. Output Current 60mA
- Sensing Method: Reflective type using infrared light
- Connections: Connectors compatible with GHR-03 (J.S.T.)
- Operating Environment: Designed for indoor use, avoid exposure to corrosive gases, water, or extreme environments
- Mechanical: Mount with M3 screw, torque max 0.54N·m, flat mounting surface
- Shock Resistance: 500m/s² for 3 times in X, Y, Z directions
- Vibration Resistance: 10-55Hz, half amplitude 0.75mm
- Storage and Use Environment: Avoid direct sunlight, chemical exposure, water, or oil spray
Buy the Industrial Sensor Series Reflective: B5W-LB1114-1
Order the Omron B5W-LB1114-1 reflective photoelectric sensor online today to ensure precise object detection in your automation setup. This sensor features a compact design with an 8 to 20mm sensing distance, making it ideal for industrial environments. It supports easy wiring with a 3-terminal connector and operates reliably at voltages up to 26.4V DC. Perfect for minimizing false detections, this sensor guarantees stable, accurate performance in various manufacturing and automation applications. Take advantage of our quick online purchasing option for prompt delivery and consistent operation.
Buy Omron B5W-LB1114-1 now and experience unmatched reliability and detection performance in automation systems.
Frequently Asked Questions
Where can I buy OMRON B5WLB11141?
You can click on the BUY or RFQ button to purchase B5WLB11141 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part B5WLB11141?
You can download the B5WLB11141 datasheet or visit the OMRON website for support.
Who is the manufacturer of B5WLB11141?
OMRON
