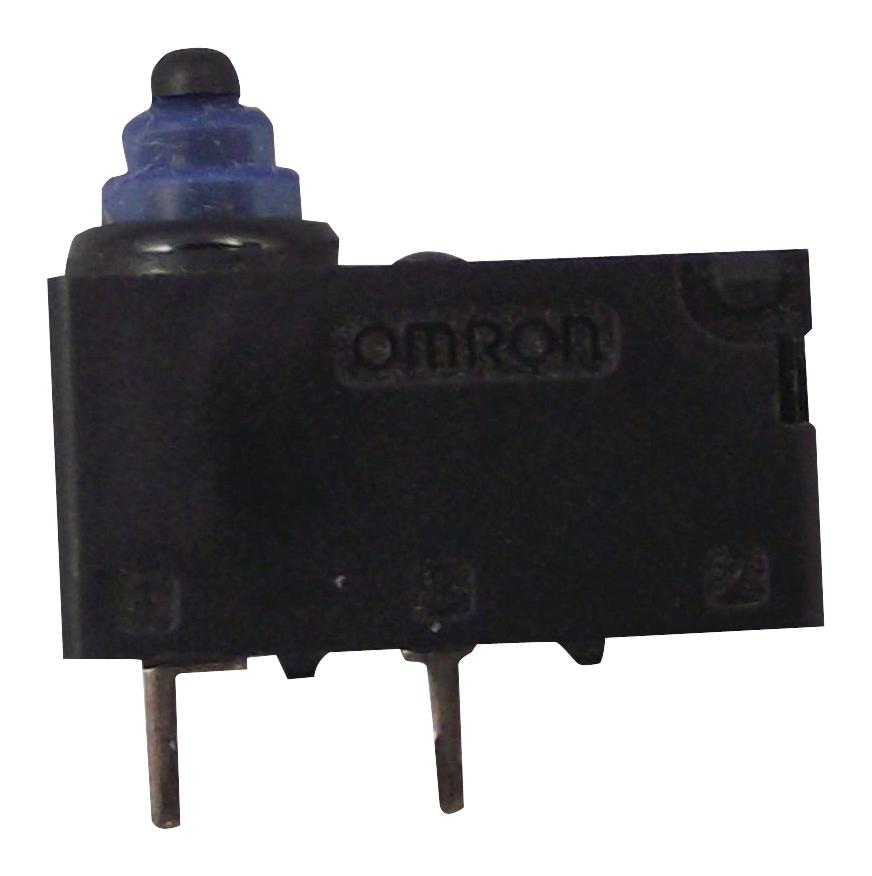

OMRON D2AWA002DR Sealed Micro Switch
The Sealed Ultra Subminiature Basic Switch is designed for high reliability and insulation performance, suitable for industrial applications. It features twin clipping contacts for double reliability, quiet operation, and high insulation resistance due to a unique contact structure. The switch comes in various mounting structures, contact forms, and actuator options like pin plunger, leaf lever, simulated roller leaf lever, and long leaf lever. It offers a contact rating of 0.1 A at 12 VDC with high protection class IP67, and is built to withstand harsh environments with resistances to vibration, shock, and extreme temperatures. Perfect for automation, machinery, and automotive use, ensuring precise operation and durability.
OMRON D2AWA002DR Sealed Micro Switch Specifications:
- Contact Material: Silver Plated
- Rating Voltage Resistive Load: 12 VDC 0.1 A
- Insulation Resistance: 100 MQ min. at 500 VDC
- Dielectric Strength: 1,500 VAC min. between current-carrying parts and ground
- Operating Speed: 30 mm to 500 mm/s (pin plunger models)
- Mechanical Operating Frequency: 30 operations/min max.
- Electrical Operating Frequency: 20 operations/min max.
- Vibration Resistance: Malfunction at 10-55 Hz, 1.5mm double amplitude, destruction at 1,000 m/s²
- Shock Resistance: Malfunction at 300 m/s², durability over 200,000 cycles
- Degree of Protection: IEC IP67 (waterproof and dustproof)
- Ambient Temperature: -40°C to 85°C
- Ambient Humidity: 95%RH max.
- Weight: Approx. 0.7 g (pin plunger models with terminals)
Buy the Omron D2ZAW – Reliable Sealed Subminiature Switch for Industrial Applications
Purchase the Omron D2ZAW sealed micro switch online today and secure a highly reliable, waterproof, and compact switching solution perfect for automation, machinery, and automotive systems. Designed for demanding industrial environments, this switch offers excellent insulation, durability, and vibration resistance. With a variety of mounting and actuator options, it ensures precise control and longevity. Investing in this high-quality switch guarantees stable operation, easy installation, and lasting performance, making it an essential component for safety-critical and high-performance applications.
Buy Omron D2ZAW now and experience unmatched reliability and performance in harsh environments with high insulation and waterproof protection.
Frequently Asked Questions
Where can I buy OMRON D2AWA002DR?
You can click on the BUY or RFQ button to purchase D2AWA002DR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2AWA002DR?
You can download the D2AWA002DR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2AWA002DR?
OMRON
