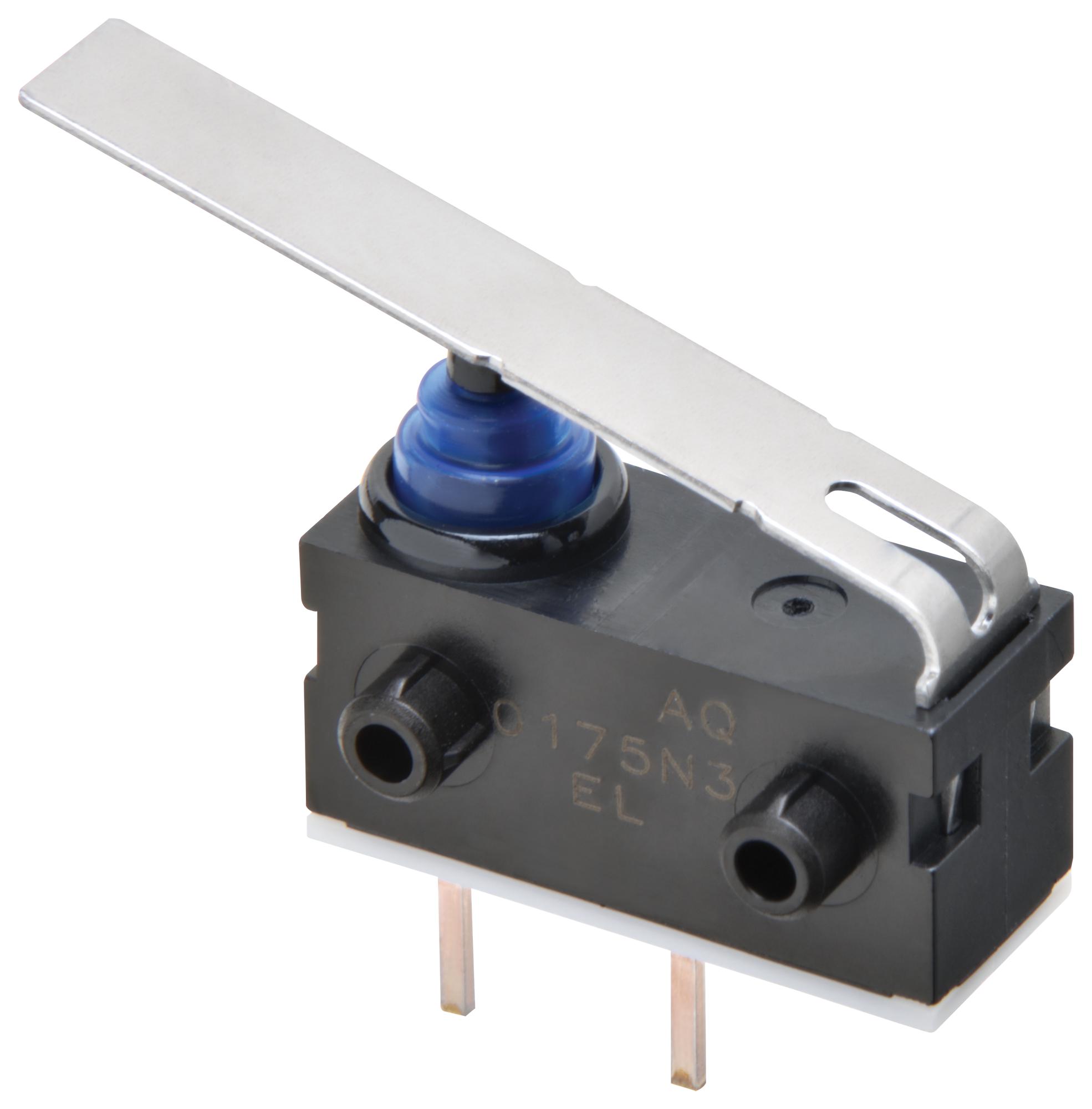

OMRON D2AWA052DR Sealed Micro Switch
The D2ZAW Sealed Ultra Subminiature Basic Switch offers high reliability, insulating performance, and quiet operation, ideal for automotive and industrial applications. It features twin clipping contacts for double reliability and a high insulation resistance structure for improved safety. Designed with various mounting options including long posts, short posts, PCB terminals, and built for resistive loads up to 0.1 A at 12 VDC, this switch is IP67 rated for protection against dust and water immersion. Suitable for environments requiring precise and durable switching in compact form factors.
OMRON D2AWA052DR Sealed Micro Switch Specifications:
- Ratings: 0.1 A at 12 VDC, Resistive load
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Contact Material: Silver Plated
- Degree of Protection: IP67
- Operating Speed: 30 mm to 500 mm/s (pin plunger models)
- Mechanical Operations: 30 operations/min max.
- Electrical Operations: 20 operations/min max.
- Operating Temperature: -40 to 85°C
- Operating Humidity: 95%RH max.
- Weight: Approx. 0.7 g (pin plunger models with terminals)
- Dielectric Strength: 1500 VAC min. between current-carrying parts and ground
- Vibration Resistance: 10 to 55 Hz, 1.5mm double amplitude
- Shock Resistance: 300 m/s² for malfunction, 200,000 cycles min.
- Mounting: Threaded mounting with M3 screw, PCB terminals, solder terminals, or mechanical posts
Buy the Omron Series D2ZAW Sealed Ultra Subminiature Switch: D2AWA052DR
Order the Omron D2AWA052DR sealed micro switch online today to ensure high durability, reliable contact performance, and IP67 protection. This compact switch features twin clipping contacts for higher safety, multiple mounting options including threaded and PCB terminals, and a resistive load capacity of 0.1 A at 12 VDC. Ideal for automotive, industrial, and equipment safety applications, it offers excellent insulation resistance and resistance to vibration and shocks. Secure your systems with this highly dependable sealing switch through our easy online purchasing process.
Buy Omron D2AWA052DR switch now and experience unmatched reliability, high insulation, and versatile mounting options in a compact design.
Frequently Asked Questions
Where can I buy OMRON D2AWA052DR?
You can click on the BUY or RFQ button to purchase D2AWA052DR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2AWA052DR?
You can download the D2AWA052DR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2AWA052DR?
OMRON
