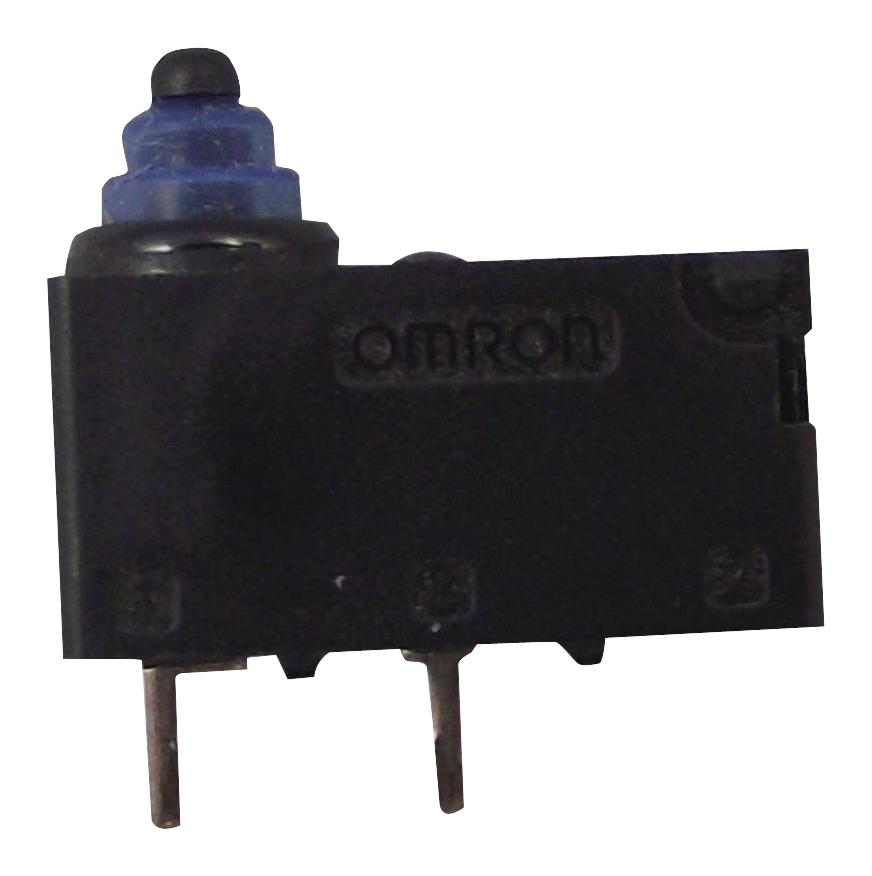

OMRON D2AWEL002DR Sealed Micro Switch
The Sealed Ultra Subminiature Basic Switch is a reliable, compact switch designed for high insulation performance and quiet operation. It features twin clipping contacts for enhanced reliability and is suitable for various industrial applications. The switch offers a degree of protection IP67, ensuring durability in demanding environments. Available with different mounting options, contact forms, and actuators, this switch is ideal for automation, machinery, and automotive uses. It provides stable electrical and mechanical performance with a sleek, sealed design to prevent water ingress and contamination.
OMRON D2AWEL002DR Sealed Micro Switch Specifications:
- Degree of Protection: IP67 (waterproof and dustproof)
- Contact Material: Silver Plated
- Maximum Operating Speed: 30 mm to 500 mm/s (pin plunger models)
- Operating Force: Max 2.00N (203 gf) for leaf lever models, Max 1.80N (183 gf) for simulated roller models
- Releasing Force: Min 0.05N (5 gf)
- Contact Resistance: Max 100 mΩ
- Insulation Resistance: Min 100 MΩ at 500 VDC
- Dielectric Strength: 1,500 VAC between terminals and ground
- Operating Temperature Range: -40°C to 85°C
- Shock Resistance: Max 300m/s²
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Durability: Mechanical 200,000 operations, Electrical 200,000 operations
- Weight: Approx. 0.7 g (pin plunger models with terminals)
Buy the OMRON Series Ultra Subminiature Sealed Switch: D2AWEL002DR
Order the OMRON D2AWEL002DR sealed micro switch online today and enjoy high insulation, water resistance, and durability. Its compact and sealed design ensures reliable operation in harsh environments, including automotive, automation, and industrial applications. With various mounting options and contact configurations, this switch guarantees high performance and long-lasting service. Purchase now to secure this essential component for precise and dependable switching under challenging conditions, and benefit from quick delivery and trusted quality for your projects.
Buy OMRON D2AWEL002DR sealed ultra subminiature switch now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy OMRON D2AWEL002DR?
You can click on the BUY or RFQ button to purchase D2AWEL002DR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2AWEL002DR?
You can download the D2AWEL002DR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2AWEL002DR?
OMRON
