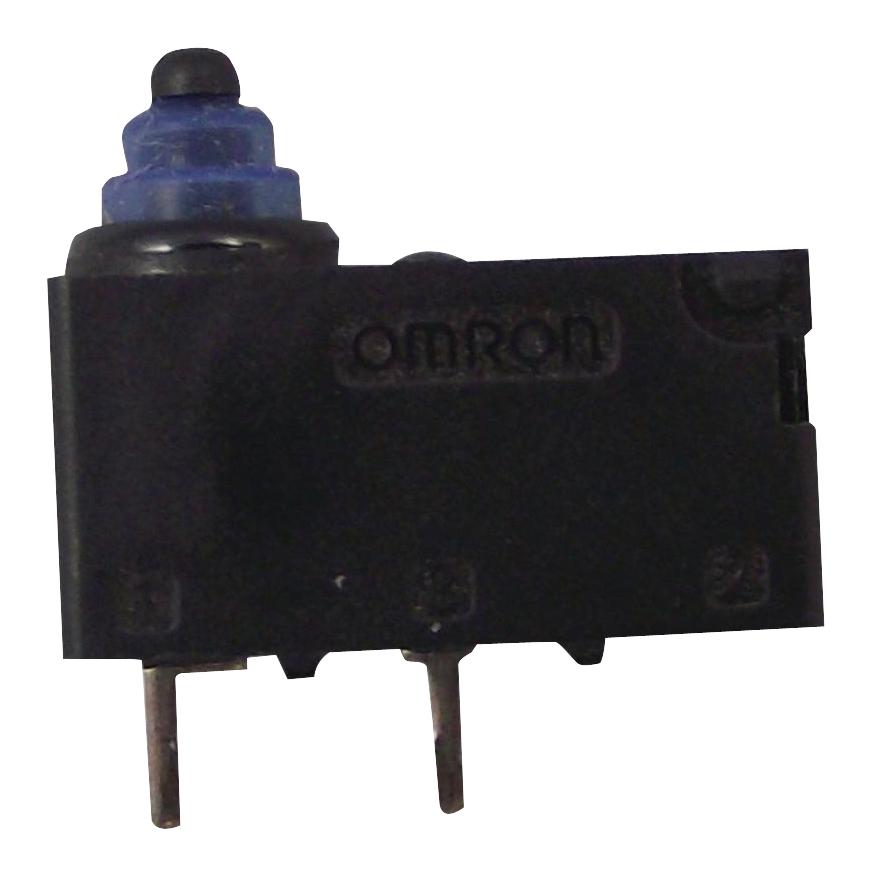

OMRON D2AWEL003DR Sealed Micro Switch
The Sealed Ultra Subminiature Basic Switch is designed for high reliability, insulation performance, and quiet operation, suitable for automotive and industrial applications. It features a sealed enclosure with IP67 protection and multiple mounting options, including screw and PCB terminals. The switch offers various actuator types, contact forms, and ratings up to 0.1 A at 12 VDC, with a mechanical durability of 200,000 operations. Its compact size and robust design make it ideal for precise control in demanding environments, ensuring long-term performance and safety.
OMRON D2AWEL003DR Sealed Micro Switch Specifications:
- Degree of Protection: IEC IP67
- Contact Material: Silver Plated
- Contact Resistance: 100 mΩ max.
- Rated Voltage: 12 VDC
- Rated Current: 0.1 A
- Insulation Resistance: 100 MQ min.
- Dielectric Strength: 1500 VAC
- Operating Temperature: -40 to 85°C
- Mechanical Durability: 200,000 operations min.
- Electrical Durability: 200,000 operations min.
- Permissible Operating Speed: 30 mm to 500 mm/s
- Vibration Resistance: 10-55 Hz, 1.5mm amplitude
- Shock Resistance: 300 m/s²
- Weight: Approx. 0.7 g
- Mounting: M3 screw, PCB, or panel with various terminals
- Operating Force: Up to 2.0 N depending on model
- Contact Form: SPST-NC or SPST-NO
Buy the Buy Omron Sealed Ultra Subminiature Basic Switch Part Number D2AWEL003DR Online
Purchase the Omron Sealed Micro Switch D2AWEL003DR online today and enjoy high-quality, reliable performance for automotive and industrial control applications. This compact switch features sealed IP67 protection, making it perfect for harsh environments. With multiple actuator options and ratings up to 0.1 A at 12 VDC, it delivers precise operation and durability, ensuring long-term service and safety. Ideal for automation, safety systems, and precise control needs, buy now for quick delivery and excellent performance.
Buy Omron D2AWEL003DR now and experience unmatched reliability and precise control in demanding environments.
Frequently Asked Questions
Where can I buy OMRON D2AWEL003DR?
You can click on the BUY or RFQ button to purchase D2AWEL003DR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2AWEL003DR?
You can download the D2AWEL003DR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2AWEL003DR?
OMRON
