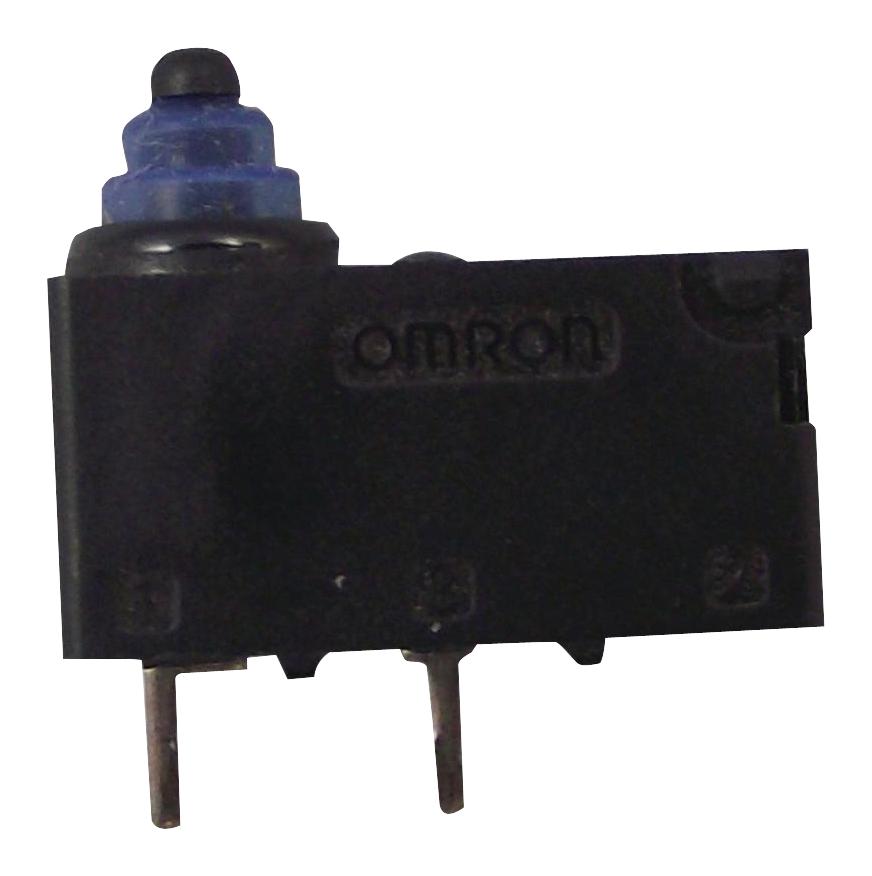

OMRON D2AWER002DR Subminiature Waterproof Switch
The Sealed Ultra Subminiature Basic Switch is designed for high reliability and insulative performance in compact applications. Featuring twin clipping contacts for double reliability and sliding contact construction for quiet operation, it is suitable for automotive and industrial uses. The switch is IP67 rated for water resistance, with models available in various mounting structures, contact forms, and actuator types like pin plungers, leaf levers, and simulated rollers. It supports resistive loads up to 0.1A at 12VDC and withstands harsh environments, including temperature ranges from -40°C to 85°C.
OMRON D2AWER002DR Subminiature Waterproof Switch Specifications:
- Degree of protection: IP67
- Contact Material: Silver Plated
- Rated Voltage: 12 VDC
- Rated Current: 0.1 A
- Mechanical Operations: Max 30 operations/min.
- Electrical Operations: Max 20 operations/min.
- Operating Temperature Range: -40°C to 85°C
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Vibration Resistance: 1.5mm double amplitude, 10-55 Hz
- Shock Resistance: 300 m/s² max.
- Durability: Mechanical and electrical 200,000 operations min.
- Weight: Approx. 0.7 g (pin plunger models)
Buy the Omron Series Ultra Subminiature Switch: D2AWER002DR
Get the Omron Series Ultra Subminiature Waterproof Switch D2AWER002DR online now to experience exceptional reliability and performance in compact, water-resistant designs. Perfect for automotive, industrial, and electronic applications, this switch supports resistive loads up to 0.1A at 12VDC, with a rugged IP67 rating for water intrusion protection. Its multiple actuator options and mounting configurations make installation versatile and easy. Order today to ensure your project benefits from a durable, high-quality switch that withstands harsh environments and maintains excellent electrical performance under demanding conditions.
Order your Omron Series Ultra Subminiature Switch D2AWER002DR today and ensure your projects benefit from reliable, waterproof, and high-performance switching solutions.
