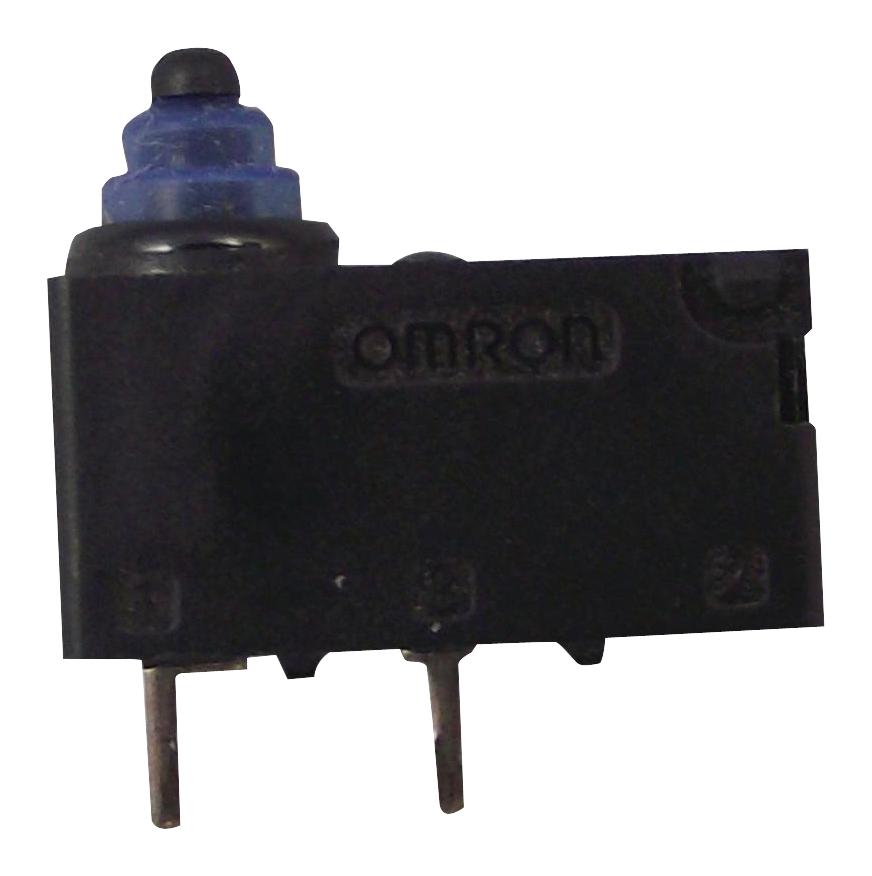

OMRON D2AWER003DR Sealed Compact Switch
The Sealed Ultra Subminiature Basic Switch offers high reliability and insulation performance, suitable for compact applications. It features twin contacts for enhanced reliability, quiet operation for noise-sensitive environments, and high insulation resistance. Designed with various mounting options, contact forms, and actuator types, it ensures durability with a rated electrical lifetime of 200,000 operations. The switch is IP67 rated for water and dust resistance, making it ideal for industrial automation, machinery, and automotive uses. Its small size yet robust construction guarantees dependable performance in demanding conditions.
OMRON D2AWER003DR Sealed Compact Switch Specifications:
- Degree of protection: IP67
- Operating temperature: -40°C to 85°C
- Electrical rating: 0.1 A at 12 VDC
- Contact material: Silver plated
- Permissible operating speed: 30 mm to 500 mm/sec
- Mechanical life: 200,000 operations minimum
- Insulation resistance: 100 MQ min at 500 VDC
- Dielectric strength: 1,500 VAC between terminals and ground
- Weight: Approx. 0.7 g (pin plunger models)
- Mounting structure: With/without posts, M3-screw mounting, PCB terminals
- Contact form options: SPST-NC, SPST-NO, with various actuator types
- Vibration resistance: 1,000 m/s² max.
- Shock resistance: 300 m/s² max.
- Soldering temperature: max 300°C for 3 seconds
Buy the Buy OMRON D2AW Sealed Compact Switch Part Number D2AWER003DR Online
Experience the high reliability of the Sealed Compact Switch by ordering online today. Perfect for industrial automation, machinery, and automotive applications, this switch offers IP67 protection, quiet operation, and long-term durability. Easy to install with various mounting options and actuator types, it ensures dependable performance in harsh environments. Purchase online now to ensure your industrial or automotive system stays operational with a product designed for demanding conditions and extended service life.
Get OMRON D2AW switch today—built for precision and long-lasting durability in challenging environments.
Frequently Asked Questions
Where can I buy OMRON D2AWER003DR?
You can click on the BUY or RFQ button to purchase D2AWER003DR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2AWER003DR?
You can download the D2AWER003DR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2AWER003DR?
OMRON
