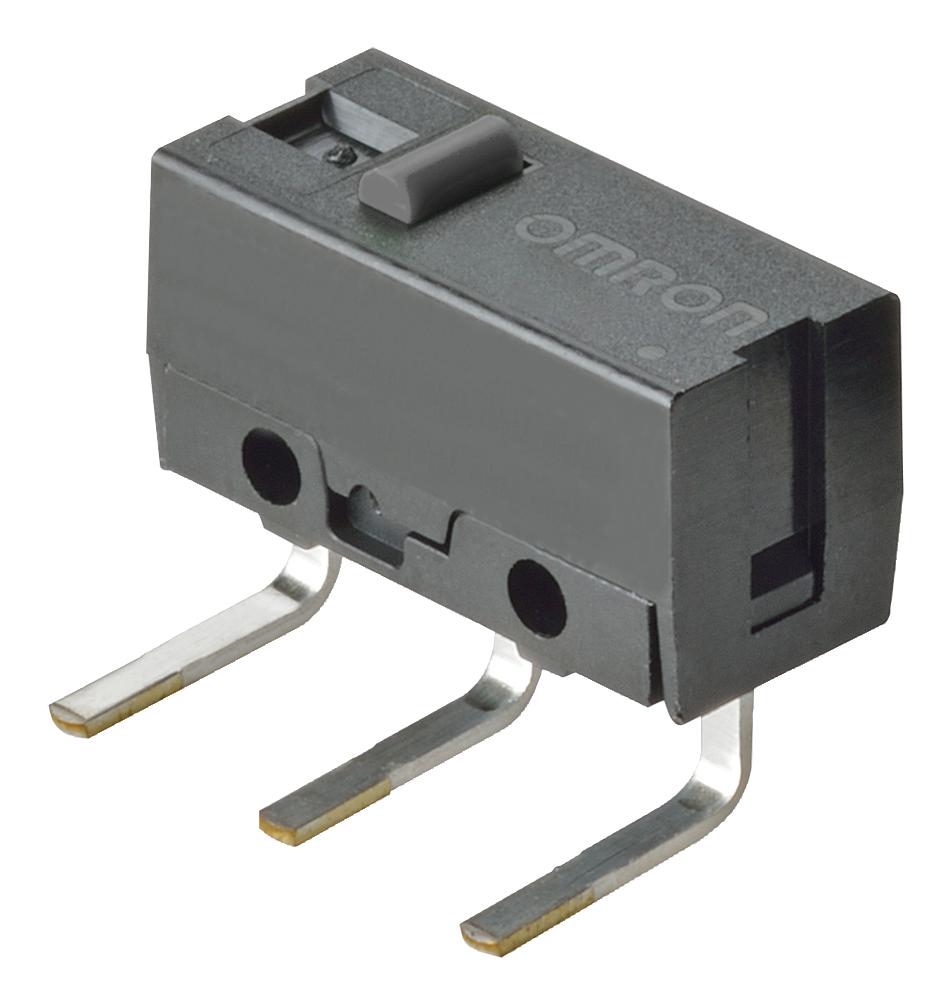

OMRON D2F01A1 snap-action switch
This high-performance snap-action switch with a round plunger actuator is ideal for PCB mounting in various applications. It features a SPDT contact form, ensuring reliable switching with a 0.1A contact current, suitable for microvoltage and microcurrent loads. Designed for long-lasting use, it offers a durable mechanism with high precision. The switch supports a wide range of mounting options, includes multiple actuator types, and complies with RoHS standards. Its sturdy construction ensures stable operation in appliances, office equipment, audio, and communication devices, making it a versatile choice for industrial and electronic applications.
OMRON D2F01A1 snap-action switch Specifications:
- Contact Form: SPDT
- Switch Function: On-moment (momentary)
- Contact Current: 0.1 Amps
- Supported Loads: Microvoltage/microcurrent loads
- Actuator Type: Round plunger
- Mounting Type: PCB Support
- Degree of Protection: IEC IP40
- Operating Speed: 1 to 500 mm/second
- Operating Frequency: Mechanical 200 operations/min, Electrical 30 operations/min
- Contact Resistance: 30 mΩ max. (standard force), 50 mΩ max. (low force), 100 mΩ max. (microload)
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 600 VAC, 50/60 Hz for 1 min between terminals, 1500 VAC for metal parts and ground
- Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock Resistance: Max 100G, malfunction limit 30G
- Operating Temperature: -25°C to 65°C
- Operating Humidity: Up to 85%
- Service Life: Mechanical 1 million operations, Electrical 30,000 operations
- Weight: Approx. 0.5 g
Buy the Buy Omron D2F Microload Terminal Switch Part Number D2F01A1 Online
Purchase the Omron D2F snap-action switch online today and benefit from high durability, precise operation, and versatile mounting options. This switch is ideal for a variety of applications including appliances, office equipment, and communication devices. Its robust design ensures long service life, while compliance with RoHS standards guarantees environmentally friendly operation. Whether for microvoltage, low-force, or general-purpose loads, this switch guarantees reliable switching with superior contact resistance and dielectric strength. Enhance your electronic and industrial systems by ordering now and enjoy quick worldwide delivery.
Buy Omron D2F microload switch now and experience unmatched reliability and performance in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy OMRON D2F01A1?
You can click on the BUY or RFQ button to purchase D2F01A1 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2F01A1?
You can download the D2F01A1 datasheet or visit the OMRON website for support.
Who is the manufacturer of D2F01A1?
OMRON
