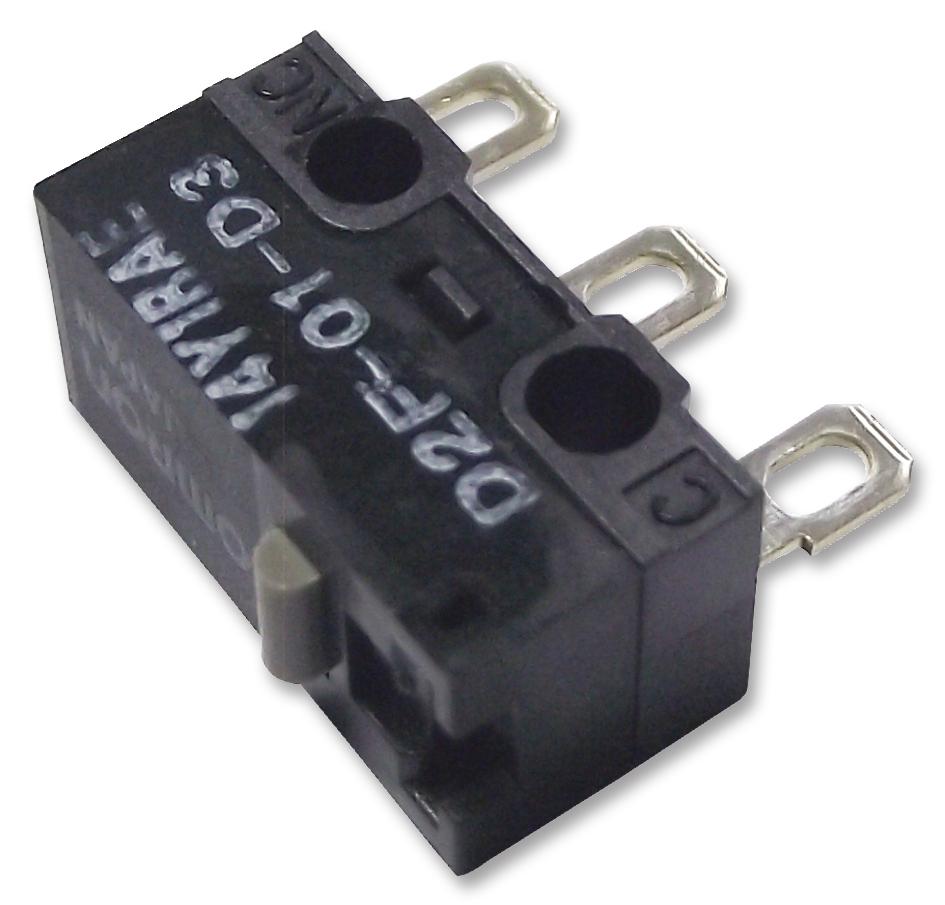

OMRON D2F01D3 Ultra Subminiature Switch
The D2F series ultra subminiature basic switches are highly durable, compact, and RoHS compliant, suitable for precise industrial applications. They feature multiple terminal configurations, including PCB, solder, and self-clinching variants, with both pin plunger and lever actuators, such as hinge, hinge roller, and simulated roller types. Rated for 125 VAC 3A or 30 VDC 0.1A, these switches guarantee reliable electrical performance with contact resistance of max 100 mΩ and dielectric strength of 1500 VAC. Designed for high-speed mechanical operation and vibration resistance, they are ideal in automation, control panels, and safety systems.
OMRON D2F01D3 Ultra Subminiature Switch Specifications:
- Operation Voltage: 125VAC 3A, 30VDC 0.1A
- Operating Force: 1.47 N (150 gf) for pin plunger, 0.74 N (75 gf) for low-force models
- Contact Resistance: Max 100 mΩ
- Dielectric Strength: 1500 VAC
- Vibration Resistance: 10-55 Hz, 1.5-mm amplitude
- Shock Resistance: Max 100G
- Electrical Durability: 100,000 operations min.
- Mechanical Durability: 1,000,000 operations min.
- Operating Temperature: -40°C to +85°C
- Ambient Humidity: Max 85%
- Degree of Protection: IEC IP40
- Dimensions: Refer to specific model datasheets
- Materials: Silver or gold alloy contacts, stainless-steel lever, POM roller
- Terminals: PCB, solder, compact solder, self-clinching, right-/left-angled
- RoHS Compliant: Yes
Buy the OMRON Series D2F Ultra Subminiature Switch: D2F01D3
Order the OMRON D2F series ultra subminiature switch online today and enjoy seamless integration into your automation or control systems. Designed for high durability, these switches feature multiple terminal configurations and actuator types, including pin plunger, hinge lever, and roller lever options. Rated for 125 VAC 3A and 30 VDC 0.1A, it ensures top performance in industrial environments. With RoHS compliance, excellent resistance to vibration and shocks, and long mechanical life, this switch guarantees reliable operation for critical automation applications. Enhance your system's reliability—purchase now for quick delivery.
Buy OMRON D2F01D3 ultra subminiature switch now and experience unmatched reliability and precision in compact control solutions.
Frequently Asked Questions
Where can I buy OMRON D2F01D3?
You can click on the BUY or RFQ button to purchase D2F01D3 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2F01D3?
You can download the D2F01D3 datasheet or visit the OMRON website for support.
Who is the manufacturer of D2F01D3?
OMRON
