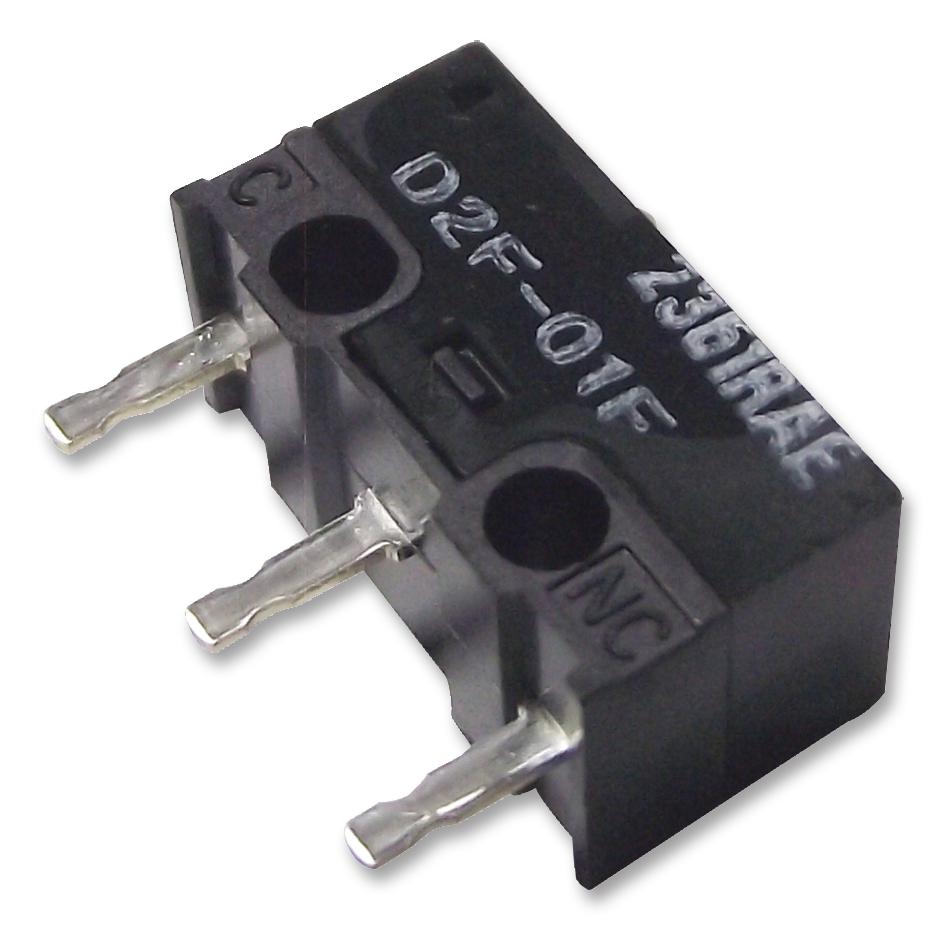

OMRON D2F01F Snap Action Switch
This subminiature snap action switch features a round plunger actuator, designed for PCB mounting with SPDT configuration. It supports loads of up to 3 A for general purpose, 1 A for low-force applications, and 0.1 A for microvoltage and microcurrent. The switch offers high durability with a lifespan of at least 1 million operations, thanks to its high-precision dual spring mechanism. Suitable for appliances, office, audio, and communication equipment, it complies with RoHS standards. Its compact size and reliable performance make it ideal for various electronic control applications.
OMRON D2F01F Snap Action Switch Specifications:
- Operating Speed: 1 to 500 mm/second
- Operating Frequency: Mechanical 200 ops/min, Electrical 30 ops/min
- Contact Resistance: 30 mΩ max. (Standard), 50 mΩ max. (Low force), 100 mΩ max. (Microload)
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 600 VAC same polarity, 1500 VAC with metal parts and between terminals and ground
- Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock Resistance: 100G max. (destruction), 30G max. (malfunction)
- Degree of Protection: IEC IP40
- Proof Tracking Index: 175
- Operating Temperature: -25°C to 65°C
- Humidity: Max 85% (5°C to 35°C)
- Service Life: Mechanical 1 million operations min., Electrical 30,000 operations min.
- Weight: Approx. 0.5 g
Buy the Omron Series D2F Snap Action Switch: D2F01F
Order the Omron D2F01F snap action switch online now to ensure durable, high-precision switching for your electronic projects. Compact, reliable, and RoHS compliant, this SPDT switch features a round plunger actuator suitable for PCB mounting and microcurrent applications. With a service life of over 1 million operations, it is ideal for appliances, communication devices, and office equipment. Enjoy fast delivery and competitive pricing while securing a proven switch designed for demanding electronic control environments.
Buy Omron D2F01F now and experience unmatched reliability and performance in compact industrial control switches.
