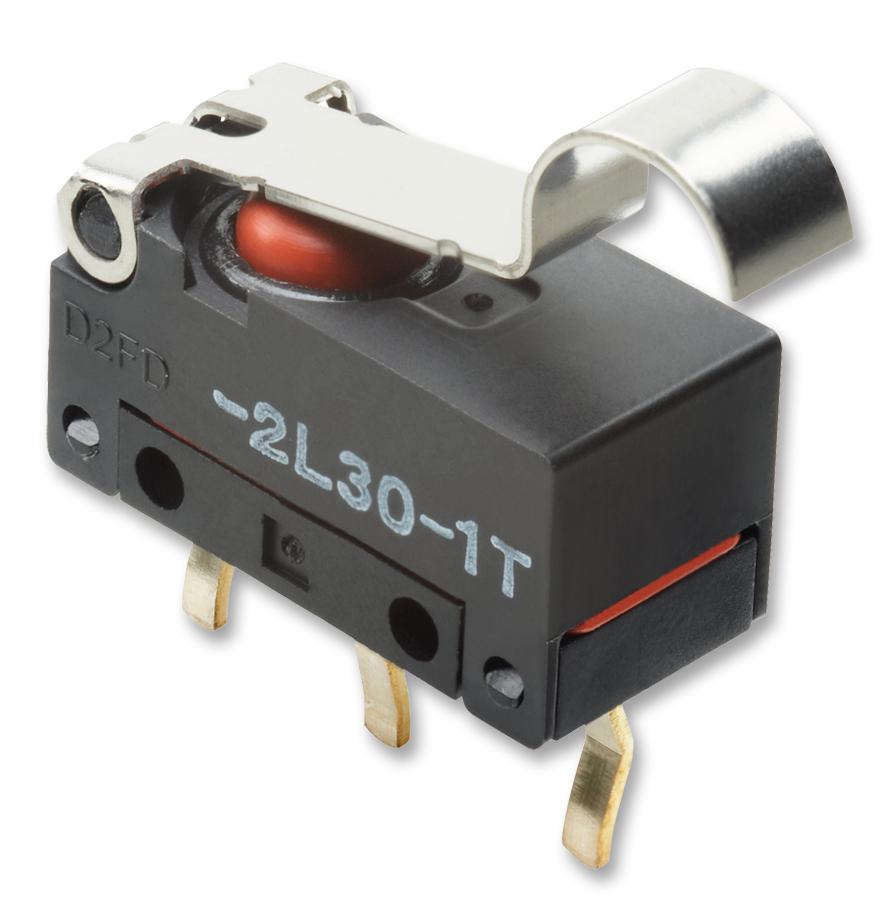

OMRON D2FD2L301H Dustproof Switch
The D2FD Dust Proof Ultra Subminiature Basic Switch offers reliable dust-proof performance with sealing via rubber packing, suitable for dust environments (IEC IP6X). It features a rated 2 A at 125 VAC, with various actuator options including pin plunger, hinge lever, and simulated roller lever. The switch demonstrates high durability with up to 30,000 electrical operations and 120 mechanical cycles. Its compact size, high insulation resistance, and IP6X protection make it ideal for demanding industrial applications requiring space-saving, dust-resistant switching solutions.
OMRON D2FD2L301H Dustproof Switch Specifications:
- Rated voltage: 125 VAC 2A, 30 VDC 2A
- Contact Material: Silver alloy / Gold alloy (model dependent)
- Mechanical life: 120 operations/min, 30,000 electrical operations
- Contact resistance: Max. 30 mΩ (initial)
- Insulation resistance: Min. 100 MQ (500 VDC)
- Degree of protection: IP6X
- Operating temperature: -20°C to +70°C
- Operating speed: 1 mm to 500 mm/sec
- Vibration resistance: 10-55 Hz, 1.5 mm double amplitude
- Shock resistance: Max. 300 m/s²
- Mounting: M2.3 screws, flat surface mounting
- Dimensions: Refer to detailed technical drawings
- Terminals: Solder, PCB (varies by model)
- Seal: Rubber packing for dust protection
- Operating humidity: Max 85%
- Weight: Approx. 0.7 g (pin plunger, PCB models)
Buy the OMRON Series D2FD Dust Proof Dustproof Switch: D2FD2L301H
Order the OMRON Dustproof Switch D2FD2L301H online today to enjoy reliable dust-resistant performance, high durability, and versatile actuator options. Perfect for spacesensitive applications, this switch offers IP6X sealing, rated 2A at 125 VAC, and withstands numerous mechanical and electrical cycles. Its compact size makes it suitable for demanding environments where dust and debris are present, ensuring consistent and safe operation. Purchase now to benefit from fast shipping, trusted quality, and easy online ordering.
Get OMRON D2FD2L301H today—built for precision, durability, and dust resistance in compact switch applications.
Frequently Asked Questions
Where can I buy OMRON D2FD2L301H?
You can click on the BUY or RFQ button to purchase D2FD2L301H from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2FD2L301H?
You can download the D2FD2L301H datasheet or visit the OMRON website for support.
Who is the manufacturer of D2FD2L301H?
OMRON
