OMRON D2MQ1TR Subminiature switch
The D2MO is a subminiature, ultra-slim snap-action switch with a depth of only 2.7 mm. It features excellent electrical characteristics and a reliable snap mechanism, suitable for applications with limited space and high reliability requirements. The switch offers various actuator options, including pin plunger, leaf lever, and hinge lever, with choices for PCB terminal configurations: straight, left-angled, or right-angled. It complies with RoHS standards, has a contact form of SPDT, and supports resistive loads up to 0.5A at 30 VDC, making it ideal for compact, high-precision electronic and mechanical systems.
OMRON D2MQ1TR Subminiature switch Specifications:
- Depth: 2.7 mm
- Contact form: SPDT
- Contact material: Silver plated, Gold plated
- Rating: 30 VDC 0.5A or 50 mA
- Permissible operating speed: 0.1 mm to 0.5 mm/s
- Operating force: Max 1.18N (pin plunger), Max 0.59N (leaf lever), Max 0.39N (hinge lever)
- Pretravel: Max 0.4 mm (pin plunger), Max 24 mm (leaf lever), Max 24 mm (hinge lever)
- Overtravel: Min 0.1 mm (pin plunger), Mi 0.3 mm (leaf hinge lever)
- Contact resistance: 100 mΩ (initial)
- Insulation resistance: 100 MΩ at 250 VDC
- Dielectric strength: 500 VAC 1 min
- Vibration resistance: Malfunction at 10-55 Hz, 1.5 mm amplitude
- Shock resistance: 100G durability, 30G operational
- Durability: Mechanical 30,000 cycles, Electrical 10,000 cycles
- Protection rating: IEC IP40
- Operating temperature: -15°C to +70°C
- Humidity: 35% to 85%
- Weight: Approx. 0.39 g

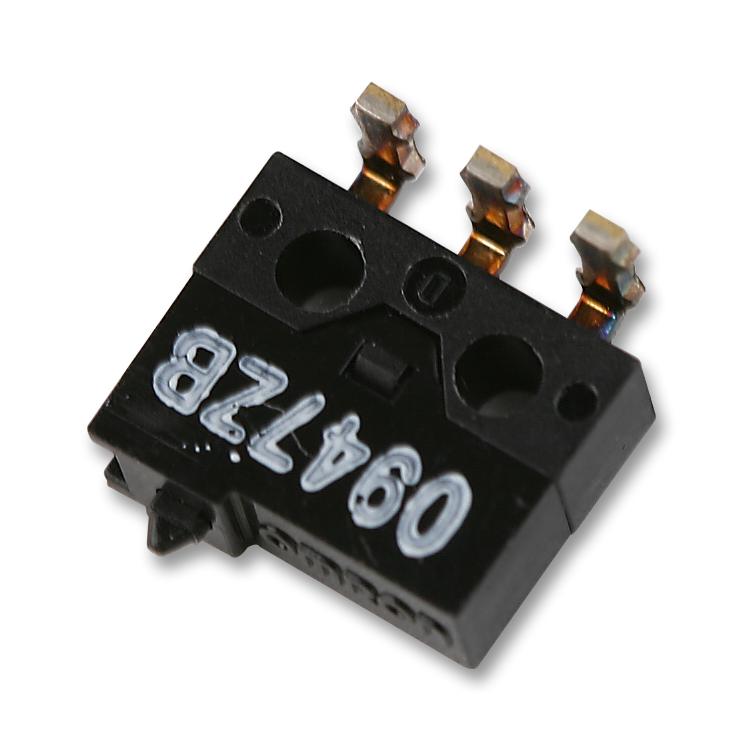

Buy the Buy Omron D2MO Part Number D2MQ1TR Online
Discover the compact and ultra-slim Omron D2MO subminiature switch, measuring only 2.7 mm deep. Designed for high reliability, it features various actuator options, including pin plunger, leaf lever, and hinge lever. Suitable for space-limited electronic assemblies, this switch supports resistive loads up to 0.5A at 30 VDC and complies with RoHS standards. Its robust construction ensures durability with up to 30,000 mechanical operations, making it an ideal choice for automated and industrial systems where space efficiency and dependability are critical.
Buy Omron D2MQ1TR now and experience unmatched reliability and high precision in space-constrained applications.
Frequently Asked Questions
Where can I buy OMRON D2MQ1TR?
You can click on the BUY or RFQ button to purchase D2MQ1TR from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2MQ1TR?
You can download the D2MQ1TR datasheet or visit the OMRON website for support.
Who is the manufacturer of D2MQ1TR?
OMRON
