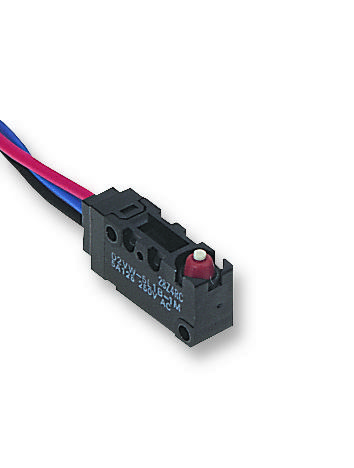

OMRON D2VW51M Watertight Snap Switch
This watertight miniature snap action switch features a high-sealing epoxy resin body meeting IP67 standards, ideal for dusty or water-sprayed environments. Equipped with a V-series internal mechanism, it provides high precision and long service life. Suitable for general load applications at 5 A at 250 VAC and micro-load models, it ensures reliable switching in demanding conditions. Designed with various actuator options, including hinges and rollers, it is RoHS compliant, offering durable performance with excellent resistance to vibration and shock, making it ideal for industrial automation and control systems.
OMRON D2VW51M Watertight Snap Switch Specifications:
- Body meets IP67 standards for watertightness
- Operating speed: 0.1 mm to 1 m/s at pin plunger
- Mechanical operating frequency: 300 operations/min
- Electrical operating frequency: 30 operations/min
- Insulation resistance: 100 MQ min. at 500 VDC
- Contact resistance: Max. 50 mΩ (molded lead wire models: 100 mΩ)
- Dielectric strength: 1,000 VAC between same polarity terminals, 1,500 VAC ground and between terminals and non-current parts
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: 1000 m/s² destruction, 300 m/s² malfunction
- Degree of protection: IEC IP67 (excluding terminals)
- Operating temperature range: -40°C to 85°C
- Humidity: Up to 95% RH (5°C to 35°C)
- Life expectancy: Mechanical ≥10 million operations, Electrical ≥7 million operations
- Weight: Approximately 7g (pin plunger models without wires)
Buy the Buy Omron D2VW Part Number D2VW51M Online
Purchase the Omron waterproof snap switch online today and benefit from dependable sealing, high precision, and long-lasting performance. This compact switch is suitable for industrial applications requiring IP67 protection, offering reliable operation in dusty or water-sprayed environments. Designed with various actuator options including hinges and rollers, it supports load ratings up to 5 A at 250 VAC and features RoHS compliance. Easy to install and operate, this switch guarantees robust performance and durability for automation and control systems. Buy now to ensure quality and reliability for your projects.
Order your Omron Series D2VW D2VW51M waterproof snap action switch today and ensure reliable operation in harsh environments with high sealing standards.
Frequently Asked Questions
Where can I buy OMRON D2VW51M?
You can click on the BUY or RFQ button to purchase D2VW51M from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D2VW51M?
You can download the D2VW51M datasheet or visit the OMRON website for support.
Who is the manufacturer of D2VW51M?
OMRON
