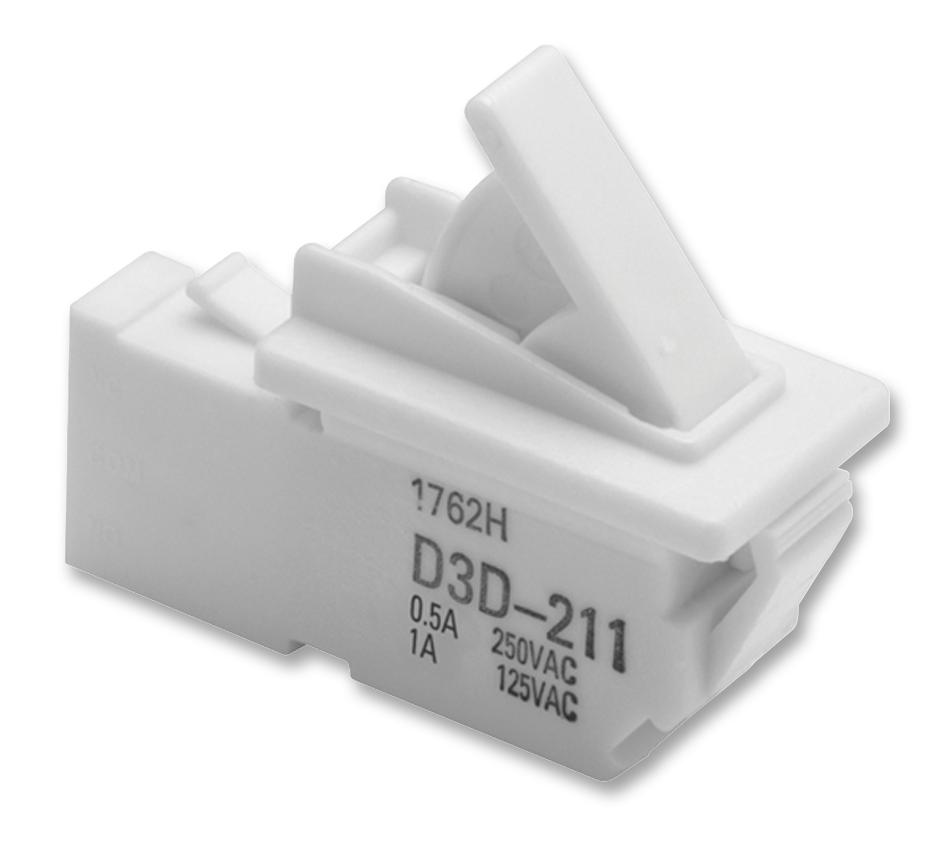

OMRON D3D211 Miniature Door Switch
This is a snap action switch featuring an angled toggle actuator designed for panel mounting. It functions as an on-moment switch with a single-pole double-throw circuit and can handle up to 1 amp of contact current, making it suitable for various industrial control and automation applications. The switch offers high contact reliability with gold crossbar contacts, low noise operation, and RoHS compliance. It has a compact design, multiple actuator options, and a range of electrical ratings supporting resistive loads up to 125 VAC and 0.5A at 250 VAC, making it ideal for precise and durable electronic switching tasks.
OMRON D3D211 Miniature Door Switch Specifications:
- Operating speed: 7.5 to 500 mm/s
- Operating frequency: Mechanical 120 operations/min, Electrical 20 operations/min
- Insulation resistance: 100 MQ min. at 500 VDC
- Contact resistance: 100 mΩ max
- Dielectric strength: 1,000 VAC 50/60 Hz for 1 min between terminals; 1,500 VAC between metal parts and ground
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: Max. 490 m/s² for destruction, 300 m/s² for malfunction
- Degree of protection: IP40 (pin plunger models at free position)
- Operating temperature: -30°C to 60°C (no icing)
- Life expectancy: Mechanical 300,000 operations, Electrical 100,000 operations
- Weight: Approx. 4g
- Rated voltage: 125 VAC 1A resistive load; 250 VAC 0.5A
- Contact form: SPDT (Single Pole Double Throw)
- Contact material: Gold alloy
- Connection: JST HL connector (sold separately), contact SSF-21T-P1.4
- Certifications: UL Recognized, CSA Certified, VDE approved
- RoHS compliant
- Dimensions: Tolerance +0.4 mm, panel cutout approximate 22.94 mm
Buy the Omron D3D – Reliable Miniature Door Switch for Industrial Applications
Order the Omron Miniature Door Switch today and experience precise, reliable switching with a compact design suitable for various industrial automation and control applications. Featuring high contact reliability with gold crossbar contacts, low noise operation, and a resistive load capacity up to 1 amp, this switch provides durability and ease of wiring with disconnectable crimp connectors. Its small size, multiple actuator options, and RoHS compliance make it ideal for panel mounting in demanding environments. Purchase online now for quick delivery and dependable performance in your automation projects.
Get Omron D3D211 today—built for high reliability and precise switching in automation and control systems.
Frequently Asked Questions
Where can I buy OMRON D3D211?
You can click on the BUY or RFQ button to purchase D3D211 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D3D211?
You can download the D3D211 datasheet or visit the OMRON website for support.
Who is the manufacturer of D3D211?
OMRON
