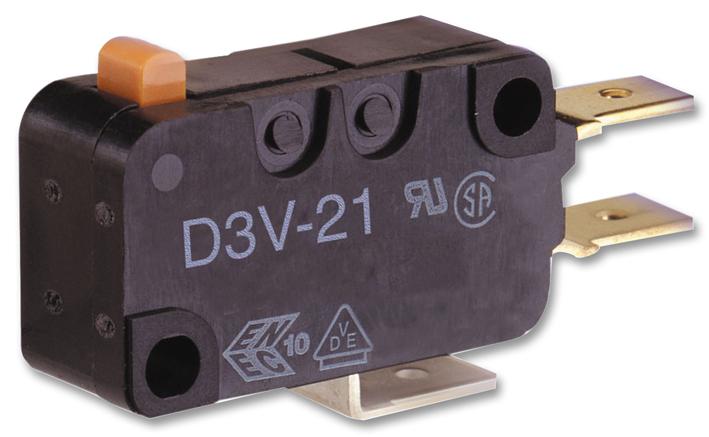

OMRON D3V1621C24 snap switch
This is a snap action switch with a hinge lever actuator and a single-pole double-throw contact configuration. It supports ratings of 16 (3) amperes at 250 VAC, with a maximum operating force of 0.98 N. The switch features quick-connect terminals (#187) for easy wiring and is suitable for various industrial control and automation applications. It is designed for reliable operation, with a compact form factor and multiple actuator options, including internal and external levers, along with various contact and terminal configurations to suit different mounting and wiring needs.
OMRON D3V1621C24 snap switch Specifications:
- Rated Voltage: 250 VAC
- Rated Current: 16 A at 250 VAC
- Contact Form: SPDT
- Maximum Operating Force: 0.98 N (100 gf)
- Contact Material: Silver alloy
- Contact Gap: 1 mm (F gap) or 0.5mm (G gap)
- Terminal Type: Quick-connect (#187)
- Operating Temperature: -25°C to 85°C (models D3V-16)
- Durability: Mechanical 100,000 operations minimum
- Enclosure: IEC IP00, protection against electric shock
- Mounting Holes: Two, 3.1 mm diameter
- Insulation Resistance: 100 MΩ at 500 VDC
- Dielectric Strength: 1,000 VAC between terminals
Buy the Buy Omron D3V1621C24 Part Number D3V1621C24 Online
Purchase your Omron D3V1621C24 online today and benefit from quick shipping and competitive prices. This high-performance snap switch offers precision control with SPDT contacts, quick-connect terminals, and a compact design. Ideal for industrial control, automation, and safety systems, it guarantees durability and reliable operation in demanding environments. Easily install and integrate this switch into your control panels or machinery, ensuring dependable performance for years to come. Order now and enhance your project’s efficiency with trusted quality.
Order your Omron D3V1621C24 Series snap action switch today and ensure reliable control with this high-quality lever-operated component, perfect for automation projects.
Frequently Asked Questions
Where can I buy OMRON D3V1621C24?
You can click on the BUY or RFQ button to purchase D3V1621C24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D3V1621C24?
You can download the D3V1621C24 datasheet or visit the OMRON website for support.
Who is the manufacturer of D3V1621C24?
OMRON
