OMRON D3V1641A4 snap action switch

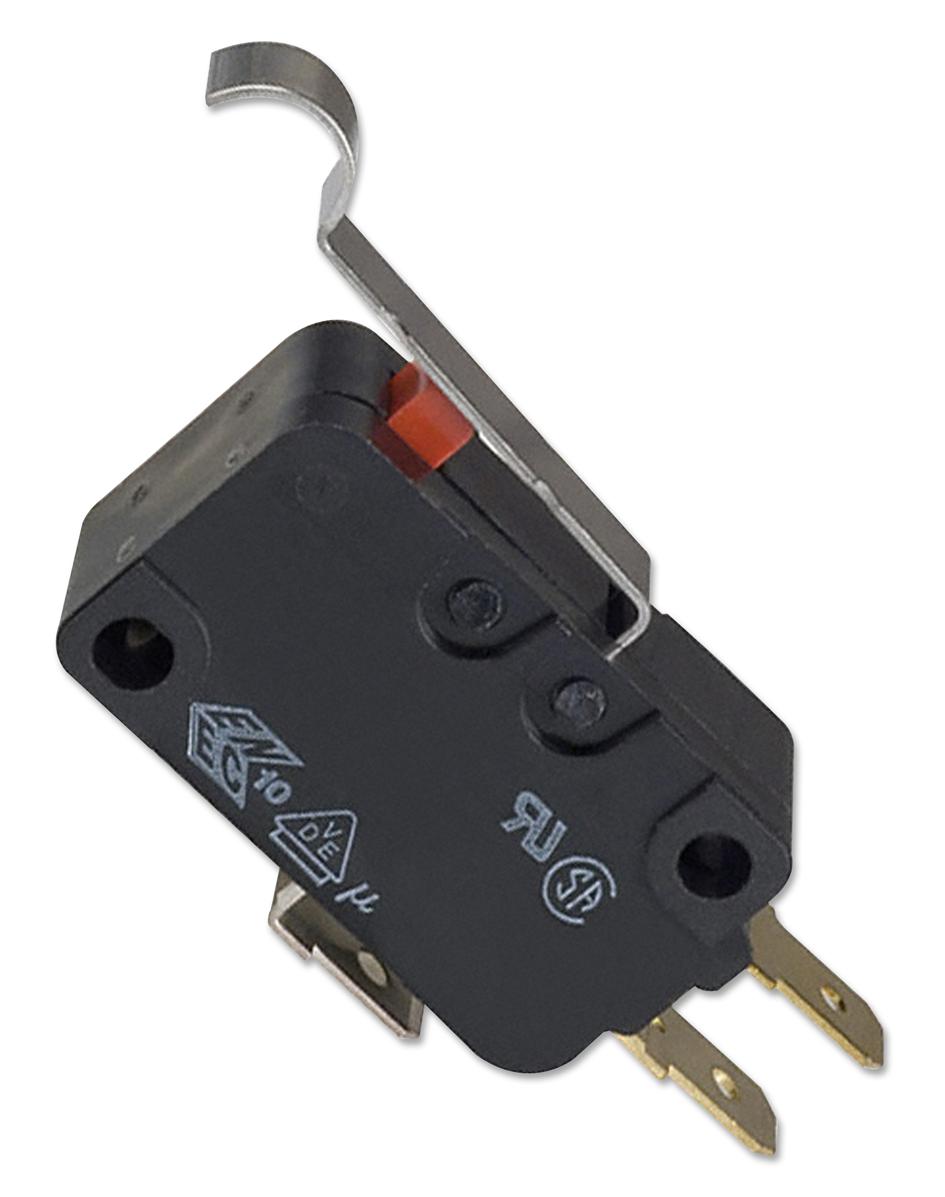

This is a snap action switch equipped with a simulated roller lever actuator. It features a single-pole, double-throw contact configuration rated for 16A at 250 VAC, with a maximum operating force of 0.98 N (100 gf). The switch includes solder or quick-connect terminals (#187) and is suitable for various industrial and control applications. Its robust design ensures reliable switching performance in demanding environments, making it ideal for automation, safety, and machinery controls requiring high current capacity and durable operation.
OMRON D3V1641A4 snap action switch Specifications:
- Rated Voltage: 250 VAC
- Current Rating: 16A
- Contact Configuration: SPDT
- Contact Material: Silver alloy
- Maximum Operating Force: 0.98 N (100 gf)
- Terminals: Solder/quick-connect (#187)
- Operating Speed: 0.1 mm to 1 m/s
- Contact Gap: 0.5 mm
- Insulation Resistance: 100 MΩ (at 500 VDC)
- Dielectric Strength: 1,000 VAC between terminals
- Durability: 50,000 operations minimum
- Ambient Temperature: -25°C to 105°C
- Weight: Approx. 6.2 g
Buy the Buy Omron D3V1641A4 Part Number D3V1641A4 Online
Purchase the Omron snap action switch with simulated roller lever online and enjoy high current capacity, reliable SPDT operation, and quick-connect terminals. Engineered for demanding industrial environments, it offers excellent durability with a minimum of 50,000 cycle life. Perfect for automation, safety, and control systems requiring precise switching and robust construction. Order now to ensure your machinery and system applications operate smoothly with this high-quality switch, backed by dependable performance and quick delivery options.
Buy Omron D3V1641A4 now and experience unmatched reliability and performance with a durable snap action switch featuring simulated roller lever and quick-connect terminals.
Frequently Asked Questions
Where can I buy OMRON D3V1641A4?
You can click on the BUY or RFQ button to purchase D3V1641A4 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D3V1641A4?
You can download the D3V1641A4 datasheet or visit the OMRON website for support.
Who is the manufacturer of D3V1641A4?
OMRON
