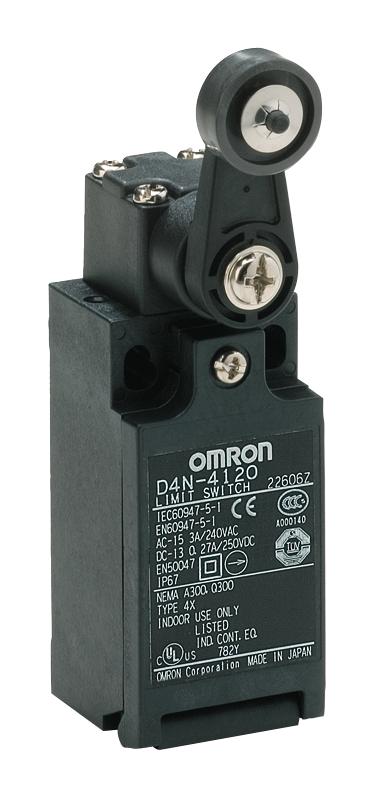

OMRON D4N4120 Safety Limit Switch
The D4N series comprises high-reliability safety limit switches conforming to international standards including UL, EN, and CCC. Designed as versatile, general-purpose switches with various contact configurations such as 1NC/1NO, 2NC, and 3NC, they feature options for snap-action, slow-action, and MBB contacts with direct opening mechanisms. These switches are suitable for use in safety-critical applications, with stainless steel and resin levers, adjustable levers, and robust enclosures. They support a wide range of conduit sizes and mounting configurations, ensuring secure installation and reliable operation under demanding industrial conditions.
OMRON D4N4120 Safety Limit Switch Specifications:
- Conforms to EC Directives: EN60947-5-1, CCC (GB14048.5)
- Operating current: 3A (240 VAC), 0.27A (EN standards)
- Rated operating voltage: Up to 250V
- Durability: Mechanical 15,000,000 operations min., Electrical 500,000 operations with resistive load at 250VAC
- Degree of protection: IP67
- Operating temperature: -30°C to +70°C
- Contact resistance: Max. 25 mΩ
- Insulation resistance: Min. 100 MΩ at 500VDC
- Weight: Approximately 82g to 99g depending on model
- Standards: UL, EN (TUV), CCC certified
- OGM switch head, options for lever-mounted actuation
- Wide conduit compatibility: G12, M20, M12 connector
- Contact forms: 1NC/1NO, 2NC, 3NC, MBB options with direct opening mechanisms
- Operating forces vary from approximately 4.5N to 6.5N depending on model
- Pretravel: 18° to 27°, Total travel: 70° to 80°, Direct opening travel: 3.2mm to 5.8mm
- Mounting possibilities include wall, panel, and conduit configurations with appropriate tightening torque guidelines
- Construction includes resin and stainless steel levers, with mounting holes and conduit caps for secure attachment
Buy the Omron Series D4N Safety Limit Switch: D4N4120
Discover the Omron D4N4120 safety limit switch engineered for industrial safety applications. Featuring multiple contact configurations including 1NC/1NO, 2NC, and 3NC, this switch supports snap-action, slow-action, and MBB contacts, with a direct opening mechanism to ensure safety. Its IP67 rated enclosure provides excellent protection against dust and water. Suitable for various conduit sizes and mounting options, it guarantees reliable, long-term performance in demanding environments. Purchase online today for dependable safety solutions tailored to your automation needs.
Get Omron D4N4120 safety limit switch today—built for precision and long-lasting durability in industrial automation projects.
Frequently Asked Questions
Where can I buy OMRON D4N4120?
You can click on the BUY or RFQ button to purchase D4N4120 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D4N4120?
You can download the D4N4120 datasheet or visit the OMRON website for support.
Who is the manufacturer of D4N4120?
OMRON
