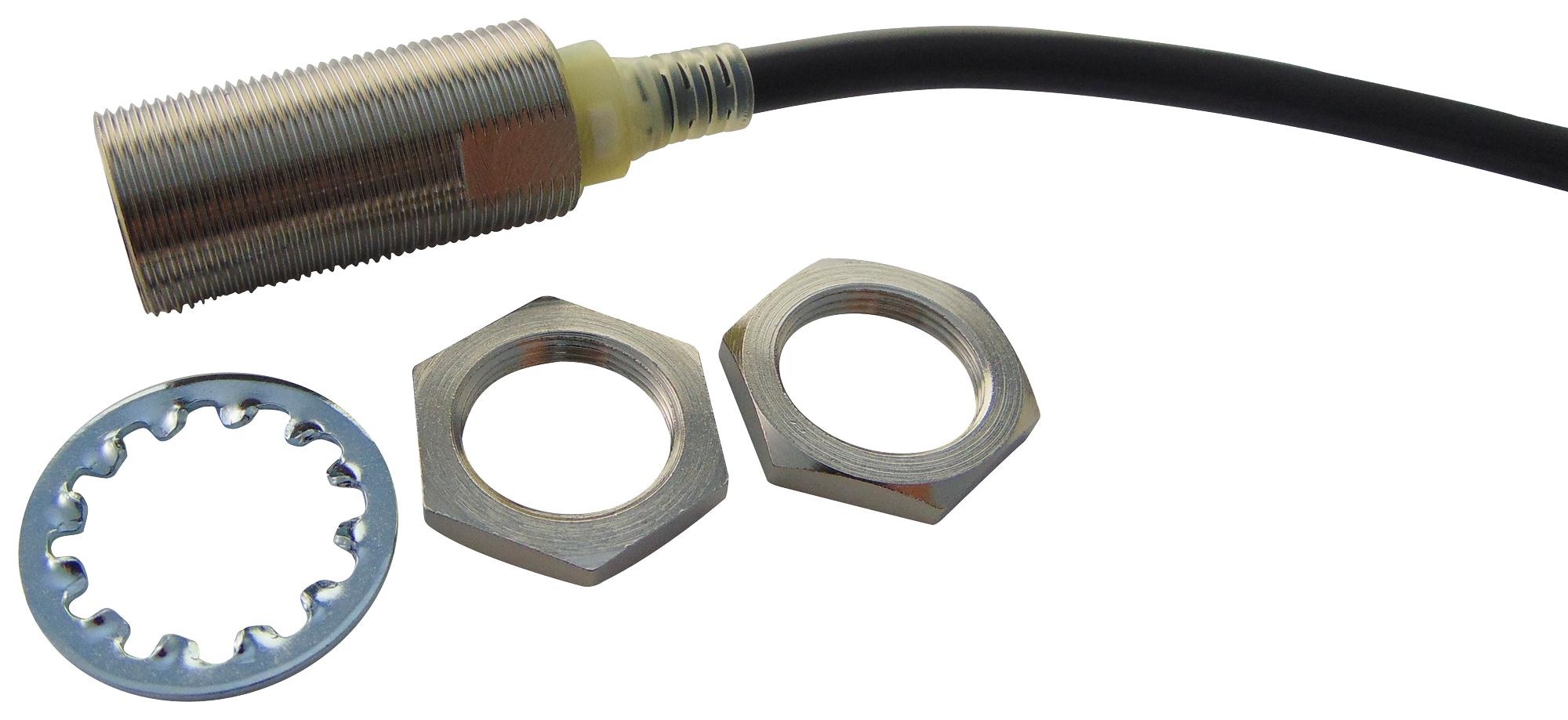

OMRON E2EX7D1N2MOMS Miniature Proximity Sensor
The Small-diameter Proximity Sensor offers ultra-small size and simple installation, with over 104 model variations. It features improved sensing ranges for easy positioning, a high-speed detection frequency up to 5 KHz, and four LEDs for visible status indication. Special mounting brackets reduce installation time, and a stainless-steel Spiral Tube option enhances cable protection (M4, M5 only). Suitable for precise, fast, and reliable proximity detection in industrial applications, this sensor ensures stable performance with load short-circuit and reverse polarity protections. Compatible with metal surfaces and recessed mounting, it excels in compact automation systems.
OMRON E2EX7D1N2MOMS Miniature Proximity Sensor Specifications:
- Size: 3 mm, 4 mm, 6.5 mm, M4, M5
- Sensing distance: 0.8 mm to 4 mm depending on model
- Response frequency: up to 5 KHz
- Power supply: +9 to 30 VDC
- Current consumption: max 10 mA
- Output: PNP/NPN open-collector, normally open or normally closed
- Protection: short-circuit, reverse polarity, surge suppressor
- Material: Stainless steel, PBT, SUS metal
- Operating temperature: -25°C to 70°C
- Degree of protection: IP67
- Mounting: threaded, unthreaded cylindrical, with brackets
- Cable length: 0.3 m to 5 m options
- Optical indicators: 4 LEDs visible from 360°
- Cable: Vinyl-insulated round cable with 3 conductors
- Additional: stainless-steel spiral tube available (M4, M5)
- Certifications: Safety standards available upon certification
- Shock resistance: 500 m/s², destruction tested
- Vibration resistance: 10-85 Hz, double amplitude
- Suitable for metal detection, automation, material handling
Buy the Omron E2EX7D1N2MOMS – Reliable Proximity Sensor for Industrial Applications
Discover the compact and reliable proximity sensor designed for industrial automation. Featuring fast response up to 5 KHz, four LED indicators for clear status, and stainless-steel protection options. Easy to install with special mounting brackets, it ensures stable detection in tight spaces. Suitable for metal detection and automation systems, this sensor provides high accuracy and durability, backed by protective circuits for short-circuit and reverse polarity. Purchase online now and boost your manufacturing efficiency with trusted Omron quality.
Order your Omron E2EX7D1N2MOMS proximity sensor today and enhance your automation projects with dependable speed and stable detection performance.
