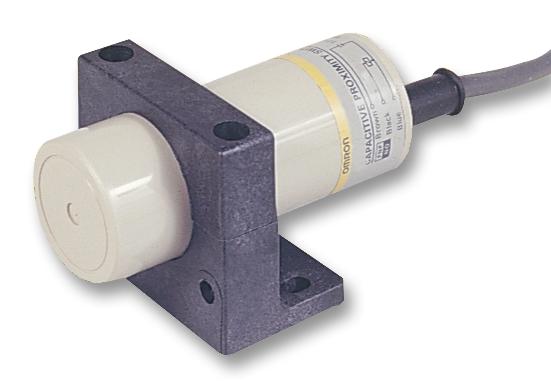

OMRON E2KC25MF1 Capacitive Sensor
The Long-distance Capacitive Sensor offers adjustable sensitivity for precise object detection across extended ranges up to 25 mm. It features noise-resistant models suitable for environments with strong electromagnetic interference, providing reliable performance whether used with metal or dielectric objects. The sensor's sealed housing IP66 protects against dust and water, making it ideal for industrial applications. It supports various operation modes, including normally open and normally closed contacts, with AC and DC power supply options. Easy mounting with accessories, protection circuits, and adjustable sensing distances ensure versatile and dependable operation in challenging conditions.
OMRON E2KC25MF1 Capacitive Sensor Specifications:
- Sensing distance: 3 to 25 mm (standard models), 3 to 20 mm (noise-resistant models)
- Detection object: Conductors and dielectrics, grounded metal plate 50 x 50 x 1 mm
- Response frequency: 70 Hz (standard), 40 Hz (noise-resistant models)
- Power supply: 12 to 24 VDC (±10%), 100 to 220 VAC (50/60 Hz), ripple: 10%
- Current consumption: 10 to 16 mA (DC models), 2 to 4 mA (AC models)
- Output: Resistive load 5-200 mA, residual voltage: max. 9 V (DC), max. 10 V (AC)
- Operation indicators: RED for detection, optional yellow for operation
- Ambient temperature: -25°C to 70°C, humidity: 35% to 95%, no condensation
- Protection: IP66, reverse polarity, surge suppressor, load short-circuit protection
- Vibration resistance: 10-55 Hz, 1.5 mm double amplitude, 2 hours in X, Y, Z axes
- Shock resistance: 500 m/s², 10 times in X, Y, Z axes
- Housing: Heat-resistant ABS resin, mounting bracket included
- Cable: Vinyl-insulated, 2- or 3-conductor, 2 m length
Buy the Buy Omron Long-distance Capacitive Sensor Part Number E2KC25MF1 Online
Order the Omron Capacitive Sensor online today and experience reliable long-distance object detection with adjustable sensitivity, noise resistance, and IP66 protection. Designed for industrial applications, this sensor offers versatile mounting options, easy wiring, and durable construction to ensure consistent performance in challenging environments. Whether detecting conductors or dielectric objects, the sensor's adjustable sensing range and built-in protection circuits provide optimal operation, making it a smart choice for automation, manufacturing, and machinery integration. Purchase now to enhance your system’s efficiency and reliability.
Get Omron E2KC25MF1 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy OMRON E2KC25MF1?
You can click on the BUY or RFQ button to purchase E2KC25MF1 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E2KC25MF1?
You can download the E2KC25MF1 datasheet or visit the OMRON website for support.
Who is the manufacturer of E2KC25MF1?
OMRON
