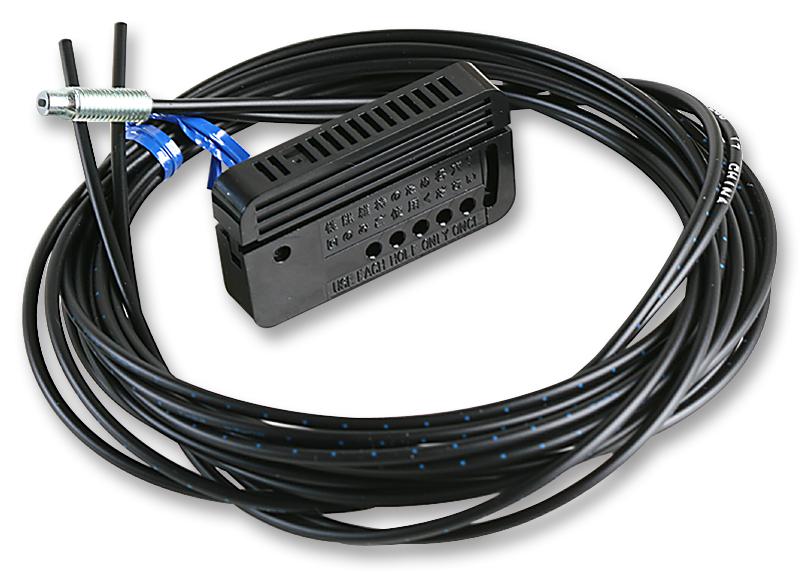

OMRON E32DC200 Fiber Sensor
The E32DC200 is a high-performance, chemically resistant fiber optic sensing unit designed for precise detection in challenging environments. Equipped with advanced features like flexible fiber optics, small bending radius, and built-in lenses, it offers stable detection of minute objects, even on glossy or tilted surfaces. Suitable for liquid-level, area detection, and vacuum applications, it ensures reliable operation up to 200°C with excellent chemical and oil resistance, making it ideal for industrial automation in harsh conditions.
OMRON E32DC200 Fiber Sensor Specifications:
- Physical Dimensions: Diameter 2 mm, Length 2 m
- Material: Fluororesin coating for chemical and oil resistance
- Sensing Distance: 4,000 mm with 2 m fiber cable on each side
- Application Types: Liquid-level, Area detection, Vacuum environments
- Operating Temperature Range: -40°C to 200°C
- Response Time: 16 ms in Giga-power mode, 250 µs in high-speed mode, 1 ms in standard mode, 50 µs in super-high-speed mode
- Bending Radius: 25 mm (minimum)
- Fiber Type: Flexible, coaxial, and bend-resistant options available
- Certification: CE exempt (no electrical components)
- Connector Type: Optional fiber connectors for extension and maintenance
- Environmental Resistance: Chemical, oil, heat, and bending resistant
Buy the Omron Series Fiber Sensor: Detection Module: E32DC200
Get the Omron Series E32DC200 fiber sensor online today, a reliable solution for liquid-level, area detection, and vacuum applications in demanding environments. Its advanced design includes chemical and oil resistance, precise sensing over 4 meters, and operation up to 200°C. Perfect for industries requiring stable detection and durability against harsh conditions. Ensure seamless integration and highest performance by purchasing this high-quality fiber sensor now for your automation needs and boost productivity with industrial-grade reliability.
Order your Omron Series E32DC200 fiber sensor today and ensure reliable detection in harsh industrial conditions with maximum chemical and heat resistance.
Frequently Asked Questions
Where can I buy OMRON E32DC200?
You can click on the BUY or RFQ button to purchase E32DC200 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E32DC200?
You can download the E32DC200 datasheet or visit the OMRON website for support.
Who is the manufacturer of E32DC200?
OMRON
