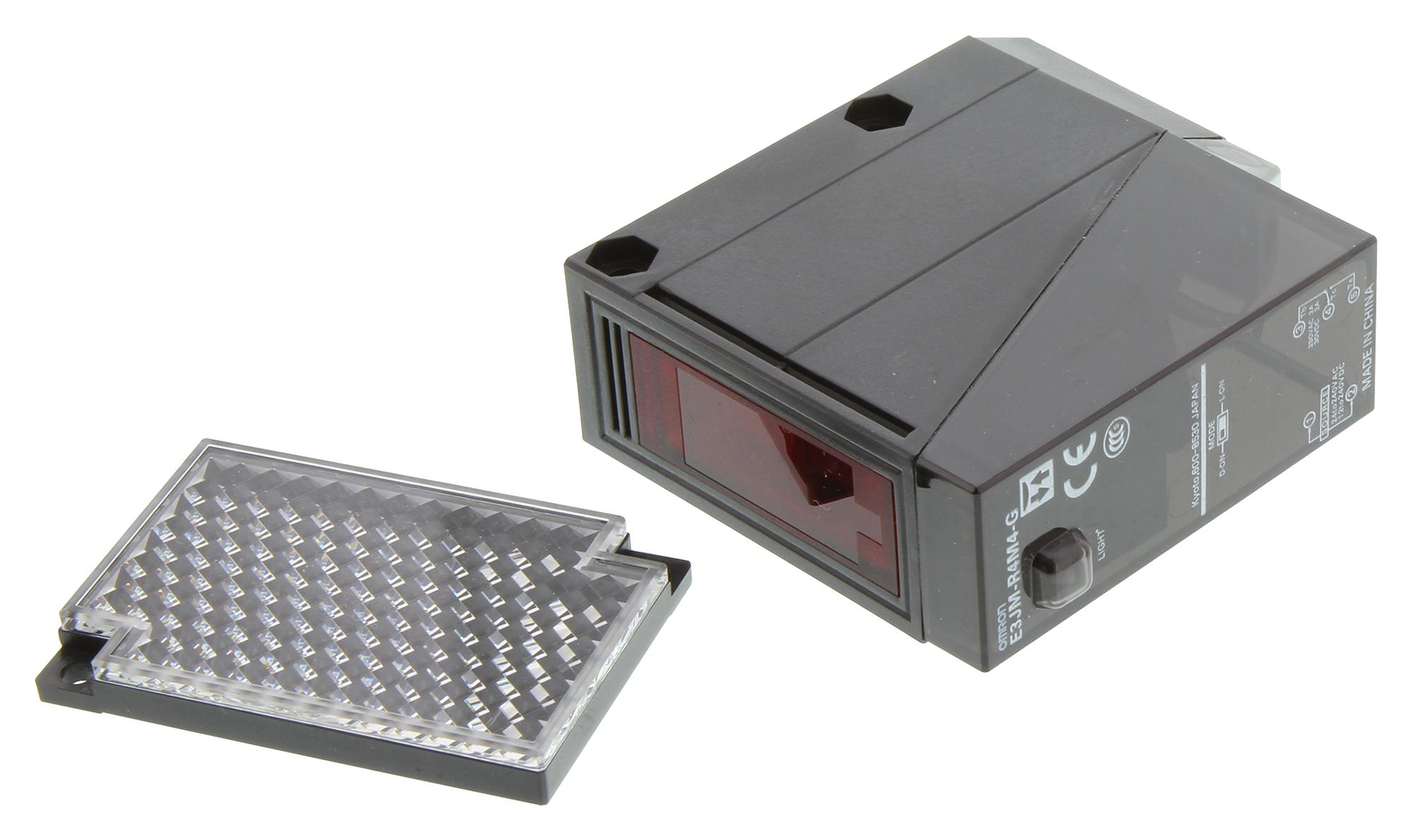

OMRON E3JMR4M4G Photoelectric Sensor
The E3JM series from Omron are versatile optical sensors designed for industrial automation and sensing applications. Compatible with AC/DC power supplies, these sensors feature a built-in timer with adjustable delay functions, relay or solid-state outputs, and multiple sensing methods including through-beam, retro-reflective, and diffuse reflectivity. They operate over a wide voltage range from 12VDC to 240VAC, with models suited for various distances from 1 meter to 10 meters. The sensors are rugged, IP66 rated, and include sensitivity adjustment. Ideal for objects detection, position sensing, and process control in manufacturing environments.
OMRON E3JMR4M4G Photoelectric Sensor Specifications:
- Power Supply Voltage: 12-240 VDC+10%, ripple 10%; 24-240 VAC+10%, 50/60Hz
- Sensing Distance: 1m to 10m depending on model and reflector used
- Output: Relay (SPDT, 250 VAC, 3A max) or DC SSR (48 VDC, 100 mA max)
- Response Time: Relay output 30ms, DC SSR output 5ms
- Timer Function: ON-delay, OFF-delay, One-shot; delay time 0.1 to 5 seconds (approximate)
- Ambient Temp: -25°C to +55°C, Storage: -30°C to +70°C
- Protection: IP66 rated, shock resistance 500 m/s², vibration resistance 10-55 Hz, 1.5 mm amplitude
- Material: ABS case, methacrylic lens, polycarbonate cover, mounted with iron bracket
- Indicators: Power (red), Operation (red), and Timer indicator (on models with timer)
- Connections via terminal block, suitable cable diameter 6-8 mm
- Reflector options include E39-R1, E39-R3, E39-RS1, E39-RS2, E39-RS3
- Operating Angle: 3°-20° for through-beam, 1°-5° for retro-reflective
- Standards: UL, CSA approved, IEC IP66 compliant
Buy the Buy Omron E3JM Part Number R4M4G Online
Enhance your automation setup with the Omron E3JM photoelectric sensors. Featuring multi voltage compatibility, adjustable timer functions, and reliable relay or SSR outputs, these sensors are perfect for precise object detection. Suitable for through-beam, retro-reflective, or diffuse applications, they operate effectively from -25°C to +55°C with IP66 rated durability. Easy wiring through terminal blocks, with various reflectors and mounting brackets included, make installation straightforward. Purchase online now for dependable sensing solutions in manufacturing and industrial environments.
Order your Omron Series R4M4G photoelectric sensor today and ensure reliable object detection and process automation for your industrial projects.
Frequently Asked Questions
Where can I buy OMRON E3JMR4M4G?
You can click on the BUY or RFQ button to purchase E3JMR4M4G from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E3JMR4M4G?
You can download the E3JMR4M4G datasheet or visit the OMRON website for support.
Who is the manufacturer of E3JMR4M4G?
OMRON
