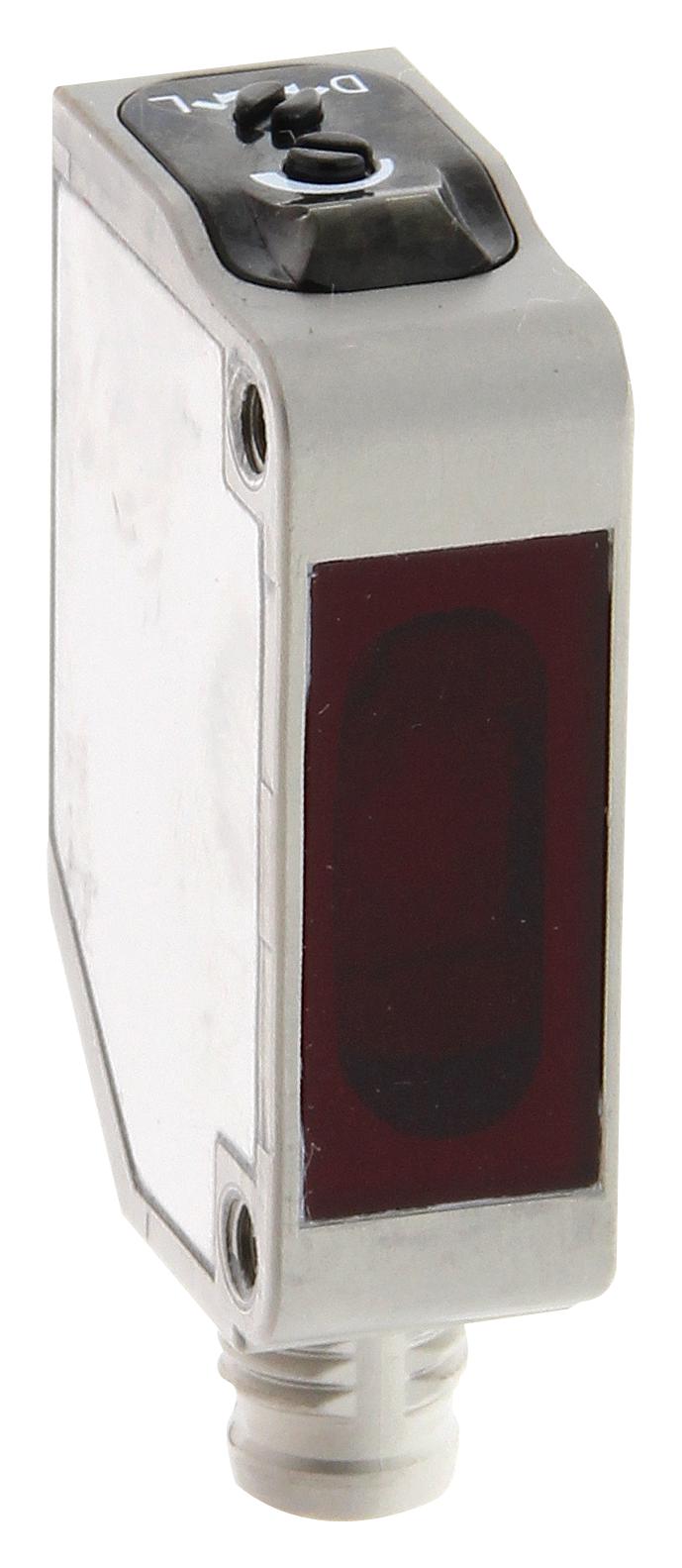

OMRON E3ZMB86T Hygienic Stainless Steel Photoelectric Sensor
The E3ZMB86T is a compact photoelectric sensor designed for hygienic environments with a stainless steel housing, ideal for food processing and washdown applications. Featuring IP69K protection, it withstands high-pressure water jets and disinfectants. The sensor uses advanced optical technology with adjustable sensitivity, making it suitable for detecting small objects at distances up to 200 mm. Its durable SUS316L case ensures corrosion resistance, while the laser-engraved lot numbers and minimal indentations promote hygiene. Suitable for food, beverage, and pharmaceutical industries requiring high durability and sanitation.
OMRON E3ZMB86T Hygienic Stainless Steel Photoelectric Sensor Specifications:
- Material: SUS316L stainless steel housing
- Protection Degree: IP69K (DIN 40050-9)
- Detection Range: 10 to 200 mm (varies by model)
- Sensing Distance: Up to 200 mm
- Optical Plate: PMMA (polymethylmethacrylate)
- Indicator Cover: Polyethersulfone (PES)
- Sensitivity Adjustment: Yes (via PEEK switch)
- Waterproof Circuits: Yes
- Power Supply: 10 to 30 VDC, ripple included
- Current Consumption: Max. 40 mA (Emitter and Receiver)
- Connection: Pre-wired (2 m) or M8 4-pin connector
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +70°C
- Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude
- Shock Resistance: 500 m/s², 3 times in X, Y, Z directions
- Standards Certified: Ecolab certified
Buy the Buy Omron E3ZMB86T Online
Enhance your food safety and processing with Omron's hygienic photoelectric sensor. Featuring a stainless steel SUS316L housing, IP69K protection for high-pressure cleaning, and adjustable sensitivity, it ensures reliable object detection even in demanding environments. Its corrosion-resistant construction and minimal indentation reduce contamination risks. Perfect for processing, wrapping, and packing raw food, meats, and beverages, this sensor guarantees hygienic operation, long-term durability, and precise sensing performance in harsh washing and disinfecting conditions.
Buy Omron E3ZMB86T now and experience unmatched durability with high-pressure wash resistance and precision detection suitable for food industry applications.
Frequently Asked Questions
Where can I buy OMRON E3ZMB86T?
You can click on the BUY or RFQ button to purchase E3ZMB86T from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E3ZMB86T?
You can download the E3ZMB86T datasheet or visit the OMRON website for support.
Who is the manufacturer of E3ZMB86T?
OMRON
