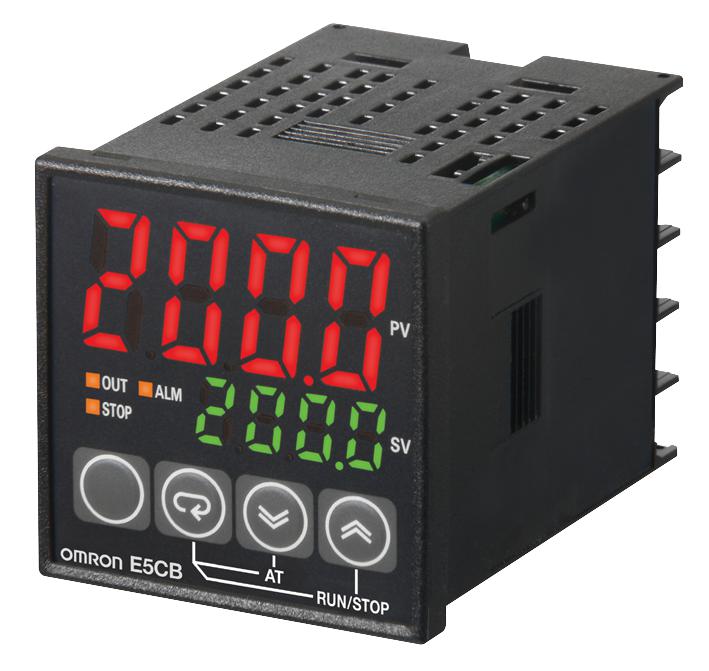

OMRON E5CBQ1PAC100240 Industrial Temperature Controller
The E5CB temperature controller offers precise heater control with features like a large 16 mm character display, fast sampling at 250 ms, and simple setup with few parameters. Compact and reliable, it supports thermocouple and platinum resistance thermometer inputs, making it suitable for various industrial heating applications. Designed with IP66 front panel waterproofing and easy panel mounting options, it provides stable control for temperature systems. Its advanced control methods include ON/OFF and PID with auto-tuning, ensuring optimal process management with high accuracy and durability.
OMRON E5CBQ1PAC100240 Industrial Temperature Controller Specifications:
- Power supply voltage: 100 to 240 VAC 50/60 Hz, 24 VAC 50/60 Hz, or 24 VDC
- Display: 16.2 mm character height, 48 x 48 mm size, IP66 front panel
- Control methods: ON/OFF, PID with auto-tuning
- Sampling period: 250 ms
- Sensor inputs: Thermocouple (K, J, T, R, S), Pt100 (platinum resistance thermometer)
- Control output: Relay 250 VAC, 3 A; Voltage output for SSR drive: 12 VDC, 21 mA
- Alarm output: SPST-NO, 250 VAC, 1 A
- Operating temperature: 10°C to 55°C; Storage temperature: -25°C to 65°C
- Humidity: 25% to 85%; Weight: approx. 100 g
- Enclosure rating: Front IP66, rear IP20; Terminal section: P00
- Standards: UL 61010-1, CSA C22.2 No. 1010-1, EN61326, IEC61010-1
Buy the Buy OMRON Temperature Controller Part Number E5CBQ1PAC100240 Online
Enhance your industrial heating controls by ordering the OMRON Series E5CB temperature controller online today. Featuring a large, easy-to-read display, fast sampling at 250 ms, support for thermocouple and platinum resistance thermometer inputs, IP66 waterproof front, and versatile control methods including PID auto-tuning and ON/OFF, this controller offers high accuracy and durability. Suitable for harsh environments, it ensures stable temperature regulation in various industrial applications. Purchase now for reliable and efficient temperature management.
Order your OMRON Series E5CBQ1PAC100240 temperature controller today and enhance your heating system with reliable, precise temperature management.
