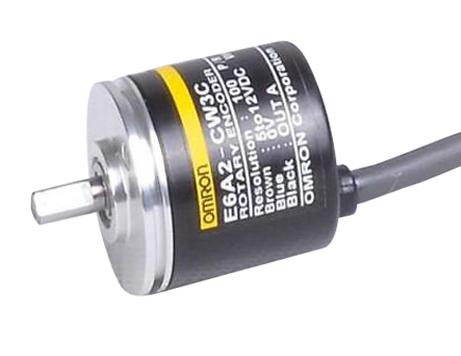

OMRON E6A2CW3C200 Incremental Encoder
The E6A2-C rotary encoder features a compact design with a 25 mm external diameter and a resolution of up to 500 pulses per revolution. It offers reliable incremental signal output, suitable for precise motion detection in industrial automation. The encoder incorporates durable construction with aluminum alloy housing, SUS420J2 shaft, and galvanised iron mounting bracket. It supports a voltage supply of 5 to 12 VDC and outputs phases A, B, and Z with open-collector or NPN configurations, ensuring high responsiveness and stable performance under various operating conditions.
OMRON E6A2CW3C200 Incremental Encoder Specifications:
- External Diameter: 25 mm
- Resolution: Up to 500 pulses per revolution
- Power Supply Voltage: 5 to 12 VDC with 10% tolerance
- Output Configuration: Phases A, B, Z; open-collector or NPN output options
- Maximum Response Frequency: 30 kHz
- Output Resistance: 2kΩ
- Output Current: 20 mA
- Residual Voltage: 0.4 V at 30 mA sink current
- Operating Temperature Range: -10 to 55°C
- Ambient Humidity: 35% to 85% (no condensation)
- Protection Class: IP50
- Case Material: Aluminum alloy
- Shaft Material: SUS420J2
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude
- Shock Resistance: 500 m/s² for 3 times in X, Y, Z directions
Buy the Omron E6A2-CW3C 25 mm – Reliable Incremental Encoder for Industrial Applications
Purchase the Omron E6A2-CW3C 25 mm incremental encoder online today and enjoy reliable performance for your industrial automation needs. This compact yet high-resolution encoder provides stable incremental signals with a maximum of 500 pulses per revolution, supporting voltage inputs from 5 to 12 VDC. It features durable aluminum housing, SUS420J2 shaft, and IP50 protection—ideal for precise motion sensing in manufacturing and automation systems. Easy to install with pre-wired cables and compatible accessories, ensuring smooth integration and long-term operation.
Order your Omron series E6A2-CW3C 25 mm incremental encoder today and ensure precise and dependable motion detection in your industrial projects.
Frequently Asked Questions
Where can I buy OMRON E6A2CW3C200?
You can click on the BUY or RFQ button to purchase E6A2CW3C200 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part E6A2CW3C200?
You can download the E6A2CW3C200 datasheet or visit the OMRON website for support.
Who is the manufacturer of E6A2CW3C200?
OMRON
