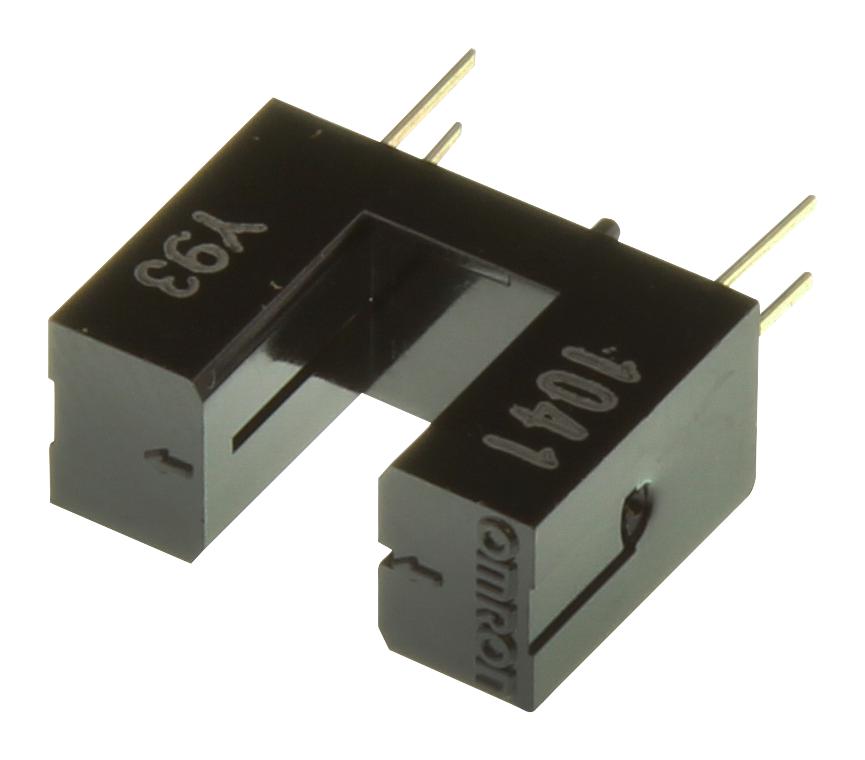

OMRON EESX1041 Photomicrosensor Transmissive
The EE-SX1041 is a high-resolution transmissive photomicrosensor featuring a PCB mounting design, 0.5-mm wide aperture, and compact dimensions suitable for precise object detection. It operates with a forward current of up to 50 mA and a collector-emitter voltage of 30 V. The sensor exhibits fast response times with a rising time of 5 μs and falling time of 4 μs, optimized for industrial automation, presence detection, and safety applications. Its optical configuration provides reliable operation within -25°C to 95°C ambient temperature range, ensuring durability in various environments.
OMRON EESX1041 Photomicrosensor Transmissive Specifications:
- Emitter Forward Voltage: 1.2 V typ., 1.5 V max. at 30 mA
- Collector-Emitter Voltage: 30 V
- Collector Current: 20 mA
- Dark Current: 2 nA typ., 200 nA max. at 10 V
- Response Time: 5 μs rising, 4 μs falling
- Ambient Temperature Range: -25°C to 95°C
- Dimensions: Not specified, compact PCB mount
- Peak Wavelength: 940 nm
- Optical Aperture: 0.5 mm wide
- Sensing Distance: Approx. 18 mm at typical conditions
- Lead Lengths: 6 mm, 10 mm, 18 mm, 30 mm
- Soldering Temp: 260°C for 10 seconds
- Storage Temperature: -30°C to 100°C
Buy the Omron Series Photomicrosensor: EE-SX1041
Order the Omron EE-SX1041 photomicrosensor online today for reliable high-resolution object detection in automation, safety, and industrial applications. Its compact PCB mounting design, 0.5-mm aperture, and fast response times ensure precise sensing and durability under harsh conditions. With a broad ambient temperature range from -25°C to 95°C and a wavelength of 940 nm, it is ideal for integration into various systems. Purchase now to enhance your automation projects with this robust, efficient, and easy-to-install key component.
Get Omron EE-SX1041 today—built for precision detection and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy OMRON EESX1041?
You can click on the BUY or RFQ button to purchase EESX1041 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part EESX1041?
You can download the EESX1041 datasheet or visit the OMRON website for support.
Who is the manufacturer of EESX1041?
OMRON
