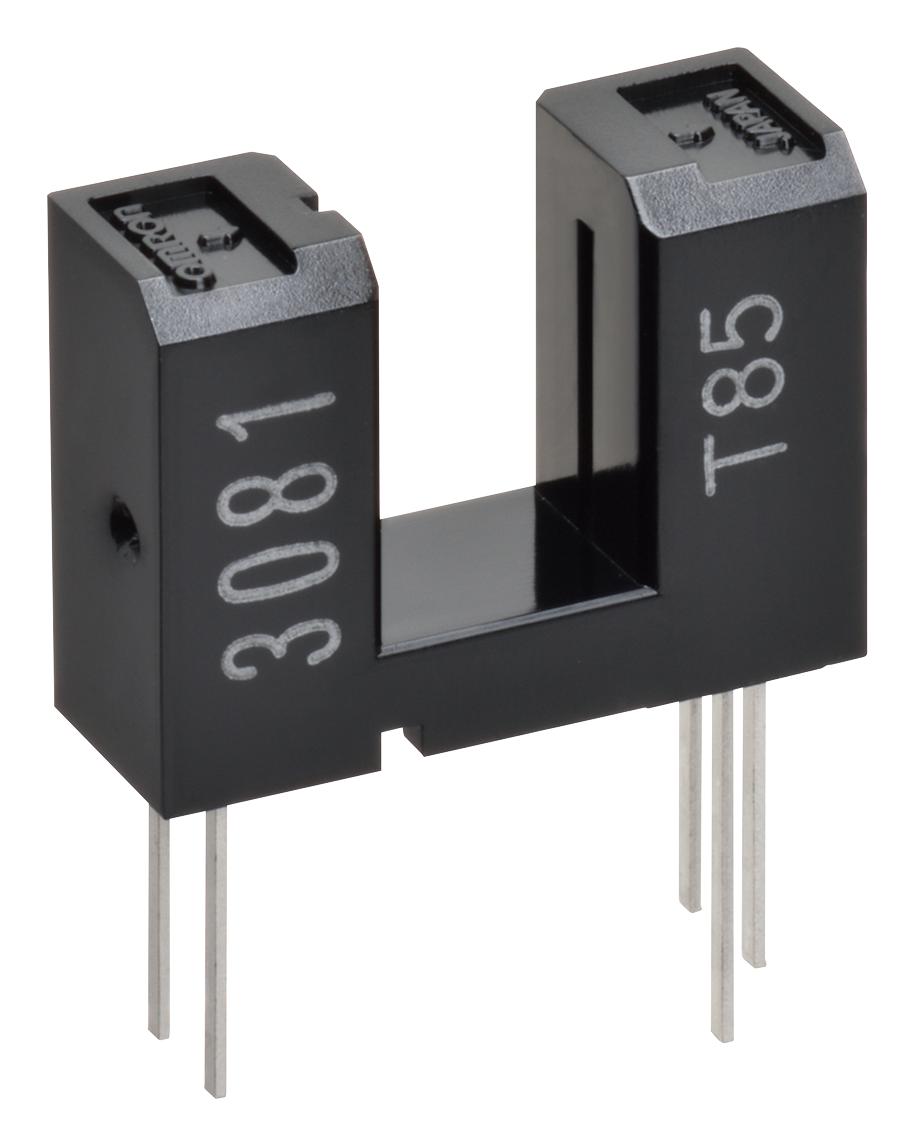

OMRON EESX3081 Optical Sensor
The EE-SX3081 and EE-SX4081 are photomicrosensors designed for transmissive optical sensing applications. Featuring built-in IC chips with detectors and amplifiers, these sensors provide high resolution with a 0.5-mm sensing aperture and wide supply voltage ranges from 4.5 to 16 VDC. The EE-SX3081 operates as a dark ON model, while the EE-SX4081 functions as a light ON model. They are compatible with C-MOS and TTL outputs, have temperature compensation, and include features like high response frequency, low delay time, and operation across a broad temperature range, suitable for precise object detection in automation and industrial systems.
OMRON EESX3081 Optical Sensor Specifications:
- Supply Voltage Range: 4.5 to 16 VDC
- Detection Aperture: 0.5 mm width
- Output Type: Dark ON (EE-SX3081), Light ON (EE-SX4081)
- Response Frequency: Minimum 3 KHz
- Response Delay Time: Approximately 3 µs
- Forward Voltage (Emitter): 1.2 V typ., 1.5 V max.
- Collector Dissipation: 250 mW
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +65°C
- Termination: Standard lead dimensions, compatible with automatic soldering
- Reverse Voltage (Emitter): 4 V
- Output Voltage: Up to 28 V
- Internal Circuit Power Supply Voltage: 16 V
- Output Current: Max 16 mA
Buy the Omron Series Transmissive Photomicrosensor: EESX3081
Discover the high-precision Omron Series optical sensor, EESX3081, designed for transmissive sensing in automation. With a compact size, 0.5 mm aperture, wide voltage compatibility, and built-in temperature compensation, it ensures stable operation and fast response times for industrial applications. Easy to connect with C-MOS and TTL outputs, it features a response frequency of at least 3 KHz, making it suitable for fast and accurate detection tasks. Perfect for industrial automation, manufacturing, and robotics, order online today for reliable optical sensing performance.
Order your Omron Series EESX3081 transmissive photomicrosensor today and give your automation systems high precision object detection with reliable optical sensing.
Frequently Asked Questions
Where can I buy OMRON EESX3081?
You can click on the BUY or RFQ button to purchase EESX3081 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part EESX3081?
You can download the EESX3081 datasheet or visit the OMRON website for support.
Who is the manufacturer of EESX3081?
OMRON
