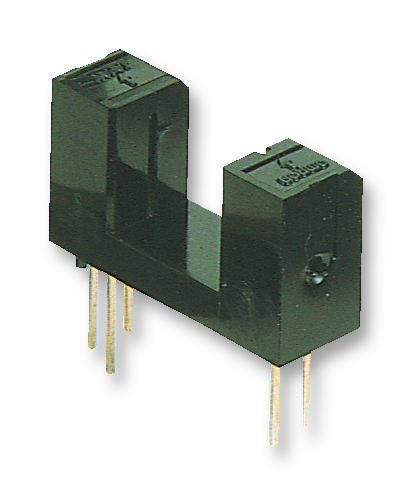

OMRON EESX384 Photomicrosensor Transmissive
The EE-SX384/EE-SX484 are photomicrosensors designed for transmissive optical sensing with high resolution, featuring a wide supply voltage range from 4.5 to 16 VDC. The sensors incorporate built-in detector elements with temperature compensation circuits, enabling reliable operation with C-MOS and TTL logic compatible outputs. The EE-SX384 features dark ON, while the EE-SX484 is light ON. They operate in ambient temperatures from -40°C to 75°C, with quick response times, low power consumption, and diverse electrical characteristics suitable for precise detection in industrial applications.
OMRON EESX384 Photomicrosensor Transmissive Specifications:
- Supply Voltage: 4.5 to 16 VDC
- Emitter Forward Voltage: Typical 1.2 V, Max 1.5 V at 20 mA
- Reverse Voltage: 4 V
- Detector Max Output Voltage: 28 V
- Output Current: 16 mA
- Operating Temperature Range: -40°C to 75°C
- Storage Temperature Range: -40°C to 85°C
- Soldering Temperature: 260°C (within 10 seconds)
- Response Frequency: Minimum 3 kHz
- Hysteresis: Typical 15%
- LED Current (OFF): Max 8 mA, (ON): Max 8 mA
- Response Delay Times: Approx. 20 ns (OFF to ON and ON to OFF)
- Dimensions: Incorporate IC chip with a 0.5 mm wide sensing aperture, units in millimeters
- Certifications: UL Listed, CSA Certified
Buy the Buy Omron Photomicrosensor Transmissive Part Number EESX384 Online
Purchase the Omron EESX384 transmissive photomicrosensor online to benefit from high resolution, fast response, and reliable detection performance. This sensor features a wide supply voltage range from 4.5 to 16 VDC, with built-in temperature compensation for consistent operation across various environments. Its compact design with a 0.5 mm sensing aperture makes it ideal for precise detection in industrial automation, robotics, and manufacturing systems. Enjoy quick delivery and seamless online ordering for your project needs.
Order your Omron Series EESX384 transmissive photo sensor today and enhance your automation projects with dependable optical detection.
Frequently Asked Questions
Where can I buy OMRON EESX384?
You can click on the BUY or RFQ button to purchase EESX384 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part EESX384?
You can download the EESX384 datasheet or visit the OMRON website for support.
Who is the manufacturer of EESX384?
OMRON
