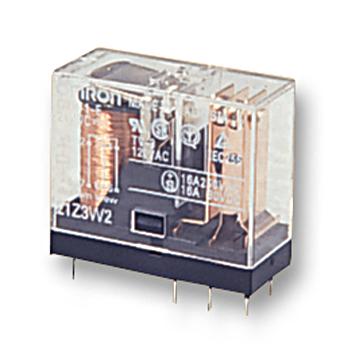

OMRON G2R1EDC5 Power PCB Relay
This high-capacity, non-latching relay features a semi-sealed design with PCB terminals. Supporting up to 16 amperes current at 250V AC, it has a coil voltage of 5V DC and offers reliable switching for industrial automation and control applications. Its robust contact material ensures durability, and it is suitable for resistive and inductive loads. Compliant with UL, CSA, and CE standards, this relay provides excellent performance, safety, and stability with a creepage distance of 8.0 mm between coil and contact, making it ideal for demanding electronic systems.
OMRON G2R1EDC5 Power PCB Relay Specifications:
- Contact form: SPDT (Single Pole Double Throw)
- Contact material: Silver alloy
- Maximum load: 16 A at 250 V AC, 5 A at 30 V DC
- Operating coil voltage: 5 V DC
- Coil resistance: 100 Ω at 23°C
- Max. switching capacity: 4,000 VA, 480 W
- Insulation resistance: 1,000 MΩ at 500 V DC
- Dielectric strength: 5,000 VAC between coil and contacts
- Ambient temperature: -40 to 70°C
- Vibration resistance: Mechanical durability 10 to 55 Hz / 1.5 mm double amplitude
- Shock resistance: Mechanical durability 1,000 m/s² (approx. 100 G)
- Compliance: UL, CSA, CE approved
- Creepage distance: 8.0 mm
- Mounting: PCB terminals, semi-sealed construction
Buy the Buy Omron Power PCB Relay Part Number G2R1EDC5 Online
Order the Omron Power PCB Relay G2R1EDC5 online today and experience dependable switching capacity supporting 16A at 250V AC. Its compact, semi-sealed design with PCB terminals ensures easy integration into your control systems. Built with high-quality silver alloy contacts, it is UL, CSA, and CE approved for safety and performance. The relay is ideal for industrial automation, control panels, and various electronic applications requiring robust, high-current switching. Purchase now to improve your system’s reliability and operational efficiency with a trusted brand.
Get Omron G2R1EDC5 today—high-capacity, durable relay designed for reliable industrial switching and long-term performance.
Frequently Asked Questions
Where can I buy OMRON G2R1EDC5?
You can click on the BUY or RFQ button to purchase G2R1EDC5 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G2R1EDC5?
You can download the G2R1EDC5 datasheet or visit the OMRON website for support.
Who is the manufacturer of G2R1EDC5?
OMRON
