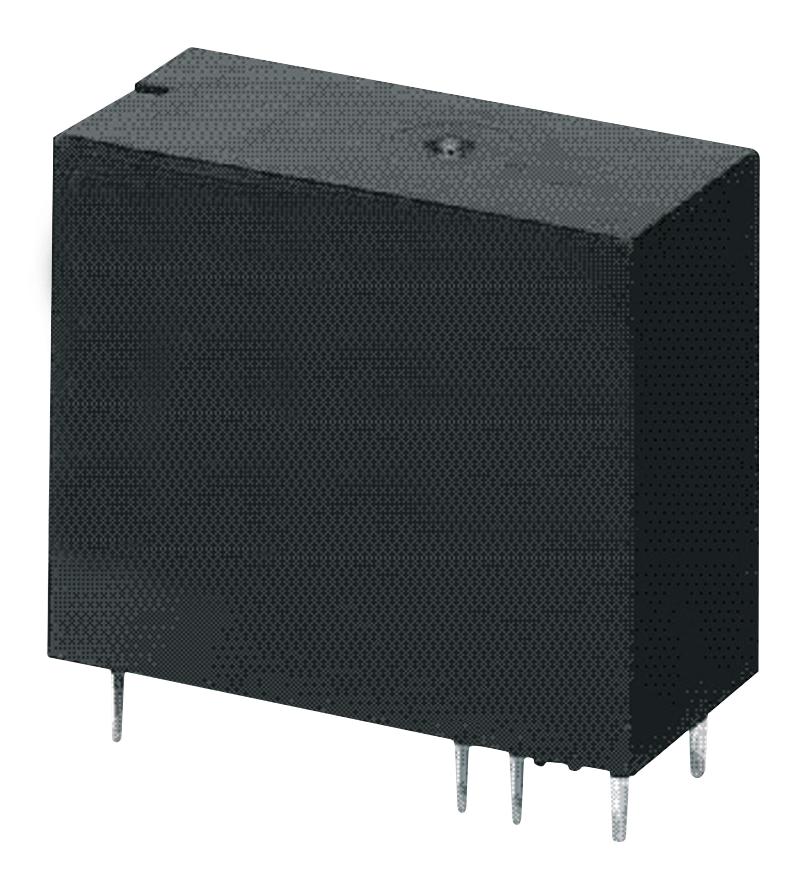

OMRON G2R248DC48 PCB Power Relay
The G2R PCB Power Relay is a versatile general-purpose relay suitable for various industrial applications. It features both AC and DC types with a dielectric strength of 5,000 V between coil and contacts, surge resistance of 10,000 V, and available in single-pole 10 A and double-pole 5 A configurations. Designed for PCB mounting, it offers sealed and unsealed options, with high-capacity and flux-protection variants. Ideal for automation, control systems, and electronic device switching, it ensures reliable performance with RoHS compliance and standard connection terminals.
OMRON G2R248DC48 PCB Power Relay Specifications:
- Number of Poles: 1-pole or 2-pole
- Contact Rating: 10 A (AC), 5 A (DC)
- Dielectric Strength: 5,000 V between coil and contacts
- Surge Resistance: 10,000 V
- Coil Voltage: 12 VDC, 24 VDC, 48 VDC, 12 VAC, 24 VAC, 100 VAC, 200 VAC
- Rated Coil Resistance: varies by coil voltage
- Enclosure: Sealed / Unsealed options available
- Terminal Type: PCB terminals, Quick-connect terminals
- Operating Time: within 15 ms to 20 ms for set, 10 ms for release
- Mechanical Life: 78,000 operations min.
- Electrical Life: 1,800,000 operations min.
- Operating Temperature: -40°C to +70°C
- Insulation Resistance: 7,000 MΩ min. at 500 VDC
- Certifications: UL Recognized, CSA Certified, RoHS Compliant
- Dimensions: Based on specific PCB mounting hole tolerances, approx. 28.8 mm width
Buy the OMRON Series G2R PCB Power Relay: G2R248DC48
Enhance your automation and electronic control systems with the reliable G2R PCB Power Relay. Designed for PCB mounting, it offers high switching capacity, surge resistance, and safety features like dielectric strength of 5,000 V. Suitable for AC and DC applications with ratings up to 10 A and 5 A respectively, this relay ensures durable performance in industrial environments. Easily order online today and benefit from fast delivery, RoHS compliance, and proven Omron quality for all your switching needs.
Buy OMROM G2R248DC48 PCB Power Relay now and experience unmatched reliability and high-capacity switching performance for your control systems.
Frequently Asked Questions
Where can I buy OMRON G2R248DC48?
You can click on the BUY or RFQ button to purchase G2R248DC48 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G2R248DC48?
You can download the G2R248DC48 datasheet or visit the OMRON website for support.
Who is the manufacturer of G2R248DC48?
OMRON
