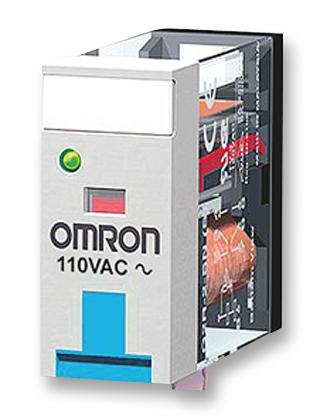

OMRON G2R2SN110ACS Power Relay
The G2R-L1-S (S) is a high-performance general-purpose relay designed for industrial applications that require reliable switching. It features a slim, space-saving plug-in design, reducing wiring work by 60% when used with compatible sockets. The relay includes built-in mechanical operation indicators, lockable test buttons, and optional LED indicators. It supports high switching power up to 10 A for one pole and complies with UL/CSA, VDE standards. Ideal for automation, control systems, and industrial equipment, with extensive accessories for mounting and wiring.
OMRON G2R2SN110ACS Power Relay Specifications:
- Number of Poles: 1 or 2 poles (SPDT or DPDT]
- Rated Coil Voltage: 6V, 12V, 24V, 48V, 110V, 120V, 230V, 240V
- Coil Resistance: Varies by voltage (e.g., 253Ω at 24V AC, 9,566Ω at 110V AC)
- Maximum Coil Current: 43.5mA at 24V DC, 9.5mA at 110V AC
- Power Consumption: 0.53W at 24V DC, 0.9VA at 110V AC
- Contact Ratings: 10 A at 250 VAC (resistive load), 7.5 A at 250 VAC, 5 A at 250 VAC
- Contact Resistance: Max 100mΩ
- Operate Time: Max 15 ms (AC), 10 ms (DC)
- Release Time: Max 20 ms
- Insulation Resistance: Min 1,000 MΩ at 500 VDC
- Dielectric Strength: 3,000 VAC between contacts, 1,000 VAC between coil and contacts
- Vibration Resistance: 10-55Hz, 0.75mm amplitude
- Ambient Temperature: -40°C to +70°C
- Weight: Approx. 20 g
- Certifications: UL, CSA, VDE, CE-marked
Buy the Omron G2R-L1-S – Reliable Power Plug-in Relay for Industrial Applications
Enhance your control systems with the Omron G2R-L1-S relay. Its space-saving plug-in design, high current capacity up to 10 A, and built-in indicators ensure reliable operation. Suitable for automation and industrial equipment, it simplifies wiring and improves system dependability. The relay is UL and CE certified, meeting international safety standards. Affordable and easy to install, this relay is perfect for managing high power loads efficiently in various industrial environments. Order online today and streamline your automation projects.
Buy Omron G2R-L1-S relay now and experience unmatched reliability and high switching power for industrial automation needs.
