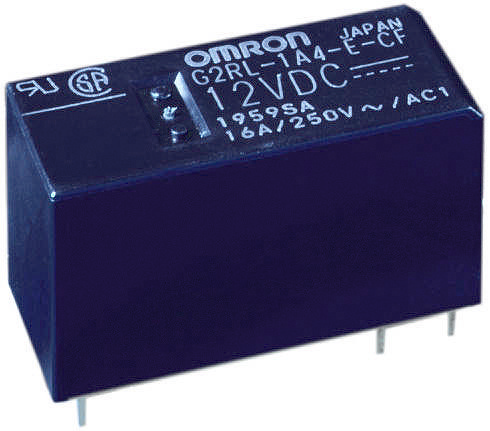

OMRON G2RL1AECVDC12 PCB Power Relay
The G2RL series is a low-profile PCB power relay designed for miniature equipment, with a height of only 15.7 mm. It features various contact configurations including single pole, double pole, and high-capacity types up to 16 A, suitable for industrial automation, home appliances, and control systems. Conforming to global safety standards such as UL508, CSA22.2, and IEC/EN 60335-1, the relay offers reliable switching performance with coil insulation class F, robust construction, and RoHS compliance. It ensures safety and durability with protection against corrosive atmospheres and high temperature tolerance up to 105°C.
OMRON G2RL1AECVDC12 PCB Power Relay Specifications:
- Dimensions: Height 15.7 mm, PCB mounting holes with 8 mm clearance and creepage
- Contact material: Ag-alloy (Cd free)
- Rated carry current: 12 A to 16 A, depending on model
- Max switching voltage: 440 VAC, 300 VAC (resistive load)
- Rated insulation voltage: 250 V
- Ambient temperature: -40°C to 105°C (depending on model)
- Pollution degree: 3 (Flux protection / Sealed)
- Insulation: Reinforced coil-contact circuit with group lila insulation
- Mechanical endurance: Up to 20 million operations
- Vibration resistance: 10-65 Hz with a 0.76 mm amplitude
- Shock resistance: 1000 m/s² with no malfunctions
- Conforms to UL Recognized and CSA Certified standards
- Coil insulations classified as Class F, UL1446
- Creepage and clearance distances: 8 mm minimum
Buy the Omron G2RL1A – Reliable PCB Power Relay for Industrial Applications
Order the Omron G2RL1A online today to ensure top-tier switching performance and safety in your control panels. This low-profile relay offers high-capacity contact ratings, conformance to international safety standards, and RoHS compliance. Perfect for industrial machinery and home appliances, it features a compact design measuring only 15.7 mm in height, making it ideal for miniature equipment. Reliable and durable, this relay ensures proper insulation and performance within operating temperatures up to 105°C. Buy online now to enhance your automation reliability.
Get Omron G2RL1A today—built for precision and long-lasting durability in your control systems and automation projects.
Frequently Asked Questions
Where can I buy OMRON G2RL1AECVDC12?
You can click on the BUY or RFQ button to purchase G2RL1AECVDC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G2RL1AECVDC12?
You can download the G2RL1AECVDC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of G2RL1AECVDC12?
OMRON
