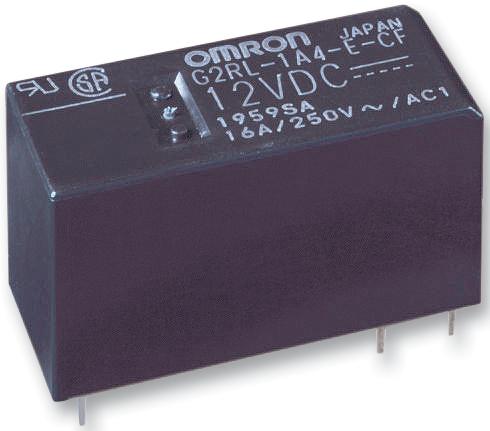

OMRON G2RL1AHDC12 PCB Power Relay
The G2RL is a compact PCB power relay featuring a low profile height of just 15.7 mm, suitable for miniature equipment. It offers a variety of single pole, double pole, high-capacity (16 A), and high-sensitivity (250 mW) models. The relay complies with standards such as VDE, UL508, CSA22.2, and IEC/EN 60335-1, with environmental ratings for ambient temperatures of 85°C and 105°C. It is ideal for home appliances, industrial machinery, and OA equipment, providing reliable switching performance with flux protection and sealed options for versatile applications.
OMRON G2RL1AHDC12 PCB Power Relay Specifications:
- Height: 15.7 mm maximum
- Contact Ratings: 12 A at 250 VAC, 8 A at 250 VAC (high-capacity models), 16 A at 250 VAC
- Coil Voltages: 5 VDC, 12 VDC, 24 VDC, 48 VDC
- Coil Resistance: Measured at 23°C, tolerance ±10%
- Operating Temperature: -40°C to 105°C depending on model
- Enclosure Rating: Sealed, flux protection options available
- Electrical Endurance: 30,000 to 400,000 operations depending on model and switching parameters
- Vibration and Shock Resistance: Meets IEC standards with up to 4,000 m/s² shock resistance
- Certifications: UL Recognized, CSA Certified, VDE
- Dimensions: Approximately 18.7 mm in height, mounting holes 35 mm apart, terminal arrangement with internal connections for PCB installation
Buy the Buy Omron G2RL Part Number G2RL1AHDC12 Online
Order the Omron G2RL PCB Power Relay online today and benefit from high-capacity, low-profile performance conforming to global safety and quality standards. Designed for use in home appliances, industrial machinery, and automation systems, this relay offers reliable switching, flux protection, and sealed options. With a compact height of only 15.7 mm, it saves space while providing robust electrical endurance and versatile mounting options. Purchase now to ensure dependable operation in your electronic or industrial projects.
Buy Omron G2RL1AHDC12 now and enjoy reliable switching performance with low-profile design suitable for miniature equipment and industrial automation.
Frequently Asked Questions
Where can I buy OMRON G2RL1AHDC12?
You can click on the BUY or RFQ button to purchase G2RL1AHDC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G2RL1AHDC12?
You can download the G2RL1AHDC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of G2RL1AHDC12?
OMRON
