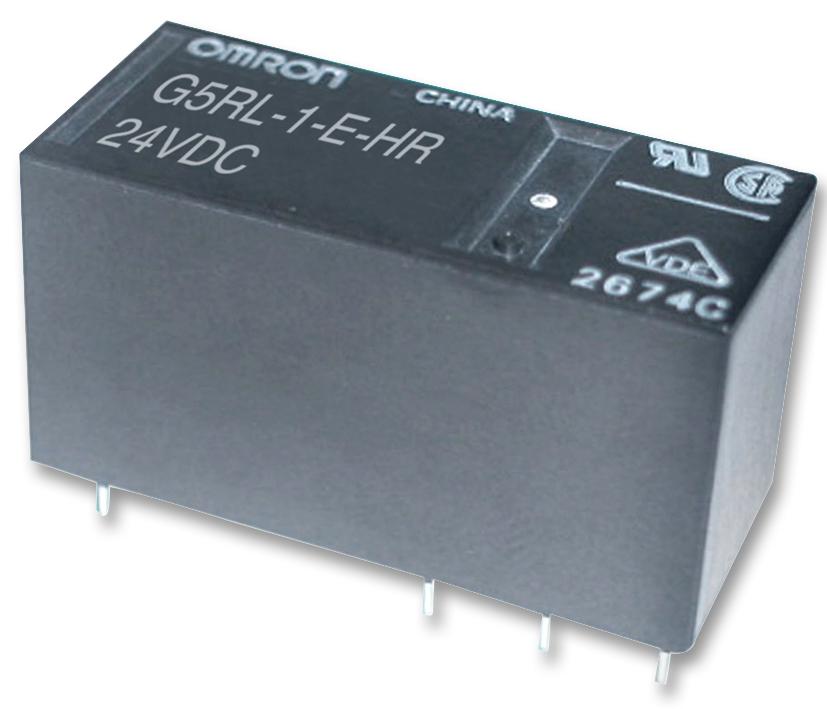

OMRON G5RL1AELNDC24 Power Relay
The G5RL series PCB power relay is a low-profile, RoHS-compliant relay designed for various industrial and automation applications. It features a compact height of 15.7 mm, high dielectric strength, and creepage distance of 8 mm between coil and contacts. Available with AC coils, high-inrush capacity, and low-noise models, it offers a reliable solution with impulse withstand voltage of 10 kV. Suitable for control systems requiring durable, high-capacity switching with precise specifications, it ensures safety and performance in various environments.
OMRON G5RL1AELNDC24 Power Relay Specifications:
- Height: 15.7 mm
- Creepage distance: 8 mm between coil and contacts
- Impulse withstand voltage: 10 kV
- Coil Ratings: 5VDC, 12VDC, 24VDC, 48VDC, 24V, 100V, 115/120V, 230/240VAC
- Contact Ratings: 12A at 250 VAC resistive, 16A at 250 VAC resistive, 5A at 250 VAC resistive
- Operate Time: 15 ms max.
- Release Time: 5 ms max.
- Dielectric Strength: 6,000 VAC, 1 min.
- Vibration Resistance: 10-55 Hz, 0.75 mm single amplitude
- Shock Resistance: 100 m/s², 11 ms
- Durability: 10 million operations (mechanical), 100,000 operations (electrical)
- Ambient Temperature: -40°C to 85°C
- Insulation Resistance: 1,000 MΩ min. at 500 VDC
- Weight: Approximately 10 g
- Compliance: UL, CSA, RoHS
Buy the Omron Series G5RL PCB Power Relay: G5RL1AELNDC24
Experience the reliability and compact design of the Omron G5RL power relay. Perfect for industrial control, automation, and switching applications, this relay features high dielectric strength, high-inrush capacity, and low-noise models. With a height of just 15.7 mm and an impulse withstand voltage of 10 kV, it ensures safety and performance across various environments. Easy to install and RoHS compliant, it’s the ideal component for building robust, long-lasting control systems in demanding conditions.
Get Omron G5RL1AELNDC24 today—built for precision, durability, and reliable switching performance in control systems.
Frequently Asked Questions
Where can I buy OMRON G5RL1AELNDC24?
You can click on the BUY or RFQ button to purchase G5RL1AELNDC24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G5RL1AELNDC24?
You can download the G5RL1AELNDC24 datasheet or visit the OMRON website for support.
Who is the manufacturer of G5RL1AELNDC24?
OMRON
