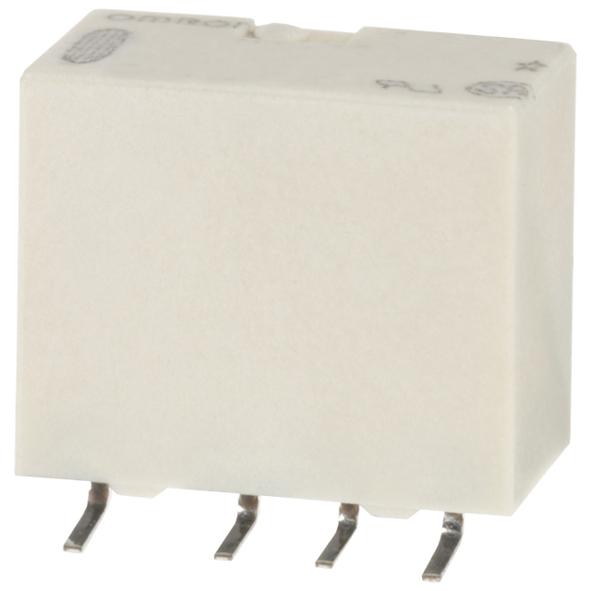

OMRON G6J2FLYTRDC5 Surface Mount Relay
The surface-mount relay is a compact, high-reliability component designed for automated PCB assembly, offering 3 VDC to 24 VDC coil ratings, DPDT contact configuration, and conforming to UL, CSA, and RoHS standards. It features dielectric strength of 1,500 VAC, impulse withstand voltage of 2,500 V, and a switching capacity of up to 37.5 VA. Available in multiple terminal types (gull-wing, shortened leads, through-hole), its rugged construction makes it ideal for communication, measurement, computer peripherals, and automation systems requiring durable, high-efficiency switching solutions. Precise soldering and handling ensure operational stability.
OMRON G6J2FLYTRDC5 Surface Mount Relay Specifications:
- Dimensions: 5.7 x 10.6 x 9 mm (W x L x H)
- Contact Resistance: 100 mΩ max.
- Maximum Switching Capacity: 37.5 VA, 30 W
- Rated Load: 1A at 125 VAC, 1A at 30 VDC
- Dielectric Strength: 1,500 VAC coil to contacts
- Impulse Withstand Voltage: 2,500 V for 2 x 10⁻¹ s
- Coil Voltage: 3, 4.5, 5, 12, 24 VDC
- Coil Resistance: 62.5 Ω at 3 VDC, up to 2,600.5 Ω at 24 VDC
- Travel Time: 3 ms (operate and release)
- Vibration Resistance: 10 to 55 Hz with 2.5-mm amplitude
- Ambient Temperature: -40°C to 85°C
- Humidity Range: 5% to 85% RH
- Weight: Approx. 1.0 g
- Standards: UL60950, CSA C22.2 No. 60950, RoHS compliant
- Terminal Types: PCB through-hole, gull-wing SMT, short leads SMT
- Packaging: Tape and reel, stick packing options
Buy the Omron Series G6J2FLYTRDC5 Surface Mount Relay: G6J2FLYTRDC5
Order the Omron G6J-Y surface-mount relay online today and experience dependable switching performance with dielectric strength of 1,500 VAC and impulse withstand voltage of 2,500 V. Its compact size of 5.7 x 10.6 x 9 mm enables high-density mounting, perfect for automation, measurement, and communication equipment. With multiple terminal options, conforming to UL, CSA, and RoHS standards, this relay ensures robust operation in harsh environments. Secure your supply chain by purchasing this high-quality relay easily through our online store, tailored for industrial and electronic manufacturing needs.
Get Omron G6J-Y relay today—built for high durability and reliable performance in automation and communication systems.
Frequently Asked Questions
Where can I buy OMRON G6J2FLYTRDC5?
You can click on the BUY or RFQ button to purchase G6J2FLYTRDC5 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G6J2FLYTRDC5?
You can download the G6J2FLYTRDC5 datasheet or visit the OMRON website for support.
Who is the manufacturer of G6J2FLYTRDC5?
OMRON
