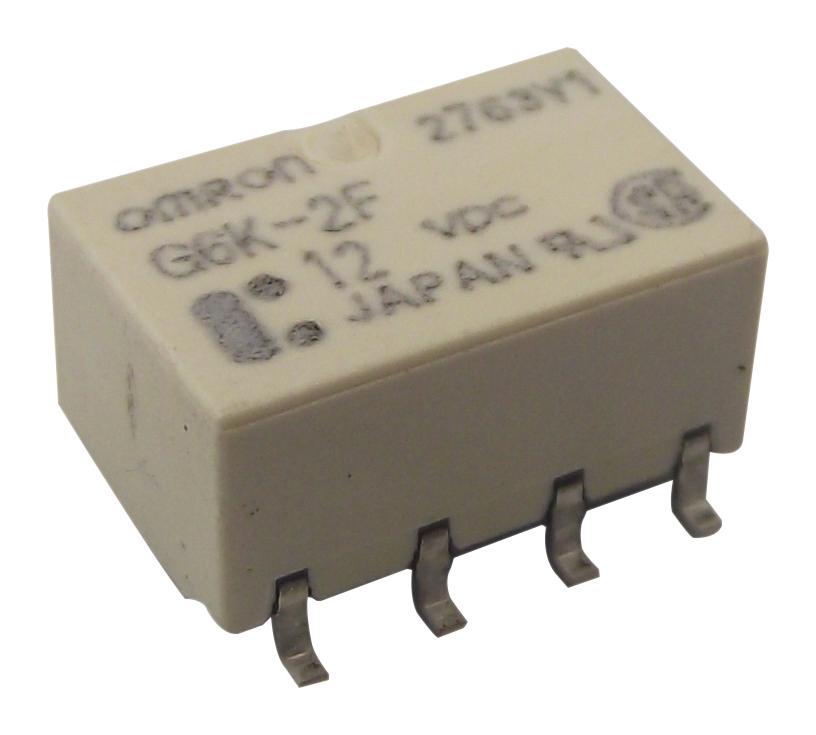

OMRON G6K2FYDC12 12V DC Control Relay
This 12 V DC non-latching relay features a DPDT configuration with surface-mount gull-wing terminals, ideal for PCB applications requiring high surge and relay performance. It meets UL1950 basic insulation standards at 125 V, operates efficiently within -40 to +85°C, and is RoHS compliant. Designed based on Omron’s reliable design principles, it offers excellent board space savings, with a rated resistive load of 0.3 A at 125 VAC and 1 A at 30 VDC, making it suitable for communications, automation, and control systems that demand durability and consistent operation.
OMRON G6K2FYDC12 12V DC Control Relay Specifications:
- Coil Voltage: 12 V DC
- Configuration: DPDT (Double Pole Double Throw)
- Terminal Type: Surface-mount gull-wing
- Rated Load Resistive: 0.3 A at 125 VAC, 1 A at 30 VDC
- Contact Material: Silver (Ag), Au clad
- Maximum Carry Current: 1 A
- Max Operating Voltage: 125 VAC, 30 VDC
- Power Consumption: Approximate, embedded in design
- Ambient Temperature Range: -40°C to +85°C
- Insulation Resistance: 1,000 MΩ at 500 VDC
- Dielectric Strength: 1,500 VAC for 1 min between coil and contacts
- Surge Withstand Voltage: 2,500 V between coil and contacts
- Vibration Resistance: 10 to 55 Hz, 5.0 mm amplitude
- Shock Resistance: 1,000 m/s²
- Mechanical Life: 50 million operations minimum
- Electrical Life: 100,000 operations minimum at rated load
- RoHS Compliant
Buy the Omron G6K – Reliable Switches for Industrial Applications
Purchase the reliable 12V DC control relay with DPDT configuration online today. Designed for industrial automation, it offers excellent durability, UL1950 compliance, and RoHS certification. Perfect for PCB mounting, it supports high surge ratings and operates reliably from -40°C to 85°C. This relay features surface-mount gull-wing terminals, making its installation straightforward and space-efficient. Ensure your projects benefit from durable, high-performance relays by ordering now and enjoy prompt delivery and excellent support for all your automation needs.
Order your Omron G6K Series G6K2FYDC12 relay today and ensure dependable switching performance in your automation and control projects.
Frequently Asked Questions
Where can I buy OMRON G6K2FYDC12?
You can click on the BUY or RFQ button to purchase G6K2FYDC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G6K2FYDC12?
You can download the G6K2FYDC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of G6K2FYDC12?
OMRON
