OMRON G6QE1ADC24 Power Relay
The G6QE PCB power relay offers high switching capacity with a 32A resistive load at 250 VAC, suitable for industrial and home appliance applications. This miniature, low-height relay features high dielectric strength of 10 kV impulse withstand voltage, ensuring reliable operation. Its coil is designed for reduced power consumption of approximately 172 mW at 35% holding voltage, with a rated voltage range from 5 VDC to 24 VDC. Conforming to cULus, EN, CQC, and RoHS standards, the relay is ideal for power load switching in various electrical systems, providing durability with 50,000 operating cycles at rated conditions.
OMRON G6QE1ADC24 Power Relay Specifications:
- Contact Material: Ag Alloy (Cd free)
- Rated Load: 32 A at 250 VAC (Resistive Load)
- Max Switching Voltage: AC 277 V
- Rated Carry Current: 32A
- Coil Resistance: 116.7 Ω at 12 VDC, 58.3 Ω at 24 VDC
- Coil Operating Voltage: 5, 12, 24 VDC (not specified for each model but within the rated range)
- Impulse Withstand Voltage: 10 KV coil-contact
- Operate Time: 20 ms max
- Release Time: 10 ms max
- Insulation Resistance: 1000 MΩ min.
- Dielectric Strength: 2000 VAC between contacts
- Ambient Operating Temperature: -40°C to +85°C
- Mechanical Durability: 1,000,000 operations
- Electrical Durability: 100,000 operations at rated load
- Dimensions: Approximate base width 30.5 mm, terminal spacing 20.5 mm
- Approval Certifications: UL, cULus, EN, CQC, RoHS

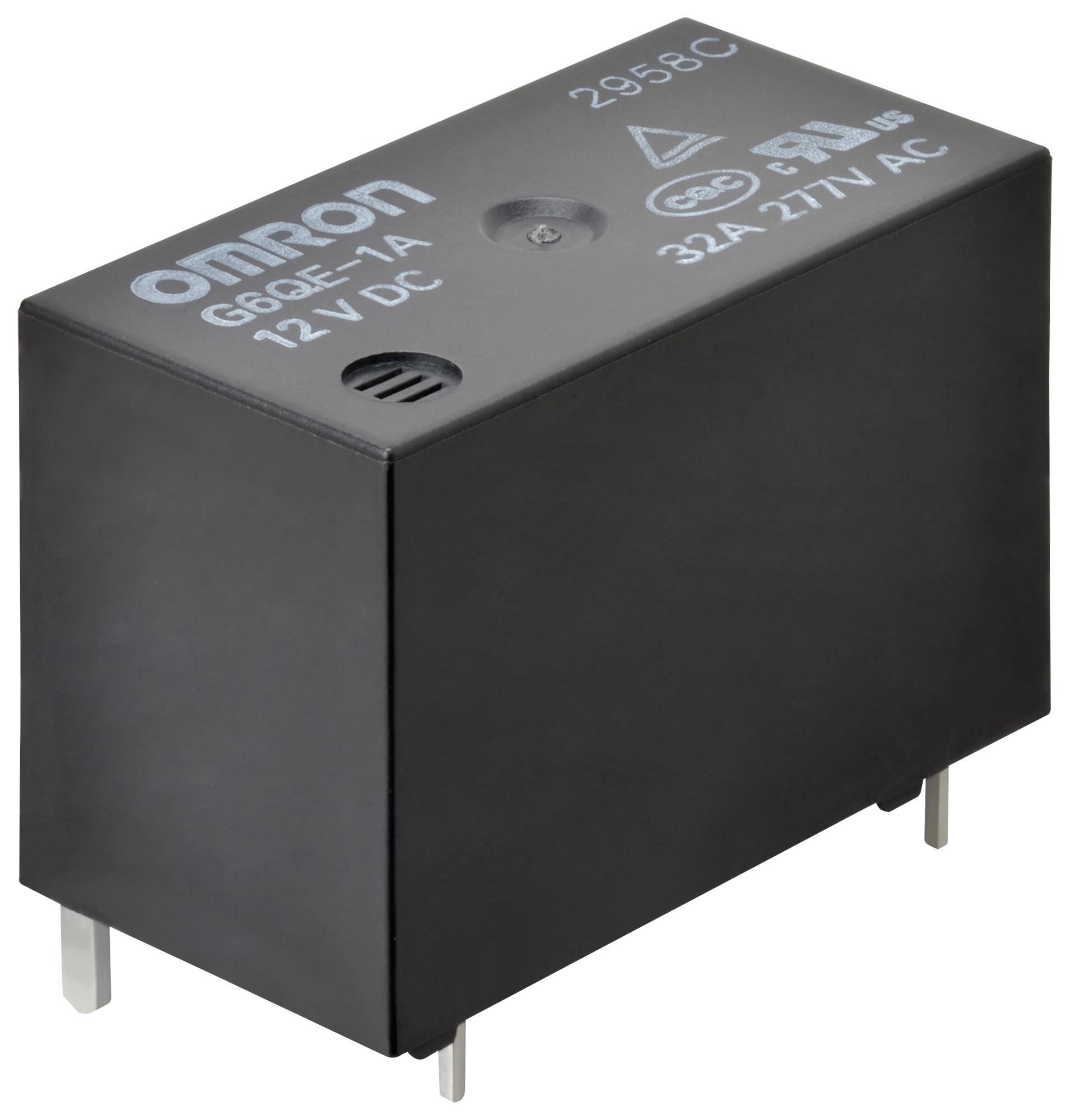

Buy the Buy Omron G6QE Power Relay Part Number G6QE1ADC24 Online
Purchase the Omron G6QE Power Relay online now for dependable switching of high-current loads up to 32A at 250 VAC. Compact and low-profile, it features a high dielectric strength of 10 kV impulse withstand voltage, ensuring safety and durability. Designed for industrial machinery, HVAC, and home appliances, this relay consumes only about 172 mW at 35% holding voltage, reducing energy costs. Certified to UL, EN, CQC, and RoHS standards, it offers 50,000 operational cycles, making it a reliable choice for demanding applications.
Order your Omron Series G6QE G6QE1ADC24 relay today and ensure reliable high-current switching for your industrial or home projects.
Frequently Asked Questions
Where can I buy OMRON G6QE1ADC24?
You can click on the BUY or RFQ button to purchase G6QE1ADC24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G6QE1ADC24?
You can download the G6QE1ADC24 datasheet or visit the OMRON website for support.
Who is the manufacturer of G6QE1ADC24?
OMRON
