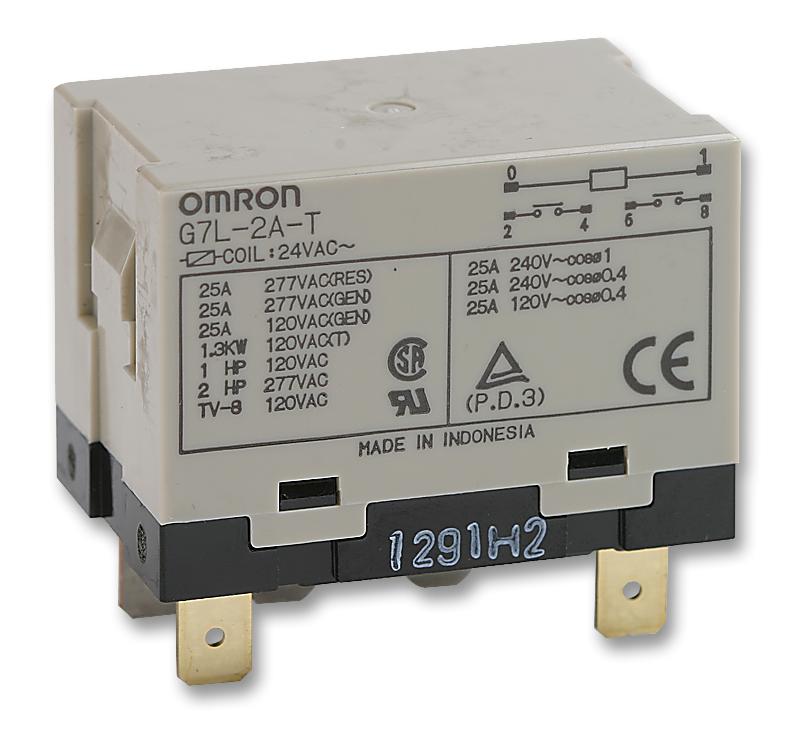

OMRON G7L2ATDC24 Power Relay
The Omron G7L series are PCB-mounted electrical relays designed for high-capacity switching applications. They feature high dielectric strength and resist momentary voltage drops, ensuring reliable operation during transient conditions. Available in single pole and double pole configurations, suitable for compressors, controllers, power management, lighting, and motor drivers. Compact for maximum switching power, especially for inductive loads, with flame-resistant UL94V-0 materials. Connection options include quick connect, screw, PCB, and DIN track mounting, with certifications like UL, CSA, TUV, and IEC950. Contact gap of 3mm enhances safety; coil voltages include DC and AC types. These relays switch currents up to 30A at 250VAC, ideal for industrial and automation applications.
OMRON G7L2ATDC24 Power Relay Specifications:
- Coil Voltage: DC 6V, 12V, 24V, 48V, 100V; AC 12VAC, 24VAC, 100VAC, 120VAC, 200VAC, 240VAC
- Contact Resistance: ≤100 mΩ
- Contact Configuration: SPST-NO, DPST-NO
- Rated Currents: Up to 30A at 250VAC, 25A at 240VAC, or 20A at 220VAC
- Contact Gap: 3mm
- Dielectric Strength: 4,000 VAC between coil and contacts, 7,000 VAC between contacts
- Insulation Resistance: ≥3,000 MΩ at 500 VDC
- Maximum Switching Voltage: 7250 VAC
- Operating Time: ≤30 ms, Release Time: ≤30 ms
- Coil Power Consumption: 1.7 W (rated voltage)
- Mounting Methods: Quick connect, screw terminals, PCB, DIN track mounting
- Enclosure Materials: Flame-resistant UL94V-0 materials
- Standards and Certifications: UL Recognized, CSA, TUV, IEC950, TUV EN/IEC, UL508, IEC61810-1
Buy the Omron Series G7L Power Relay High-Capacity Part Number G7L2ATDC24
Order the Omron G7L power relay online today and ensure dependable operation in your industrial control system. With various connection options and high current ratings, it’s ideal for motor control, lighting, and power switching applications. Built with flame-resistant materials and conforming to UL, CSA, TUV standards, this relay guarantees safety and durability. Its compact size, versatile mounting choices including DIN track and PCB, and wide coil voltage range make it suitable for automation, HVAC, and electronic device control. Purchase now for reliable performance in demanding environments.
Buy Omron G7L power relay now and experience unmatched reliability and performance for industrial power management and automation.
Frequently Asked Questions
Where can I buy OMRON G7L2ATDC24?
You can click on the BUY or RFQ button to purchase G7L2ATDC24 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G7L2ATDC24?
You can download the G7L2ATDC24 datasheet or visit the OMRON website for support.
Who is the manufacturer of G7L2ATDC24?
OMRON
