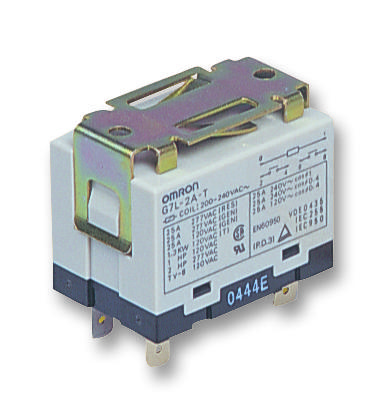

OMRON G7L2ATDC6 Industrial Power Relay
The G7L series is a high-capacity, high-dielectric-strength relay designed for industrial automation and power switching applications. It features wide-range AC coils handling 100 to 120 or 200 to 240 VAC at 50/60 Hz, with a flame-resistant UL94V-0 insulation material. Suitable for inductive loads such as motors and heaters, the relay offers quick-connect, screw, and PCB terminals, as well as DIN track mounting options. Certified by UL, CSA, TUV, and IEC950, it ensures reliable switching with a contact gap of 3mm, and is ideal for control circuits, machinery, and automation systems.
OMRON G7L2ATDC6 Industrial Power Relay Specifications:
- Coil Voltage: 100 to 120 VAC or 200 to 240 VAC at 50/60 Hz
- Contact Form: SPST-NO, DPST-NO
- Maximum Rated Current: 25 A to 30 A depending on model
- Contact Resistance: 1 mΩ max
- Insulation Resistance: 3,000 MΩ min
- Operating Time: 30 ms max
- Release Time: 10 ms max
- Environmental Ratings: UL, CSA, TUV, IEC950 conforming
- Flame Resistance: UL94V-0
- Contact Gap: 3 mm
- Weight: Approximately 100 g
- Mounting Options: Quick-connect, screw, PCB, DIN track
- Certifications: UL Recognized, CSA, TUV, IEC950
- Operating Temperature: -30°C to +50°C
- Vibration Resistance: 10-55 Hz, amplitude 1.5 mm
- Shock Resistance: 1000 m/s²
- Endurance: 1,800,000 operations at rated load
Buy the Omron G7L2ATDC6 – Reliable Industrial Power Relay for Automation Systems
Purchase the Omron G7L2ATDC6 reliable industrial power relay online today. Designed for high-capacity switching of inductive loads, it features wide-range AC coils, UL/CSA/TUV certifications, and multiple mounting options including DIN track and PCB terminals. Its flame-resistant UL94V-0 insulation materials ensure safety in demanding environments. Ideal for control circuits, machinery, and automation systems, this relay guarantees long-term durability with endurance over 1.8 million operations. Buy now to ensure reliable performance in your industrial applications.
Get Omron G7L2ATDC6 today—built for precision and long-lasting durability in industrial automation and power switching.
Frequently Asked Questions
Where can I buy OMRON G7L2ATDC6?
You can click on the BUY or RFQ button to purchase G7L2ATDC6 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G7L2ATDC6?
You can download the G7L2ATDC6 datasheet or visit the OMRON website for support.
Who is the manufacturer of G7L2ATDC6?
OMRON
