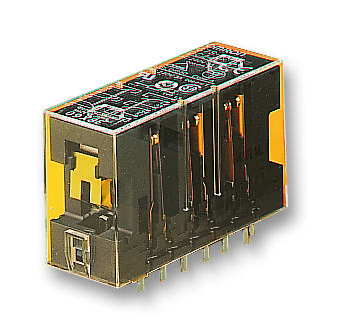

OMRON G7S4A2BEDC24 Industrial Relay
The G7S relay with forcibly guided contacts conforms to EN50205 Class A and is VDE certified, ensuring safe electromechanical operation suitable for machinery interlocking. It features a robust design supporting CE marking, with track-mounting and back-mounting sockets available for versatile installation. Rated for 24 VDC with a coil resistance of 800 ohms and a maximum coil power consumption of approximately 0.8 W, it handles resistive loads up to 3 A at 240 VAC and 1 A at 24 VDC. Its high durability, dielectric strength, and insulation resistance make it ideal for industrial automation and control systems, supporting safety standards like UL508, CSA C22.2 No. 14, and EN61810-1.
OMRON G7S4A2BEDC24 Industrial Relay Specifications:
- Coil Rated Voltage: 24 VDC
- Coil Resistance: 800 ohms
- Rated Current at Coil: 30 mA
- Coil Power Consumption: Approx. 0.8 W
- Contacts: 4PST-NO or 3PST-NC
- Rated Load: 240 VAC 3 A, 24 VDC 3 A
- Maximum Switching Voltage: 250 VAC, 24 VDC
- Maximum Switching Current: 6A
- Contact Resistance: 100 mΩ max.
- Operating Time: 50 ms max.
- Release Time: 50 ms max.
- Dielectric Strength: 2,500 VAC for 1 min.
- Insulation Resistance: 1,000 MΩ min.
- Ambient Temperature: -25°C to 70°C
- Ambient Humidity: 5% to 85%
- Weight: Approx. 65 g
Buy the Buy Omron G7S Relay Part Number G7S4A2BEDC24 Online
Order the Omron G7S relay with forcibly guided contacts online today to ensure safe and reliable control in your machinery. This high-quality relay offers excellent durability, precise switching, and compliance with international safety standards like UL508 and EN standards. Its robust design supports heavy loads up to 3 A at 240 VAC or 24 VDC, making it suitable for automation systems, interlocking circuits, and industrial controls. Enjoy fast delivery and expert support for your automation needs.
Get Omron G7S4A2BEDC24 relay today—engineered for safety, durability, and reliable machine control in industrial environments.
