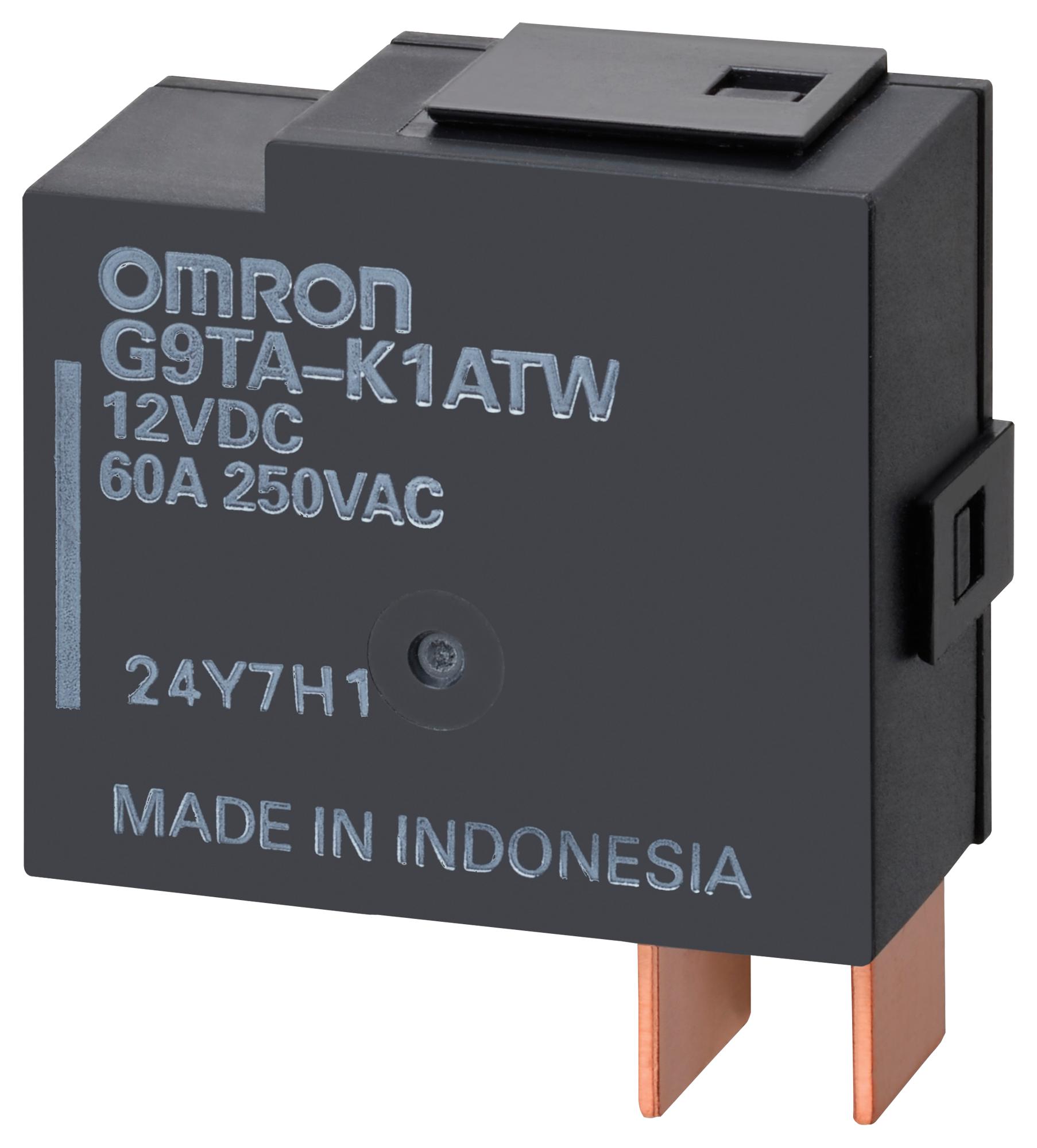

OMRON G9TAK1ATWDC12 Power Latching Relay
The G9TA series is a reliable AC power latching relay designed for high-current switching applications, supporting up to 60 A. Compact and robust, these relays feature high magnetic latching force for vibration resistance, low contact resistance, and RoHS compliance. Available in single and double-winding configurations with various terminals, they are suitable for smart meters, PV inverters, and lighting control systems. Rated for operating temperatures from -40°C to +85°C, these relays ensure long-lasting performance in industrial environments with electrical durability of 5,000 operations. Precise design minimizes power consumption and enhances safety.
OMRON G9TAK1ATWDC12 Power Latching Relay Specifications:
- Contact Resistance: 2 mΩ max.
- Rated Current: 60 A at 250 VAC
- Rated Voltage: 12 V DC (coil)
- Coil Resistance: 217 Ω at 23°C
- Set Time: 20-30 ms
- Reset Time: 20-30 ms
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 4,000 VAC between coil and contacts
- Vibration Resistance: 10-150 Hz, amplitude 0.075 mm
- Shock Resistance: 100 m/s² (malfunction), 1,000 m/s² (destruction)
- Electrical Life: 5,000 operations (resistive and inductive load)
- Ambient Temperature: -40°C to +85°C
- Weight: Approx. 42 g
- Dimensions: Length 37.1 mm (varies by model), width approx. 33.5-50.05 mm, height approx. 30-37 mm
Buy the OMRON G9TA – Reliable AC Power Latching Relay for Industrial Applications
Experience the reliability and efficiency of the OMRON G9TA series power latching relay, supporting up to 60 A. Its compact design and vibration resistance make it ideal for industrial control, smart meters, PV inverters, and lighting systems. Engineered for long lifespan and stable operation from -40°C to +85°C, this relay ensures dependable switching in demanding environments. Easy to install with secure terminals, it offers low contact resistance, high dielectric strength, and excellent durability—perfect for maintaining safety and operational integrity in your automation solutions. Buy online now to enhance your system’s reliability.
Get OMRON G9TA K1ATW today—built for precision, high-current switching, and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy OMRON G9TAK1ATWDC12?
You can click on the BUY or RFQ button to purchase G9TAK1ATWDC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G9TAK1ATWDC12?
You can download the G9TAK1ATWDC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of G9TAK1ATWDC12?
OMRON
