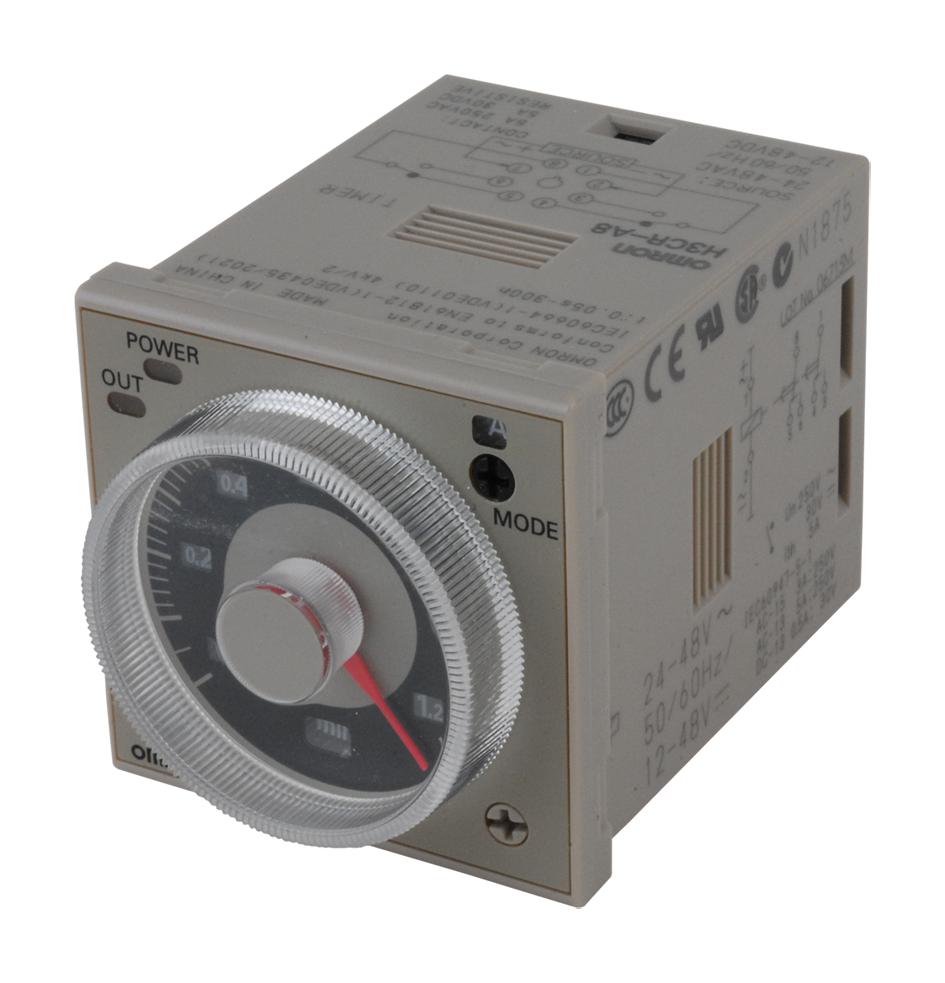

OMRON H3CRA82448VAC124DC48 Multi-function Timer
The H3CR-A8 series is a versatile solid-state timer with plug-in terminals, supporting AC/DC power from 24 to 48 VAC and 12 to 24 VDC. It features a single changeover relay output and operates in five modes including A, B, B2, E, and J, with a timing range from 0.05 seconds to 300 hours. The timer ensures easy sequence checking with instantaneous outputs at zero setting. It is designed for ecological energy savings, adheres to safety standards like UL, CSA, NK, LR, EN 61812-1, and CE, and includes no-voltage NPN input support, making it suitable for automation, process control, and timing applications.
OMRON H3CRA82448VAC124DC48 Multi-function Timer Specifications:
- Operating Modes: A, B, B2, E, J
- Support Power Supply Range: 24-48 VAC/VDC, 12-24 VDC
- Timing Range: 0.05 seconds to 300 hours
- Output Type: Single changeover relay (SPDT)
- Number of Pins: 8-pin plug-in type
- Standards Compliance: UL 508, CSA C22.2 No.14, NK, LR, EN 61812-1, CE Marking
- Input Type: No-voltage (NPN), with 1,200 pF max capacitance between input lines
- Power Consumption: Approx. 2.0 VA at 240 VAC, approx. 0.8 W at 24 VAC
- Operating Temperature: -10°C to 55°C
- Protection Class: IP40
- Dimensions: 44.8mm x 44.8mm x height varies with model
- Features: Instantaneous outputs for zero-setting, ecological low power consumption
Buy the Buy Omron H3CR-A8 Series Part Number H3CRA82448VAC124DC48 Online
Purchase the Omron H3CR-A8 series timer online for reliable, energy-efficient operation in automation and process control applications. This multi-mode timer supports a wide AC/DC power range of 24 to 48 VAC and 12 to 24 VDC, providing flexible compatibility. With five operating modes including A, B, B2, E, and J, it offers timing from 0.05 seconds up to 300 hours. Its compact 8-pin design ensures easy integration, while compliance with standards such as UL, CSA, and EN 61812-1 guarantees safety and quality. Perfect for providing accurate, repeatable timing in industrial environments.
Get Omron H3CR-A8 timer today—designed for precise timing and energy-efficient operation in automation systems.
Frequently Asked Questions
Where can I buy OMRON H3CRA82448VAC124DC48?
You can click on the BUY or RFQ button to purchase H3CRA82448VAC124DC48 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part H3CRA82448VAC124DC48?
You can download the H3CRA82448VAC124DC48 datasheet or visit the OMRON website for support.
Who is the manufacturer of H3CRA82448VAC124DC48?
OMRON
