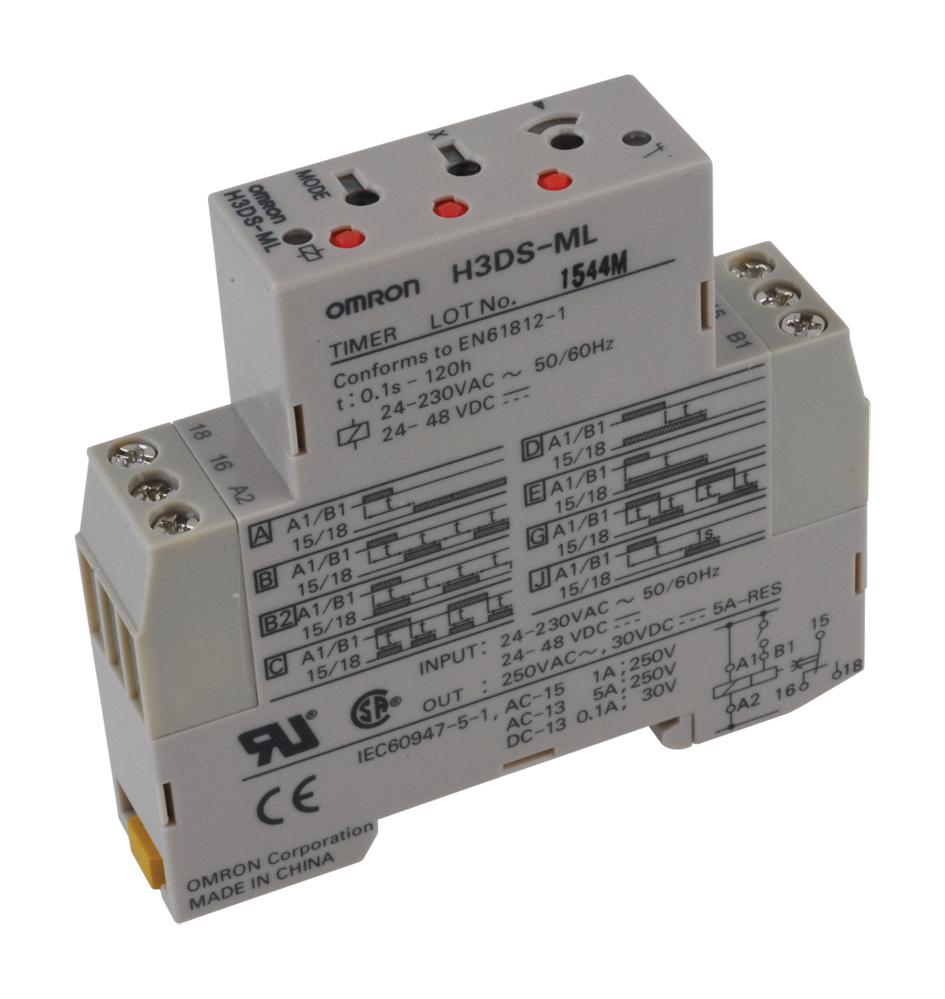

OMRON H3DSML Industrial Timer
The H3DS-ML from Omron is a DIN rail-mounted timer with a standard width of 17.5mm, featuring a smart locking mechanism. It supports power supply voltages from 24VAC to 230VAC (50/60 Hz) and 24VDC to 48VDC. The device uses screw terminal connections and offers eight different operating modes (A, B, B2, C, D, E, G, and J). It includes a Single-Pole Double-Throw (SPDT) control output and is approved to UL508, CSA C22.2 No.14 standards, as well as compliant with EN61812-1, IEC 60664-1 (4 kV/2), and VDE0106/P100. The output category complies with IEC60947-5-1. It operates reliably within an ambient humidity range of 35% to 85%. The case is light gray (5Y7/1) in color, with an IP30 degree of protection (terminal block IP20). The device weighs approximately 70 grams. It is suitable for automation, process control, and industrial applications.
OMRON H3DSML Industrial Timer Specifications:
- Power Supply Voltage: 24VAC to 230VAC (50/60Hz), 24VDC to 48VDC
- Control Output: SPDT relay, 5A at 250VAC
- Operating Modes: A, B, B2, C, D, E, G, J
- Power Consumption: Approx. 1.3 W at 48VDC, 2.7 W at 230VAC
- Control input: Voltage input compatible with PNP/NPN signals
- Mounting: DIN rail, 17.5mm width
- Enclosure: Light gray (5Y7/1), IP30 (terminal block: IP20)
- Weight: Approximately 70 grams
- Environmental Conditions: 35%-85% humidity, 10°C to 55°C operating temperature
- Standards: UL508, CSA C22.2 No.14, EN61812-1, IEC 60664-1 (4 kV/2), VDE0106/P100
- Construction: Solid-state, electronic timing
- Connections: Screw terminal or screw-less clamp, clamps two 2.5 mm² max.
- Dimensions: 17.5 mm (width) x height and depth as per datasheet
- Certifications: UL, CSA, CE compliant
Buy the Buy Omron H3DS-ML Part Number H3DSML Online
Enhance your automation systems with the Omron H3DS-ML DIN rail timer. Featuring eight operational modes, support for 24–230VAC/DC power, and easy screw terminal connections, this lightweight device is perfect for process control and industrial applications. Its compact design ensures seamless integration on DIN rails, while its robust standards guarantee safety and durability. Whether for machine automation or control panels, the H3DS-ML provides precise timing control with trusted Omron quality. Order online today to streamline your operations with this versatile and reliable timer.
Buy Omron H3DS-ML now and experience reliable industrial automation with versatile multi-mode timer capabilities.
Frequently Asked Questions
Where can I buy OMRON H3DSML?
You can click on the BUY or RFQ button to purchase H3DSML from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part H3DSML?
You can download the H3DSML datasheet or visit the OMRON website for support.
Who is the manufacturer of H3DSML?
OMRON
